NOTE: Items listed
here specifically pertain to '73-'79 Ford F100/350 trucks,
but may have other
applications (other Ford car/van/truck models) that are not included.
All part numbers and
specifications are as reported in the 1973-1979 Ford
Truck Master Parts Catalog unless
otherwise noted. |
Image from the 1973 Ford "Fun Fleet"
recreational vehicles brochure. |
Pickup Box Cover
(w/o sliding windows)
1973-1979 F100/350
Body Type 99 - 8-ft. box |
Sliding Window Parts
(Pickup Box Cover Side)
1973-1979 F100/350
Body Type 99 - 8' Box |
Liftgate Parts
(Pickup Box Cover)
1973-1979 F100/350
Body Type 99 - 8' Box |
Pickup-up Box Cover Reinforcement Kit
and Related Parts
1978-1979 F100/350 |
| 00012 -
Reinforcement Kit (Pickup Box Cover) |
| |
78/79 F100/350 |
D8TZ 9900012-A |
Mandatory usage required when
installing pickup box cover |
| 00064 -
Hook (Pickup Box Tie Down) |
| |
73/79 F100/350 (99) |
D3TZ 9900064-A |
(8 req'd) |
| |
|
376903-S40 |
(MM-120-BF) - nut - rivet -
1/4"-20 x 1/2" (16 req'd) |
| |
|
373363-S |
(BB-604) - screw - oval head
- 1/4"-20 x 1-1/8" (16 req'd) |
| 00068-9 -
Seal (Pickup Box Cover to Body Side) |
| |
73/79 F100/350 (99) |
D3TZ 9900068-A |
(RH) |
| |
|
D3TZ 9900069-A |
(LH) |
| 00070 -
Bolt (Pickup Box Cover Hold Down) |
| |
73/79 F100/350 (99)
73/79 F350 (Crew Cab) |
D3TZ 9900070-B |
3/8"-16 |
| 00071 -
Reinforcement (Pickup Box Cover Hold Down
Bolt) |
| |
73/79 F100/350 (99) |
D3TZ 9900071-A |
|
| 00074 -
Seal (Pickup Box Cover to Body Front) |
| |
73/79 F100/350 (99) |
D3TZ 9900074-A |
|
| 03288 -
Weatherstrip (Pickup Box Cover Front Glass) |
| |
73/74 F100/350 (99)
77/78 F100/350 (99) Before Ser. BA0,001 |
D3TZ 9903288-A |
|
| |
75/76 F100/350 (99) |
D5TZ 9903288-A |
|
| |
78/79 F100/350 (99) From Ser.
BA0,001 |
D8TZ 9903288-A |
|
03294 -
Retainer (Windshield Weatherstrip Lower)
(also serviced in Group 00012) |
| |
78/79 F100/350 - w/pickup box
cover |
D8TZ 9803294-A |
(1) |
| 13466 -
Bulb (Miniature) |
| |
73/79 |
D0AZ 13466-A |
Pickup box cover lamp
Industry Number - 105 |
| 13A576 -
Wiring Assembly (Camper Trailer Lamp Feed) |
| |
73/79 F100/350 (99) -
w/pickup box cover |
D3TZ 13A576-A |
#D3TB
13A576-AA, D4TB 13A576-AA
interior lamp in box cover feed - also serviced in (13A576)
kit |
| 13A576 -
Utility Lamp Wiring - Kit |
| |
74/79 F100/350 (99) -
w/pickup box cover |
D4TZ 13A576-A |
Used for interior lamp in box
cover. Consists of:
- (1) D3TZ 13A576-A - wire assembly
- (5) C3SZ 14A163-B - retainer
- (1) 40927-S36 - screw - #10-24
- (2) 95873-S - strap
- (1) instruction sheet |
| 13A709 -
Wiring Assembly (Interior Lamp) |
| |
73/79 F100/350 (99) -
w/pickup box cover |
D4TZ 13A709-C |
#D3TB
14334-CA, CB #D4TB
14334-CA
interior lamp in box cover |
| 13783 -
Lens (Dome Lamp) |
| |
73/79 F100/350 (99) -
w/pickup box cover |
C5AZ 13783-E |
(2) mounting holes & (1)
switch hole - interior lamp in box cover |
| |
75/79 E100/350 - exc. Leisure
Van |
Use with dome or cargo lamp
(with switch-on lamp) |
| 13786 -
Body and Socket Assembly (Interior Lamp) |
| |
73/79 F100/350 (99) -
w/pickup box cover |
D3TZ 13786-A |
#
D3TB 13786-AA - interior lamp in box cover incl. switch |
| 13797 -
(unknown nomenclature) |
 |

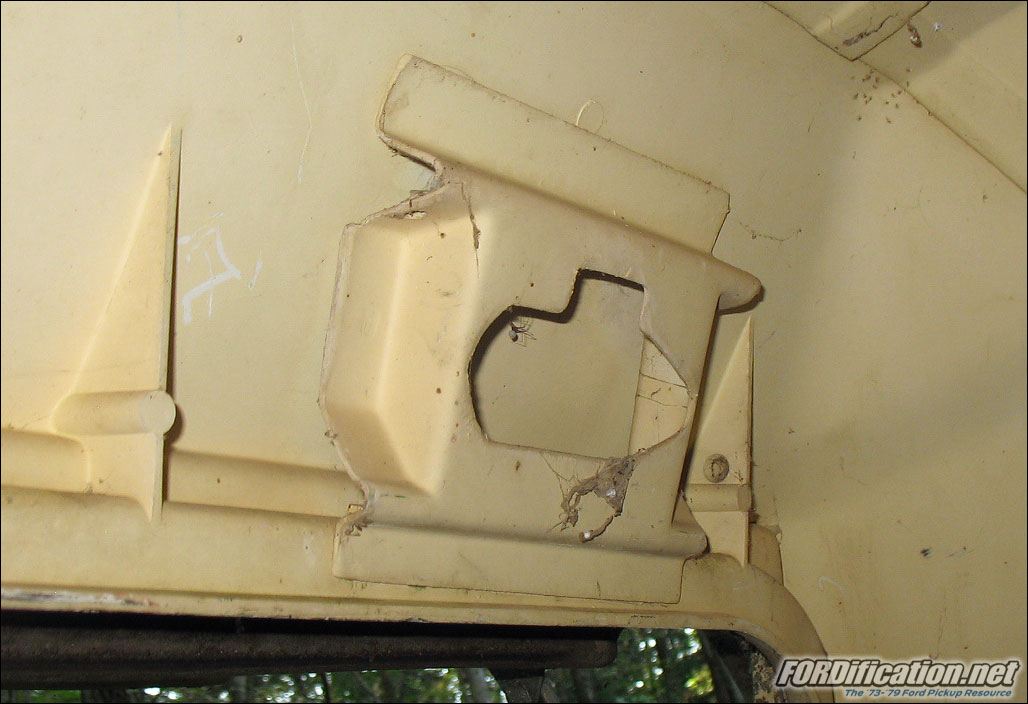

ADMIN NOTE: This is a plastic
dome light mount which is glued onto the rear box cover
wall, above the rear door. Click the camera icon at left to
see a picture of this mount, as installed in a '78 box
cover. |
16154-5 -
Fender Apron Reinforcement (Front)
(also serviced in Group 00012) |
| |
78/79 F100/350 |
D8TZ 16154-A |
R.H. |
|
D8TZ 16155-A |
L.H. |
16C804-5 -
Bracket (Hood Stop)
(also serviced in Group 00012) |
| |
78/79 F100/350 |
D8TZ 16C804-A |
R.H. |
|
D8TZ 16C805-A |
L.H. |
16C808 -
Bracket (Hood Stop Center)
(also serviced in Group 00012) |
| |
78/79 F100/350 |
D8TZ 16C808-A |
|
| 16C810 -
Plate (Hood Stop Center) |
| |
78/79 F100/350 |
D8TZ 16C810-A |
|
| 19627 -
Foam (Air Conditioner Water Impingement) |
| |
73/79 F100/250 - built-in A/C
(dealer installed) |
D3TZ 19627-A |
12" X 24" X 1/8" |
| 21952 -
Retainer (Door Latch Rod) |
| |
73/79 F100/350
(99) |
C5AZ 6221952-A |
Liftgate - pickup box cover |
|
C5AZ 6221954-A |
Liftgate - pickup box cover |
| 280C30-1 -
Reinforcement (Pickup Box Cover Side Panel Rear) |
| |
73/79 F100/350
(99) |
D3TZ 99280C30-A |
R.H. |
|
D3TZ 99280C31-A |
L.H. |
| 290A66-7 -
Moulding (Pickup Box Cover Side Panel Window) |
| |
73/77 F100/350
(99) - 133" or 140" W/B |
D3TZ 99290A66-A |
R.H. |
|
D3TZ 99290A67-A |
L.H. |
| |
78/79 F100/350 (99) |
D8TZ 99290A66-A |
R.H. and L.H. |
| 297A32 -
Bar (Pickup Box Cover Side Glass Division) |
| |
73/79 F100/350 (99) - w/fixed
windows |
D3TZ 99297A32-A |
|
| 297A36 -
Glass (Pickup Box Cover Side Window) |
| |
|
CLEAR |
TINTED |
NAGS NO. |
QTY. |
| |
73/74 F100/350 (99) - w/fixed
windows |
Not available |
D3TZ 99297A36-A |
1118T |
4 |
| |
75/79 F100/350 (99) - w/fixed
windows |
Not available |
D5TZ 99297A36-A |
1130 |
2 |
| |
73/77 F100/350 (99) -
w/sliding windows
(Before Ser. 080,001) |
Not available |
D3TZ 99297A36-B |
1117 |
4 |
| |
77/79 F100/350 (99) -
w/sliding windows
(From Ser. 080,001) |
Not available |
D7TZ 99297A36-A |
1138 |
4 |
| 297A38 -
Stop (Pickup Box Cover Side Glass) |
| |
73/79 F100/350 (99) -
w/sliding windows |
D3TZ 99297A38-A |
|
| 297A40-1 -
Screen (Pickup Box Cover Side Glass) |
| |
73/79 F100/350
(99) - w/sliding windows |
D3TZ 99297A40-A |
(R.H.) |
|
D3TZ 99297A41-A |
(L.H.) |
| 297A42 -
Retainer (Pickup Box Cover Side Glass Screen) |
| |
73/79 F100/350 (99) |
D3TZ 99297A42-A |
(R.H. and L.H.) 12 req'd |
| 297A44 -
Run (Pickup Box Cover Side Glass) |
| |
73/78 F100/350
(99) - w/sliding windows
(Before Ser. BA0,001) |
D3TZ 99297A44-B |
R.H. and L.H. - lower (2) |
|
D3TZ 99297A44-C |
R.H. and L.H. - upper (2) |
| |
78/79 f100/350
(99) - w/sliding windows
(From Ser. BA0,001 |
D8TZ 99297A44-A |
R.H. and L.H. - lower (2) |
|
D3TZ 99297A44-C |
R.H. and L.H. - upper (2) |
| 297A46-7 -
Retainer (Pickup Box Cover Side Glass Run) |
| |
73/79 F100/350
(99) - w/sliding windows |
D8TZ 99297A46-A |
R.H. |
|
D8TZ 99297A47-A |
L.H. |
| 297A48 |
| Refer to Group 19627 |
| 297A54 -
Cover (Pickup Box Cover Side Glass Latch Opening) |
| |
73/77 F100/350 (99) -
w/sliding windows
(Before Ser. 080,001) |
D3TZ 99297A54-B |
R.H. and L.H. |
| |
77/79 F100/350 (99) -
w/sliding windows
(From Ser. 08,001) |
D7TZ 99297A54-A |
R.H. and L.H. |
| 297A56 -
Handle (Pickup Box Cover Side Glass Latch) |
| |
73/77 F100/350 (99) -
w/sliding windows
(Before Ser. 080,001) |
D4TZ 99297A56-A |
R.H. and L.H. |
| |
77/79 F100/350 (99) -
w/sliding windows
(From Ser. 080,001) |
D7TZ 99297A56-A |
R.H. and L.H. |
| 297A66 -
Spring (Pickup Box Cover Side Glass Latch) |
| |
73/79 F100/350 (99) -
w/sliding windows |
|
Serviced in 297A56 |
| 298A10 -
Weatherstrip (Pickup Box Cover Side Glass) |
| |
73/79 F100/350 (99) - w/fixed
windows |
D3TZ 99298A10-A |
(2) |
| |
73/77 F100/350 (99) -
w/sliding windows |
D3TZ 99298A10-B |
Overall length 165" (2) |
| |
73/77 F100/350 (99) -
w/sliding windows |
D3TZ 9929810-C |
13-19/32" long (4) |
| |
78/79 F100/350 (99) -
w/sliding windows
(From Ser. BA0,001) |
D8TZ 99298A10-B |
(2) |
| 298A12 -
Retainer (Pickup Box Cover Side Glass Weatherstrip) |
| |
73/79 F100/350 (99) -
w/sliding windows |
D3TZ 99298A12-A |
(2) |
| 40010 -
Door Assembly (Back) - Less paint and trim |
| |
73/79 F100/350 (99) |
DETZ 9940010-B |
Paint to match |
| 404A06 -
Weatherstrip (Pickup Box Cover Liftgate Lower) |
| |
78/79 F100/350 |
D8TZ 99404A06-A |
|
| 404A07 -
Weatherstrip (Pickup Box Cover Liftgate
Lower) |
| |
73/78 F100/350 (99) Before
Ser. AJ0,001 |
D3TZ 99404A07-A |
|
| |
78/79 F100/350 From Ser.
AJ,001 |
D8TZ 99404A07-A |
|
| 404A10 -
Prop (Pickup Box Cover Liftgate) |
| |
73/79 F100/350 (99) |
D3TZ 99404A10-A |
|
| 404B32 -
Plate (Pickup Box Cover Liftgate Handle
Mounting) |
| |
73/79 F100/350 (99) |
D3TZ 99404B32-A |
|
| 404B36 -
Reinforcement (Pickup Box Cover Liftgate Outside Panel) |
| |
73/79 F100/350 (99) |
D3TZ 99404B36-A |
Located at latch |
| 404A38-9 -
Rod (Pickup Box Cover Liftgate Latch Actuating) |
| |
73/79 F100/350
(99) |
D3TZ 99404A38-A |
R.H. |
|
D3TZ 99404A39-A |
L.H. |
| 404A42 -
Striker (Pickup Box Cover Liftgate Latch) |
| |
73/79 F100/350 (99) |
D2FZ 73404A42-A |
|
| 404B48 -
Shim (Pickup Box Cover Liftgate Hinge) |
| |
73/79 F100/350 (99) |
D3TZ 99404B48-A |
|
| 404A50 -
Bracket (Pickup Box Cover Liftgate Latch Release Lever) |
| |
73/79 F100/350 (99) |
D3TZ 99404A50-A |
|
| 42006 -
Glass (Window) |
| |
|
CLEAR |
TINTED |
NAGS NO. |
DESCRIPTION |
| |
73/77 F100/500
(81) - w/sliding back window
78/79 F100/350 (81) - w/sliding back window
73/79 F100/350 (99) - sliding front window on pickup box
cover |
D3TZ 1042006-C |
D4TZ 1042006-A |
4590T |
R.H. and L.H. |
|
D3TZ 1042006-D |
D4TZ1042006-B |
2642TR |
R.H. - center - incl.
frame |
|
D3TZ 1042006-E |
D4TZ 1042006-G |
2642TL |
L.H. - center - incl.
frame |
| |
73/79 F100/350
(99) - fixed back window on pickup box cover |
D3TZ 1042006-F |
D3TZ 1042006-G |
1115T |
Front |
|
Not available |
D3TZ 1042006-A |
1119T |
Rear |
| 42024 -
Weatherstrip (Back Window Glass) |
| |
73/77 F100/500 (81A, B Reg.
and Super Cab) - w/fixed back window |
D3TZ 1042084-A |
|
| |
78/79 F100/350 (81A Reg. and
Super Cab) - w/fixed back window |
|
| |
73/77 F100/500 (81E Reg. and
Super Cab) - w/sliding back window |
|
| |
78/79 F100/350 (81E Reg. and
Super Cab) - w/sliding back window |
|
| |
73/79 F100/350 (99) - sliding
front window on pickup box cover |
|
| 42430-1 -
Moulding (Back Window Outside Top) |
| |
77/79 F100/350 (SuperCab)
w/stationary window
(From Ser. 080,001) |
D7TZ 1042430-A |
Quarter window - cut to
fit |
| |
78/79 F100/350 - w/pickup box
cover |
Cut to fit |
| 42900 -
Hinge (Pickup Box Cover Liftgate) |
| |
73/79 F100/350 (99) |
D3TZ 9942900-A |
|
| 42942 -
Reinforcement (Pickup Box Cover Liftgate Hinge) |
| |
73/79 F100/350 (99) |
D3TZ 9942942-A |
On body |
| 43102 -
Latch Assembly (Pickup Box Cover Liftgate) |
| |
73/79 F100/350 (99) |
D3TZ 9943102-A |
|
| 431B02 -
Retainer (Pickup Box Cover Liftgate Latch) |
| |
73/79 F100/350 (99) |
D3TZ 99431B02-A |
|
| 43400 -
Handle Assembly |
| |
73/79 F100/350
(99) |
D3TZ 9943400-B |
Liftgate - pickup box cover |
|
385273-S37 |
(BB-894) - bolt (handle assy.
to liftgate) - square neck - No. 10-24 x 15/16" |
|
45326-S2 |
 Nut
and washer - No. 10-24 |
| 43426 -
Handle (Pickup Box Cover Liftgate Inside) |
| |
73/79 F100/350 (99) |
D3TZ 9943426-A |
|
| 43539 -
Pad (Pickup Box Cover Liftgate Handle) |
| |
73/79 F100/350 (99) |
D3TZ 9943539-A |
|
| 50020 -
Vent (Pickup Box Cover Roof) |
| |
73/79 F100/350 (99) -
w/sliding side windows |
D3TZ 9950020-A |
paint to match |
| 517A56 -
Ornament (Pickup Box Cover Side) |
| |
73/79 F100/350 (99) |
D3TZ 99517A56-A |
(2 req'd) |
| # - Identification marking |
| |
|
Symbol (in the text listings or exploded-view diagram)
indicates part is not supplied for service due to the
following: |
| |
a. Part is superseded and
replaced as indicated in the description column of text
b. Part can be improvised as indicated in the description
column of text
c. Due to it's function there would be little or no demand |
|
 |
|
|
