Instrument Panel





NOTE: Items listed here specifically pertain to '73-'79 Ford F100/350 trucks, but may have other applications (other Ford car/van/truck models) that are not included.

All part numbers and specifications are as reported in the 1973-1979 Ford Truck Master Parts Catalog (Oct. '79)unless otherwise noted.


Instrument Cluster and Related Parts
1973-1979 F100/350 (81)
with warning lights


Instrument Cluster and Related Parts

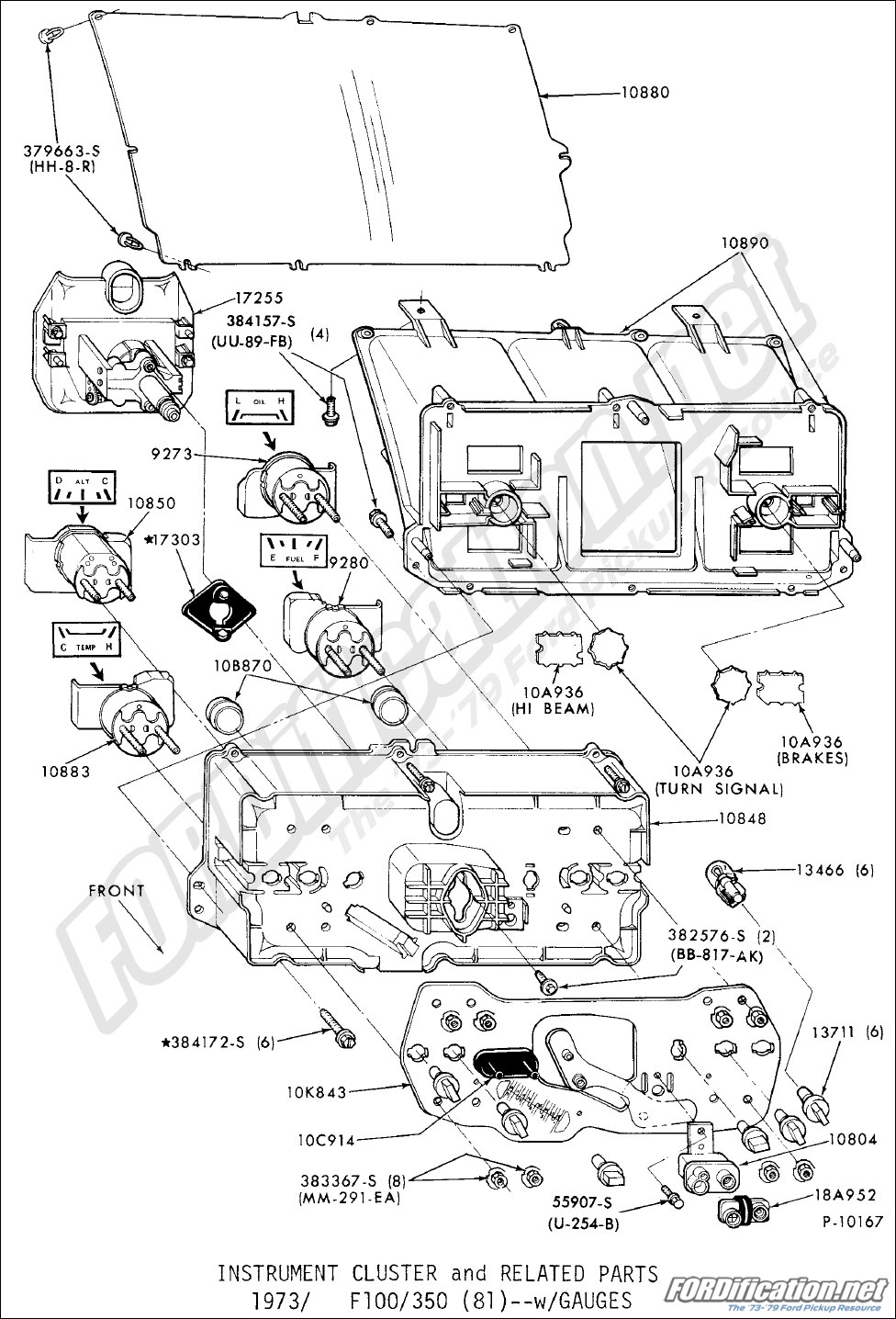

1973-1979 F100/350 (81)
with gauges


Instrument Cluster and Related Parts
1973-1979 F350 and

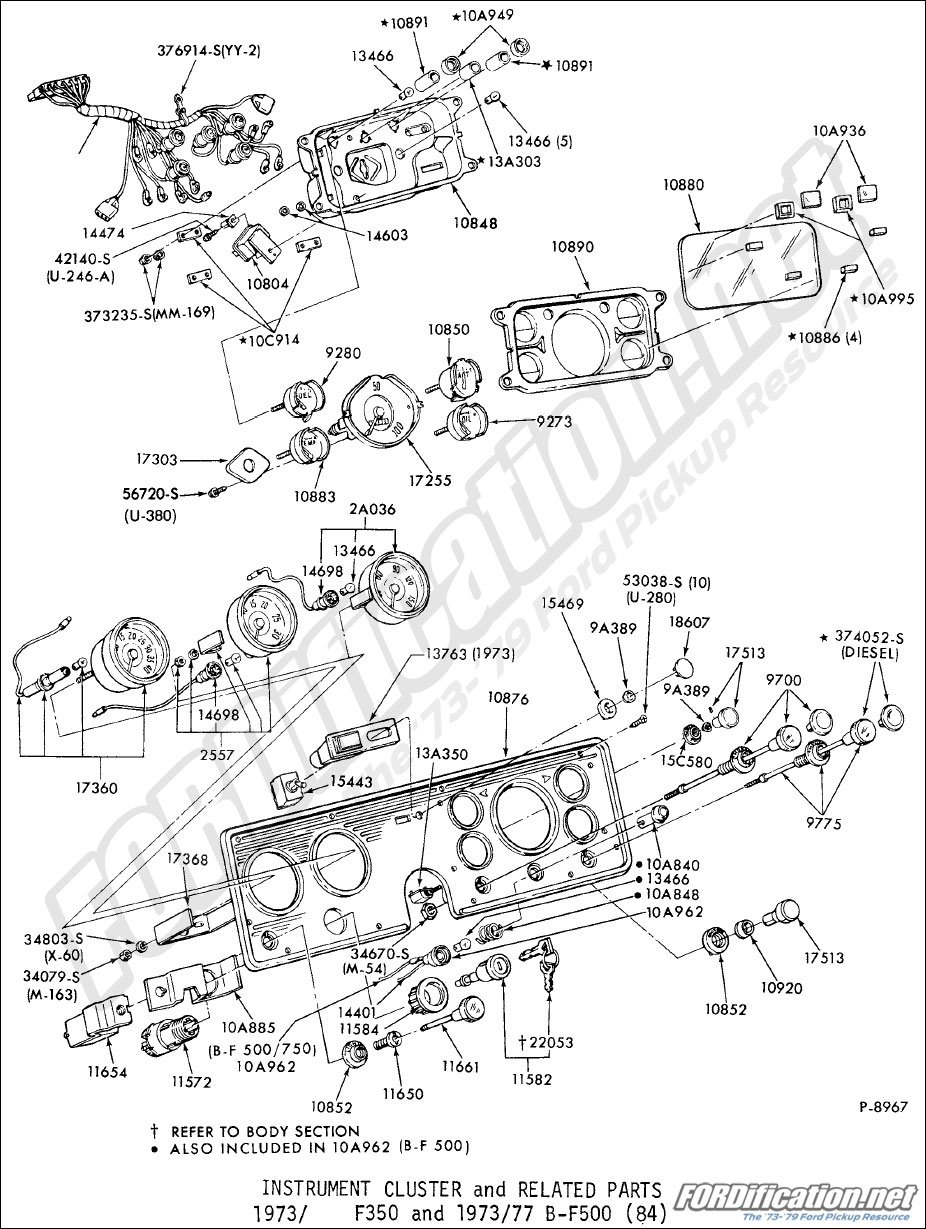

1973-1977 B-F500 (84)


2A036 - Gauge Assy. (Brake Vacuum)
  73-77 B-F-P500
73-76 P400
D5HZ 2A036-A

2557
   (Not listed in Oct. '79 MPC)

9273 - Gauge Assy. (Oil Pressure Instrument Panel Unit)
  73-77 B500, F350 (84), F500 D0HZ 9273-C
  73-77 F100/350 (81, 85)
"Before Ser. 080,000"
D3TZ 9273-A Has red pointer - use with miles only speedometer
  77-79 E-F100/350
"From Ser. 080,000"
D7TZ 9273-A Has orange pointer - use with miles/kilos speedometer
  73-79 F100/500 37611-S7 Screw (gauge attaching - fillister head - No. 8-32 x 1/4"
  73-79 F100/350 (81, 85) 383367-S100 (MM-291-EA) - nut (gauge to housing) - hex. - No. 10-32
  73-77 B500, F350 (84) F500 379618-S7-8 (MM-291-E) - nut (gauge to housing) - hex - No. 10-32

9280 - Gauge Assy. (Fuel Instrument Panel Unit)
  73-77 B500, F350 (84), F500 D0HZ 9280-B
  73-74 F100/350 (81, 85) D3TZ 9280-B Use with leaded gas only - has red pointer - use with miles only speedometer
  75-77 F150/350 "Before Ser. 080,001"
  77-79 E150/350, F150/350 - exc. Calif. emission - "Before Ser. 080,001" D7TZ 9280-A Use with leaded gas only - has orange pointer - use with miles/kilos speedometer
  77-79 E100, F100 - Canada
"Before Ser. 080,001"
  75-77 E100, F100 - "Before Ser. 080,001" D5TZ 9280-A Use with unleaded gas only - has red pointer - use with miles only speedometer
  77-79 E100, F100 - "From Ser. 080,001" D7TZ 9280-B Use with unleaded gas only - has orange pointer - use with miles/kilos speedometer
  77-79 E150/350, F150/350 - Calif. emission - "From Ser. 080,001"
  73-79 F100/500 37611-S7 Screw (gauge attaching) - fillister head - 12
No. 8-32 x 1/4"
  73-79 F100/350 (81, 85) 383367-S100 (MM-291-EA) - nut (gauge to housing) - hex - No. 10-32
  73-79 B500, F350 (84), F500 379618-S7-8 (MM-291-E) - nut - (gauge to housing) - No. 10-32

9A389 - Nut (Fuel Pump Manual Control)
  73-79 E100/350, F100/500, B500 B6TZ 9A389-A Bezel (emergency warning lamp switch)
  73-74 B500, F100/500
75 F350
C1TZ 9A389-A Bezel (emergency warning lamp switch)

9700 - Control Assy. (Carburetor Choke)
  73-77 B-F500, P350/500 D3TZ 9700-G 54-1/2" long - bezel lettered "choke" - 7/16"-20 thread - cut to length
  73-77 B500, E100/300, F100/500, P350/500

45219-S

(M-173) - nut (carburetor choke control to instrument panel - 7/16"-20

9775 - Control Assy. (Carburetor Throttle)
  73-77 B-F500 D3TZ 9775-D 49" long - 7/16"-20 thread - lettered "Throttle"
  73-77 B-F500 34670-S7-8 (M-54) - nut (throttle control to instrument panel) - 7/16"-14

10804 - Regulator (Instrument Cluster Voltage)
  73-79 F100/350 (81) D1AZ 10804-A * GR-513
  73-76 F350 (84) C6DZ 10804-A * GR-510
  73-75 E-F100/500
76 F350/500 (84)

52012-S8

(U-202) - screw (regulator to cluster back plate) - No. 8-18 x 1/2" flat hd.

10A840 - Bezel (Instrument Panel Parking Brake Warning Light)
  73-76 F350 (84)
73 B-F500 - w/dual vacuum brakes
D5TZ 10A840-A "Brake"

10K843 - Circuit Assy. (Instrument Cluster Printed)
  73-74 F100/350 (81) D3TZ 10K843-A # D3TF 10C956-AA - Use on instrument cluster w/ammeter and oil pressure gauges
  75 F100/350 (81)
"Before Ser. W40,001"
D5TZ 10K843-A # D5TF 10C956-AA - Use on instrument cluster w/ammeter and oil pressure gauges
  75 F100/350 (81)
"From Ser. W40,001"
D5TZ 10K843-C # D5TF 10C956-CA - Use on instrument cluster w/ammeter and oil pressure gauges
  73-75 F100/350 (81) D3TZ 10K843-B # D3TF 10C956-CA - Use on instrument cluster w/charge indicator and oil pressure warning lights
  76-78 F100/350 (81) D6TZ 10K843-C # D6TF 10C956-CA - Use on instrument cluster w/charge indicator and oil pressure warning lights
  76-79 F100/350 (81) D6TZ 10K843-B #D6TF 10C956-BA - Use on instrument cluster w/ammeter and oil pressure gauges
  79 E-F100/350 D9TZ 10K843-A # D9TF 10C956-AA - Use on instrument cluster w/charge indicator and oil pressure warning lights

10848 - Plate (Instrument Cluster Back)
  73-74 F100/350 (81) D3TZ 10848-A Use on instrument cluster w/ammeter and oil pressure gauges
  75-78 F100/350 (81)
"Before Ser. B60,001
D5TZ 10848-A r/b D8TZ 10848-A (3-79)
Use on instrument cluster w/ammeter and oil pressure gauges
  73-75 F100/350 (81) D4TZ 10848-A Use on instrument cluster w/charge indicator and oil pressure warning lights
  73-76 F350 (84) C7TZ 10848-F
  76-78 F100/350 (81) D6UZ 10848-A Use on instrument cluster w/charge indicator and oil pressure warning light
  78-79 E-F100/350
"From Ser. B60,001"
D8TZ 10848-A Use on instrument cluster w/ammeter and oil pressure gauges - exc. with EGR maint. warning lamp
  79 E-F100/350 D9UZ 10848-A # D9UF 10848
Use on instrument cluster w/charge indicator and oil pressure warning lights
  76-79 F100/350 (81)

383938-S2

(UU-52-V) screw (plate to mask) - No. 8-12 x 1/2"

10A848 - Spring (Instrument Panel Parking Brake Warning Lamp Retaining)
  73-76 F350 (84)
73-77 B-F500 w/dual vacuum brakes
78-79 F100/350 w/dual brake warning light
B9FM 10A848-A

10850 - Ammeter (Instrument Cluster)
  73-77 F100/350 (81) "Before Ser. 080,000" D3TZ 10850-A "D-ALT-C" - has red pointer
  77-'79 E-F100/350 "From Ser. 080,000" D7TZ 10850-A "D-ALT-C" - has orange pointer
  73-'76 F350 (84) D0HZ 10850-B
  76-79 F100/350 (81) 383367-S100 (MM-291-EA) Nut (ammeter to back plate) - No. 10-32 washer head
  76-77 B500, F350/500 (84) 379618-S7-8 (MM-291-E) Nut (ammeter to back plate) - No. 10-32 washer head

10852 - Bezel (Instrument Cluster Control)
  73-76 F350 (84) D3UZ 10852-A Wiper control
  73-77 F500 (81) D3TZ 10852-C Wiper control

10B870 - Filter (Instrument Cluster Lamp)
  73-79 F100/350 (81) D1AZ 10B870-A

10B870 - Mask Assy. (Instrument Panel Lamp)
  73-79 F100/350 (81) D3TZ 10B870-A

10876 - Bezel (Instrument Cluster)
  73-74 F350 (84) "Before Ser. V00,001"
75-76 F350 (84) "From Ser. W00,001"
73-74 B-F500 (84)
D3TZ 19876-B
  74-75 F350 (84) D5TZ10876-A  "From Ser. V00,001 to Ser. W00,001"
  74-75 B-F500 (84 )
  77 B-F500 (84)
"From Ser. W000,001 to Ser. x00,001""
D7TZ 10876-A Less hole for voltmeter (10797)
  73-77 F500 (81) D3TZ 10876-A

10880 - Glass (Instrument Cluster)
  73-79 F100/350 (81) D3TZ 10880-A
  73-76 F350 (84) C7TZ 10880-A
  76-79 F100/350 (81)

379663-S8

(HH-8-R) Clip (glass to mask) - 5/8"

10883 - Gauge (Instrument Cluster Temperature)
  73-77 F100/350 (81) "Before Ser. 080,000" D3TZ 10883-A "C - TEMP - H" - has red pointer
  77-79 E-F100/350 "From Ser. 080,000" D7TZ 10883-A "C - TEMP - H NORMAL" - has orange pointer
  73-76 F350 (84) D0HZ 10883-C
  76-79 F100/350 (81)

383367-S100

(MM-291-EA) - Nut (gauge to back plate) - No. 10-32 washer head

10A885 - Plate (Instrument Cluster Control Mounting)
  73-79 F100/350 (81) D3TZ 10A885-A For ignition switch
  73-77 B-F500 (84)
73-76 F350 (84)
C7TZ10A885-B For ignition switch
  73-77 F500 (81) C7TZ 10A885-A For ignition switch
  73-77 F500 (81) C0AF 10A885-A Use as spacer to secure throttle control

10886
  Not listed in Oct. '79 MPC

10890 - Mask (Instrument Cluster)
  73-75 F100/350 (81) D5UZ 10890-A Use on instrument cluster w/ammeter and oil pressure gauges
  73-75 F100/350 (81) D4TZ 10890-A Use on instrument cluster w/charge indicator and oil pressure warning lights
  73-76 F350 (84) D0HZ 10890-A
  76-77 F100/350 (81) - "Before Ser. Y80,001" D6UZ 10890-A Use on instrument cluster w/ammeter and oil pressure gauges
  77-79 E-F100/350 - "From Ser. Y80,001" D8TZ 10890-A Use on instrument cluster w/ammeter and oil pressure gauges
  76-77 F100/350 (81) - "Before Ser. Y80,001" D6UZ 10890-B Use on instrument cluster w/charge indicator and oil pressure warning lights
  77-79 E-F100/350 - "From Ser. Y80,001" D8TZ 10890-B Use on instrument cluster w/charge indicator and oil pressure warning lights

10891
  Not listed in Oct. '79 MPC

10C914 - Insulator (Ammeter)
  73-79 F100/350 (81)
75-79 E100/350
C9ZZ 10C914-A

10A936-7 - Lens (Instrument Cluster Warning Lamp)
  73-74 F100/350 (81) D3TZ 10A936-B "HI BEAM"
  73-74 F100/350 (81) D3TZ 10A936-C "BRAKES"
  73-79 F100/350 (81) D3TZ 10A936-A "OIL" - Use on instrument cluster w/charge indicator and oil pressure warning lights
  73-75 F100/350 (81) D3TZ 10A937-A "ALT" - Use on instrument cluster w/charge indicator and oil pressure warning lights
  73-79 F100/350 (81) D3TZ 10A936-A # Green - turn signal jewel
  73-76 F350 (84) D1FZ 10A936-C # Red - turn signal jewel
  75 F100/350 (81)
"Before Ser. X20,001"
D5TZ 10A936-D Use on instrument cluster w/ammeter and oil pressure gauges - "LOW FUEL ECONOMY"
  75 F100/350 (81)
"From Ser. X20,001"
D5TZ 10A936-E # Brown - blank - use on instrument cluster w/ammeter and oil pressure gauges to fill fuel economy lamp opening on units w/o fuel economy lamp
  75 F100/350 (81) D5TZ 10A936-B "BRAKES"
  76-79 F100/350 (81) D6TZ 10A936-C "BRAKE" - rectangular - red
  75-79 F100/350 (81)
75-76 F350 (84)
D5TZ 10A936-C High beam jewel - oval - blue
  76-79 F100/350 (81) D6TZ 10A936-A Red - "FASTEN BELTS" - lettering on front surface - replaces lens w/lettering on rear surface

10A949
  Not listed in Oct. '79 MPC

10A962 - Lamp and Wiring Assy. (Brake Warning)
  73-76 F350 (84)
77 F500 (84) w/dual hydraulic vacuum brakes
C8TZ 10A962-A # C8TB 2B318-A - "Brake" - curved lettering on bezel
  73-77 F500 (81) w/dual hydraulic vacuum brakes C8TZ 10A962-C # C8TZ 2B318-C - "Brake" - straight lettering on lens - incl. C0AZ 10A840-A bezel

10A995
  Not listed in Oct. '79 MPC

11572 - Switch Assy. (Ignition)
  73-77 B-F500
73-76 F100/350
73-76 E100/350
73-76 M450/500
D0TZ 11572-A * SW-944 - 6 blade terminals
  77 E-F100/350 D6TZ 11572-A * SW-1317 - #D6TB 11572-AA
6 blade terminals - has 2 locking bars
  78-79 E-F100/350 D8TZ 11572-A * SW-1494 - #D2TB 11572-AA

11582 - Cylinder and Keys Assy. (Ignition Switch Lock)
  73-78 B-F100/500, E100/350 "Before Ser. CA0,001" C9AZ 11582-A *SW-814
  78-79 E-F100/350 "From Ser. CA0,001" D8TZ 11582-A *SW-1517

11584 - Bezel (Ignition Switch)
  73-79 B-F100/500, E100/350, M450/500  C6OZ 11584-A

11650 - Nut (Headlamp Switch)
  73-79 F100/350 (81) D3TZ 11650-A 5/8" O.D. x 13/16" long - metal
  73-77 F350 (84)
73-77 B-F500
C2TZ 11650-A 5/8" O.D. x 5/8" long

11654 - Switch Assy. (Headlamp on Instrument Panel)
  73-77 B-F500, M450/500 D3TZ 11654-A * SW-1157 - #D3TB 11654-AA or AB
  73 F350 (84) D2DZ 11654-A * SW-435 - #D2DB 11654-AB
  73-76 E100/350 "Before Ser. C25,000" D3TZ 11654-A * SW-1245 - Kit - replaces parts marked D3UB 11652-AA & D2DB 11654-AA
  73-76 F100/350 (81) "Before Ser. C25,001"
  73-76 F350 (84) "From Serial Q60,001 to C25,000"

11661 - Knob and Shaft Assy. (Headlamp Switch)
  73-75 F100/350 (81) "Before Ser. V80,001" D3TZ 11661-A
  75-79 F100/350 (81) "From Ser. V80,001" D4FZ 11661-A
  73-77 B-F500 C8TZ 11661-B Black knob - shaft 2-5/8" long

13A303
  Not listed in Oct. '79 MPC

13A350 - Switch and Wiring Assy. (Emergency Warning)
  73-74 F350 (84) D3BZ 13A350-A * SW-1154 - #D3BB 13A350-AA

13466 - Bulb (Miniature)
(Note: Although this Group Number includes all small bulbs, only those pertaining to the F100/350 (81) instrument cluster are listed here.)
  FUNCTION YEAR INDUSTRY NO. PART NUMBER
  - Brake-oil-alt. 73-79 194 C2AZ 13466-D
  - Hi-beam 73-79
  - Fuel economy warning light 75-76
  - Seat belt warning light 77-79
  - Turn indicator 73-79
  - Panel illumination 73-79

13711 - Socket Assy. (Instrument Panel Lamp)
  73-79 F100/350 (81) C8OZ 13711-A Also use for A/T selector dial
  73-77 F350 (84) C7AZ 13711-A
  78-79 F100/350 - Custom Super Cab

13763 - Bracket (Interior Lamp Mounting)
  (Used only on E-series)

14474 - Terminal (Wire)
  73-79 All B8E 14474-A Snap on - internal type
C1AF 14474-A Snap on - internal type
C8AZ 14474-A Snap on - female type
D1TZ 14474-A Solderless wire - horn switch wire ground
  75 F100/350 - w/midship fuel tank D2OZ 14474-A Snap on - female type

14603 - Bushing (Terminal)
  73-77 B-F100/500, M450/500 C7ZZ 14603-A Use on instrument cluster w/ammeter and oil pressure gauges

14698
   (Not listed in Oct. '79 MPC)

15469 - Bezel (Marker Lamp Switch)
  73-79 B-F350/500 (84)  D3TZ 15469-A

15443 - Switch Assy. (Marker Lamp Blinker)
  73-79 B-F350/500 (84)  D3TZ 15443-C # D3TB 15443-AB - "Marker Lamp"
  75-77 B-F500 (81)
  74 All - New York City only Use as electric horn tone selector switch
  74-76 M450/500 "From Ser. U00,001"

15C580 - Bezel (Emergency Warning Switch)
  73-79 F350 (84) D0TZ 15C580-A "Emergency Flasher"

17255 - Speedometer Assembly
(1) Canada only
  73-74 F100/250 D4TZ 17255-A r/b D5TZ 17255-A (2/78)
  73-74 F350 D5TZ 17255-C High beam jewel - 100 M.P.H.
  75-77 F100/350 D5TZ 17255-A High beam jewel - 100 M.P.H.
  77-79 E-F100/350 D7TZ 17255-B Dual band - 85 M.P.H. / 130 Km.P.H.
  78-79 E-F100/350 D8TZ 17255-B w/Opening for economy jewel - dual band - 85 M.P.H. / 130 Km.P.H.
  77-79 E-F100/350 (1) D8TZ 17255-A Dual band - 130 Km.P.H. / 80 M.P.H.
  78-79 E-F100/350 (1) D8TZ 17255-C w/Opening for economy jewel - dual band - 130 Km.P.H. / 80 M.P.H.

17303 - Gasket (Speedometer Case)
  73-79 E100/300, F100/350 (81) C9MY 17303-A
  73-79 F350/500 (84) C7MY 17303-A

17513 - Knob Assembly
  73-75 F100/350 (81) D1AZ 17513-B Wiper control
  76-79 F100/350 D3OZ 17513-A Wiper control

17360 - Tachometer Assy.
  73-77 B-F-P500 D5HZ 17360-A 4000 RPM

17368 - Bracket (Tachometer Mounting)
  75-77 B-F-P500 D5HZ 17368-A 4000 RPM

18607
   (Not listed in Oct. '79 MPC)
18A952 - Choke (Radio Receiver Suppression)
   (Only used on 73-77 F500)

22050 - Cylinder and Key Set (Door and Ignition Lock)
 F/D - Front door
 (2) Key head reads "Ford"
 (3) Key head reads "Family of Fine Cars"
  Year/Model Consists of Lock Cylinders & Keys for Description Part Number
Door G/
Compt.
Ign. Hood
  78 E-F100/350       H   D8TZ 16978-A
  78 F100/350 (81) F/D   I H Less spare wheel lock D8TZ 1022050-E
  78 F100/350 (81) "Before Ser. CA0,001" F/D   I H Incl. spare wheel lock D8TZ 1022050-B
  78 F100/350 (81) "From Ser. CA0,001" F/D   I H Incl. spare wheel lock D8TZ 1022050-F
  77 F100/500 (81) F/D   I   Incl. spare wheel lock D7TZ 1022050-A
  78 F100/350 (81) "Before Ser. CA0,001" F/D   I   Incl. spare wheel lock D7TZ 1022050-A
  78 F100/350 (81) "From Ser. CA0,001" F/D   I   Incl. spare wheel lock D8TZ 1022050-C
  78 F100/350 (81) "From Ser. CA0,001" F/D   I H Less spare wheel lock
incl. glove compt. latch
D8TZ 1022050-G
  73-78 F100/500 (81) F/D   I   Less spare wheel lock D8TZ 1022050-D
F/D         D2AZ 6521984-A
  G/C       C6OZ 6206081-C
  73-77 F100/500     I     C9AZ 11582-A
*SW-814
F/D   I   Key blank (2) C7TZ 8122053-A
F/D       Key blank (3) C7AZ 6222053-A
  G/C     Key blank C7AZ 6243562-A
F/D       Lever D2AZ 6521970-A
  78 F100/350 "Before Ser. CA0,001"     I     C9AZ 11582-A
 (2) SW-814
  78-79 F100/350 "From Ser. CA0,001"     I     D8TZ 11582-A
*SW-1517
  79 F100/350   G/C       D8TZ 9806081-A
  78-79 F100/350 F/D   I   Key blank (2) C7TZ 8122053-A
F/D       Key blank (3) C7AZ 6222053-A
  G/C     Key blank C7AZ 6243562-A
F/D       Lever D2AZ 6521970-A
  79 F100/350 F/D   I     D9TZ 1022050-A
F/D   I   Incl. spare wheel lock D9TZ 1022050-B
F/D   I H Incl. spare wheel lock D9TZ 1022050-C
F/D   I H Less spare wheel lock D9TZ 1022050-D
F/D   I H Less spare wheel lock
incls. glove compt. latch
D9TZ 1022050-E

22053
   (Refer to Group 22050)

# - Identification marking

Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
  a. Part is superseded and replaced as indicated in the description column of text
b. Part can be improvised as indicated in the description column of text
c. Due to it's function there would be little or no demand



You are here: Home Technical Part Numbers Instrument Panel

Copyright © 1999-2016 FORDification.net unless otherwise noted. All rights reserved.
All brand names and product names used on this website are trade names, service marks or registered trademarks of their respective holders.
No portion or content of this site may be reproduced or otherwise used without explicit permission.
To report problems or provide comments or suggestions, please click here.
