Outside Rear View Mirrors & Related Parts



NOTE: Items listed here specifically pertain to '73-'79 Ford F100/350 trucks, but may have other applications (other Ford car/van/truck models) that are not included.

All part numbers and specifications are as reported in the 1973-1979 Ford Truck Master Parts Catalog (dated October 1979, with April 1980 updates) unless otherwise noted.


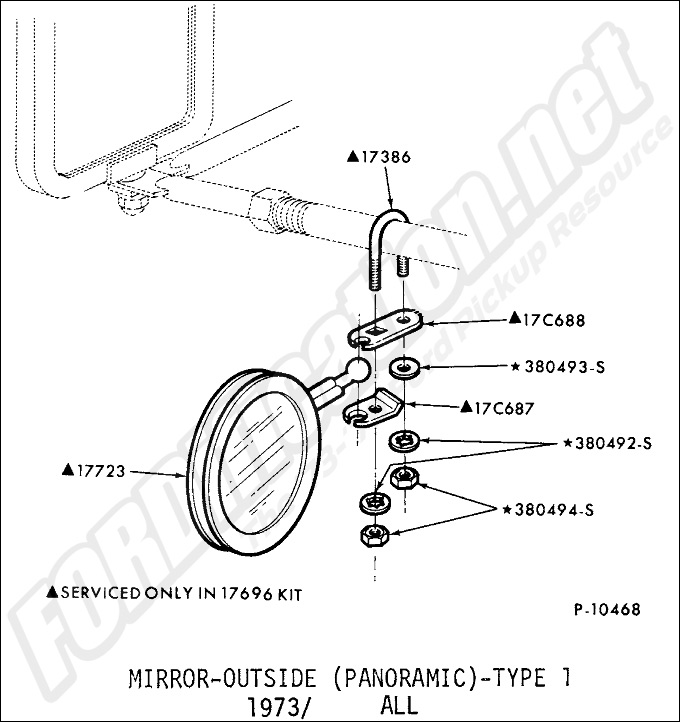

Mirror, Outside (Panoramic) - Type 1
1973-1979 All

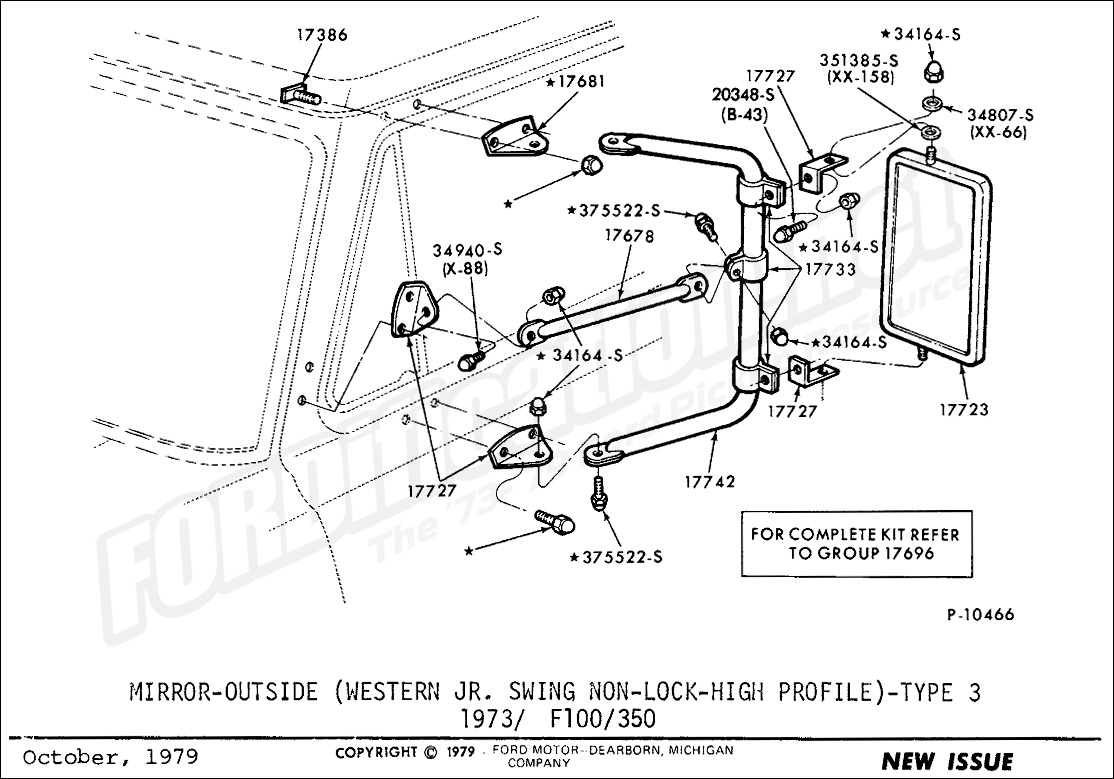

Mirror, Outside (Western Jr. Swing
Non-Lock High Profile) - Type 3
1973-1979 F100/350

Mirror, Outside

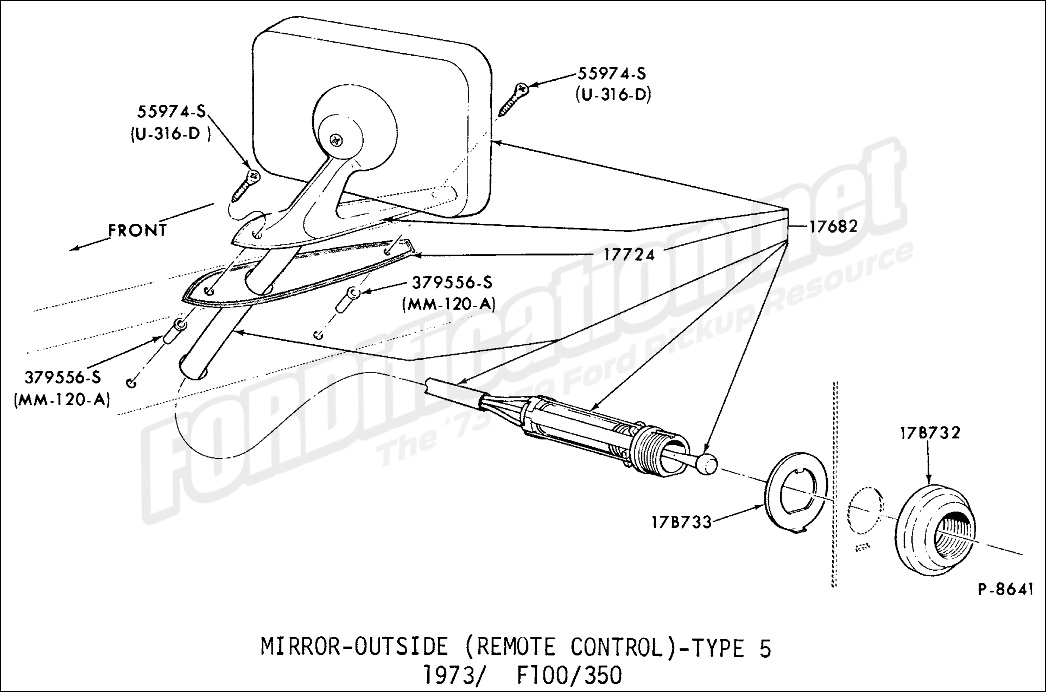

(Remote Control) - Type 5
1973-1979 F100/350

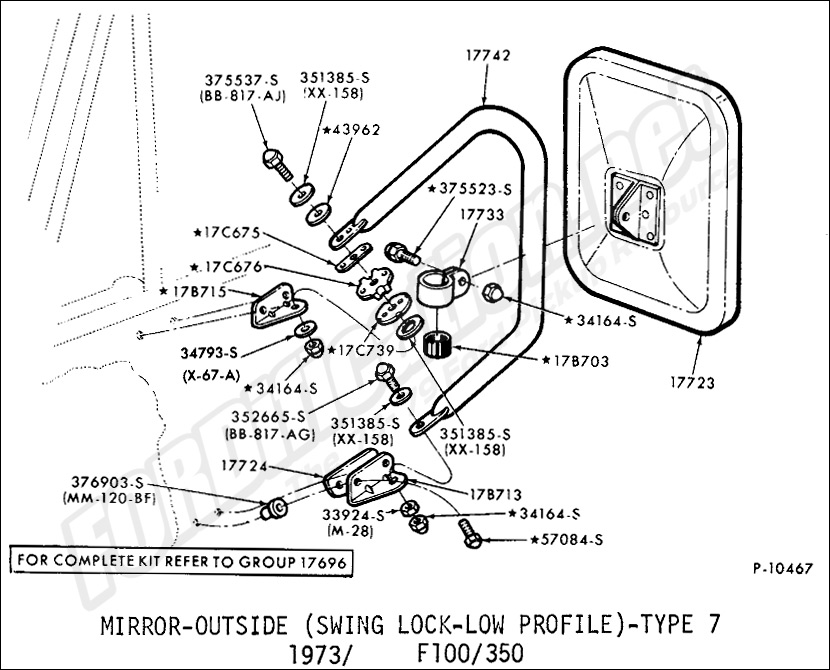

Mirror, Outside (Swing Lock -
Low Profile) - Type 7
1973-1979 F100/350

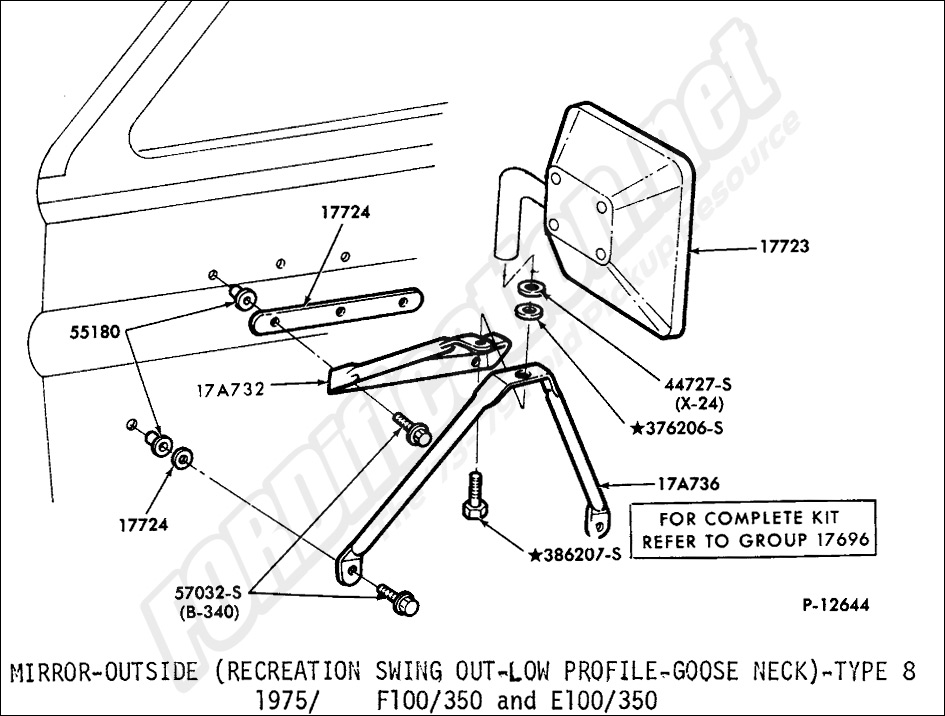

Mirror, Outside (Recreation Swing Out -
Low Profile - Goose Neck) - Type 8
1975-1979 F100/350 and
E100/350

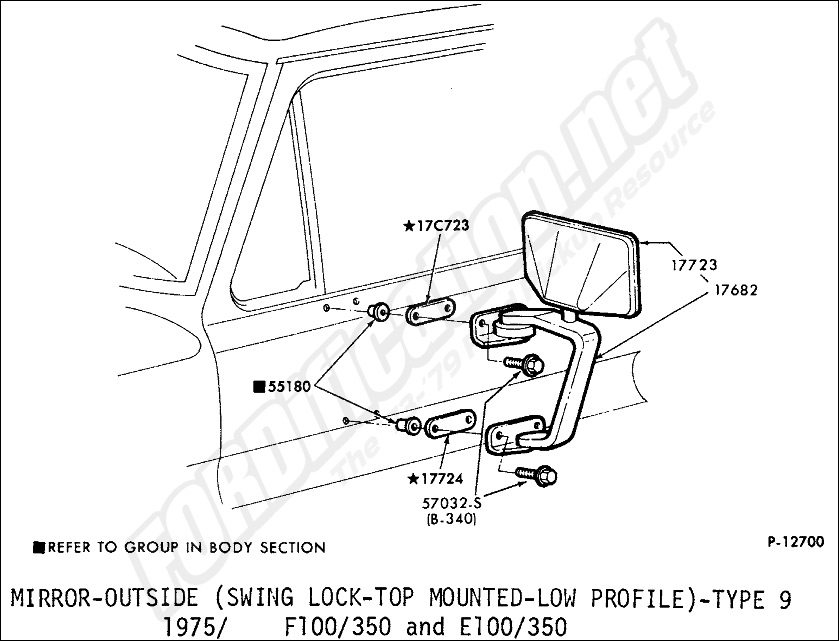

Mirror, Outside (Swing Lock - Top Mounted - Low Profile) - Type 9
1975-1979 F100/350
and E100/350


Mirror, Outside (Western Jr. Non-Swing

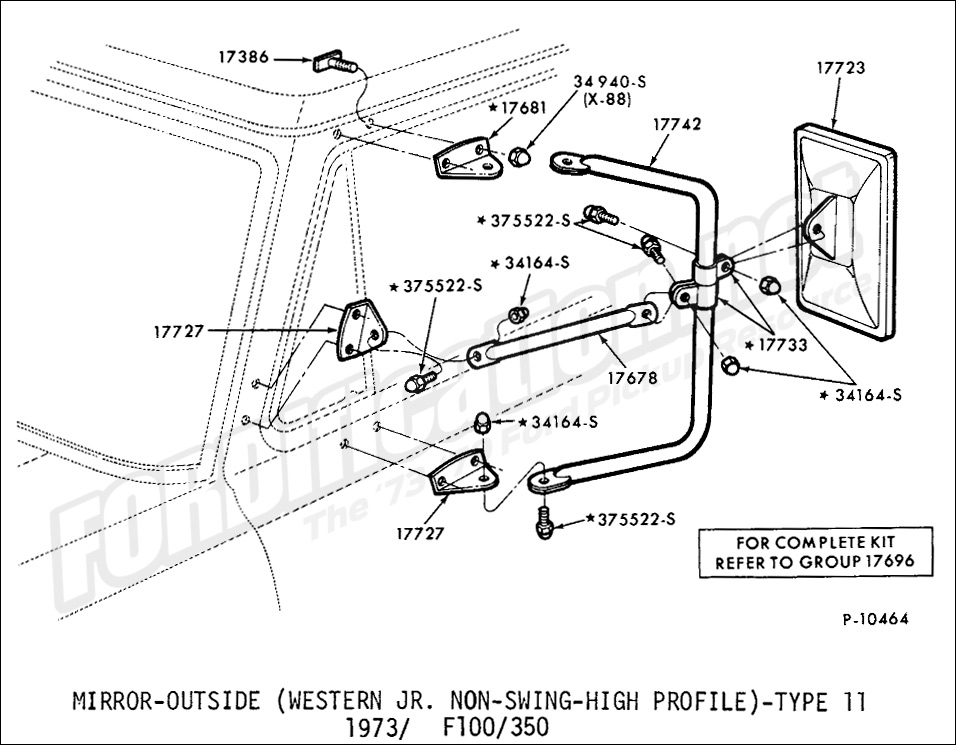

High Profile) - Type 11
1973-1979 F100/350

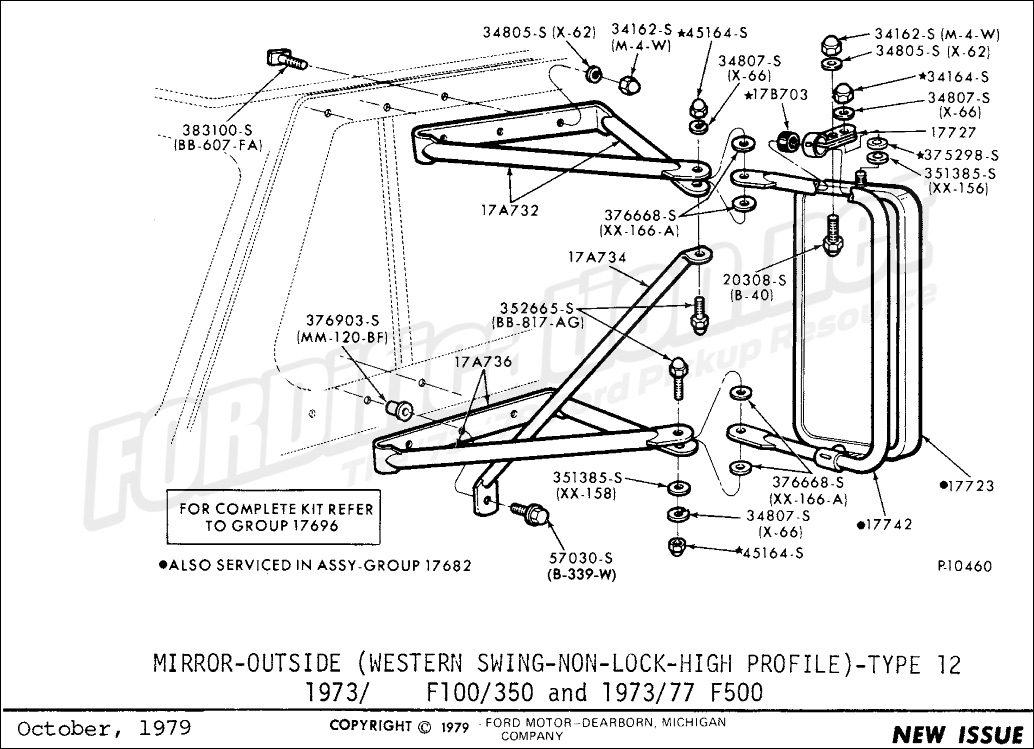

Mirror, Outside (Western Swing Non-Lock High-Profile) - Type 12
1973-1979 F100/350 and
1973-1977 F500

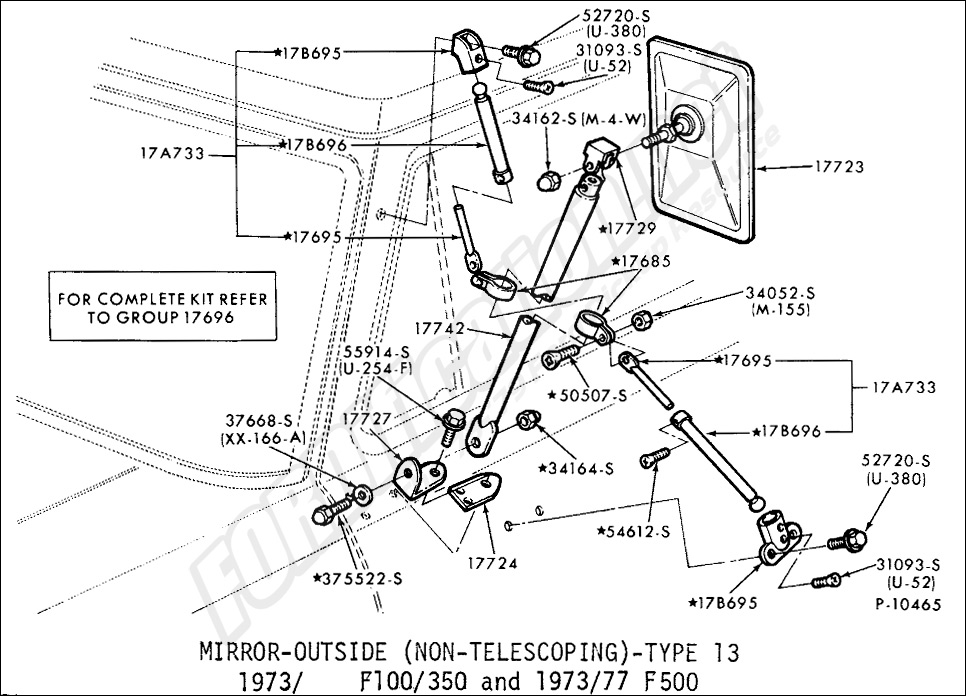

Mirror, Outside (Non-
Telescoping)  - Type 13
1973-1979 F100/350 and
1973-77 F500



17386  - BOLT (REAR VIEW OUTSIDE MIRROR SUPPORT BRACKET)
  73-79 F100/350 (81) - w/Western Jr. mirror D0HZ 17386-A 1/4"-20 x 27/64" - camper type - stainless steel - 4

17678 - SUPPORT (REAR VIEW OUTSIDE MIRROR)
  73-79 F100/350 (81) - w/Western Jr. mirror (RH) D3TZ 17678-A
(LH) D3TZ 17678-B
15 1/2" long - painted
  73-79 F100/350 (81) - w/Western Jr. mirror (RH) D3TZ 17678-C
(LH) D3TZ 17678-D
15 1/2" long - camper type

17682-3 - MIRROR (REAR VIEW OUTSIDE)
◊ Refer to Outside Mirror Kit Components for a listing of kit components
Not for use on vehicles w/10.000 G.V.W. lbs. or more
* Includes attaching parts


Year/Model/Restrictions

Part Number Description
Assembly Kit Head
TYPE 1 - Panoramic
  73-79 E-F100/350   C5TZ 17696-A Not available 4 1/2" dia.
TYPE 2 - Western Jr. - swing lock - high profile - (E-series only)
TYPE 3 - Western Jr. - non-swing non-lock - high profile - (also used w/73-74 E-series)
  73-79 F100/350   D3TZ 17696-B C7TZ 17723-A R.H. - 5" x 9" - stainless
  D3TZ 17696-A C7TZ 17723-A L.H.
TYPE 4 - Passenger - extended arm - (E-series only)
TYPE 5 - Passenger - manual/remote
  73-79 F100/350 (81, 83, 99) -
w/o camper
73-79 Bronco
  D3TZ 17696-L Not available R.H. and L.H. - 4" x 5" - manual - chrome
  D3TZ 17696-K Not available L.H. - 4" x 5" - remote - chrome
TYPE 6 - Swing lock - low profile - mirror head mounted on top of bracket - (E-series only)
TYPE 7 - Swing lock - low profile - mirror head mounted on side of bracket
  73-79 F100/350 (81, 83, 99) -
w/o camper
  D3TZ 17696-C D3TZ 17723-A

R.H. and L.H. - 6 1/2" x 9 1/2" - stainless

TYPE 8 - Recreation swing out - low profile - gooseneck - (also used w/75-up E-series)
  75-79 F100/350   D5TZ 17696-A D5TZ 17723-A

R.H. and L.H. - 6 3/4" x 9 1/2" - stainless

TYPE 9 - Swing lock - top mounted - low profile
  77-79 E100/350
77-79 F100/350 (81,83,99) - w/o camper
  D6TZ 17696-A D4TZ 17723-A

R.H. and L.H. - 5 1/4" x 8 1/4" - stainless includes curved upper and lower mounting brackets with (2) mounting holes on 2" bolt centers - 17713 arm has 6-11/16" span

  77 F100/350



D7TZ 17682-A   D4TZ 17723-A

R.H. and LH. - 5 1/4" x 8 1/4" - stainless - includes flat upper and lower mounting brackets - upper brkt. has (2) mtg. holes on 2-3/4" bolt center - lower brkt. has (2) mtg. holes on 2" bolt center 17713 arm has 7 13/32" span

  73-79 F100/350



  D4TZ 17696-A

D4TZ 17723-A

R.H. and L.H. - 5" 1/4" x 8 1/4" - stainless includes flat upper and lower mounting brackets - upper brkt. has (2) mtg. holes on 2-3/4" bolt center - lower brkt. has (2) mtg. holes on 2" bolt center - 17713 arm has 7 19/32" span

  78-79 F100/350 * D8TZ 17682-A   D8TZ 17723-A

R.H. and L.H. - 6" x 9" stainless - glass in mirror head is mounted directly to plate - does not use a gasket.

  78 F100/350 D8TZ 17682-E   D4TZ 17723-A

R.H. and L.H. - 5 1/4" X 8 1/4'' - stainless - glass in mirror head is mounted in black rubber gasket

  79 F100/350 * D9TZ 17682-A   D9TZ 17723-A

R.H. and L.H. - 6" x 9" - stainless - glass in mirror head is mounted in black rubber gasket

  78-79 F100/350 * D8TZ 17682-D   D8TZ 17723-B

R.H. and L.H. - 6" x 9" - painted

TYPE 10 - Trailer towing - fender mounted
  73-78 F100/350   D3AZ 17696-D Not available

R.H. and L.H. - (not replaced 2/78)

TYPE 11 - Western Jr. - non swing - high profile
  73-79 F100/350   D3TZ 17696-F D2TZ 17723-A R.H. - 6-1/2" x 9-1/2" - painted
  D3TZ 17696-E D2TZ 17723-A L.H.
TYPE 12- Western - swing non lock - high profile
  73-79 F100/500 C9TZ 17682-B D3TZ 17696-H C1TZ 17723-A R.H. - 7" x 16" - painted
  D3TZ 17696-G C1TZ 17723-A L.H.
    C9TZ 17723-A R.H. and L.H. - 7" x 16" - stainless
  73-78 F100/350 - Canada only D3TZ 17682-N   C8TB 17723-L R.H. - 7" x 16" - marker lamps
D3TZ 17682-P   C8TB 17723-L L.H.
  73-77 F500 C9TZ 17682-B   C9TZ 17723-A R.H. and L.H. - 7" x 16" - stainless
TYPE 13 - Non-telescoping
  73-74 F100/500   D3TZ 17696-J C1TZ 17723-G

R.H. and L.H. - 5 1/2" x 8 1/2" - painted


17696 - Refer to group 17682-3

17A700 - GLASS (REAR VIEW OUTSIDE MIRROR)
Note: [1] Canada only
  73-79 F350/500 (81) [1] C4HZ 17A700-A Western - 6 5/16" x 15 1/2"
  73/ E-F100/350 - Western mirror D6UZ 17A700-A R.H. & L.H. - 5 1/2" x 9 1/2" - use as glass replacement for 6" x 10" mirror head w/(4) retaining screws

17C702 - HEAD (REAR VIEW OUTSIDE MIRROR) - Also refer to group 17722-3
Note: [1] Canada only
  73-79 F350/500 (81) [1] C8TB 17C702-A L. H. - Western - painted - w/marker lights

17K707 - GLASS REPLACEMENT (REAR VIEW OUTSIDE MIRROR)
  73-79 F100/350 - remote control mirror - type 5 D7TZ 17K707-A
  78 E-F100/350 - swing lock - top mounted - low profile - type 9 D8TZ 17K707-A R.H. or L.H.

17B713 - BRACKET (REAR VIEW OUTSIDE MIRROR)
  73-79 F100/350 (81) - w/low profile - Western Jr. mirror D3TZ 17B713-B R.H. & L.H. Lower - stainless

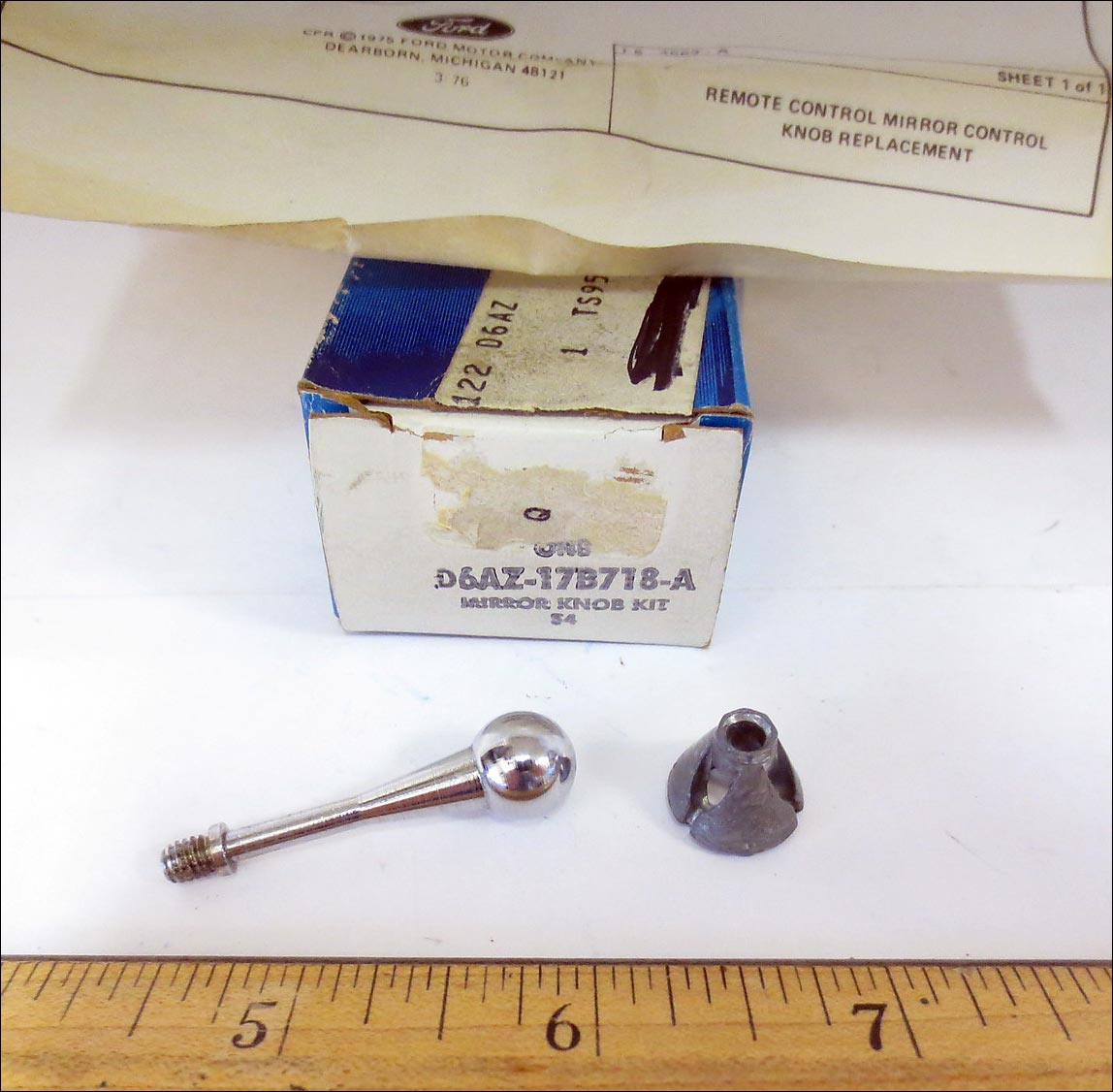

17B718 - KNOB (REAR VIEW OUTSIDE MIRROR REMOTE CONTROL KIT)
73-79 F100/350 D6AZ 17B718-A

17722-3 - HEAD (REAR VIEW OUTSIDE MIRROR)
  Refer to group 17682 and 17C702

17724 - GASKET (REAR VIEW OUTSIDE MIRROR MOUNTING)
  73-74 E100/300 - w/Western Jr. (RH) C8UZ 17724-B (LH) C8UZ 17724-C
  75-79 F100/350 - w/low mount
camper mirror - "gooseneck type"
D5TZ 17724-A Gooseneck type - Upper - 8 5/8" lg. - 1 1/8" wide
  73-79 F100/350 (81) - w/remote control mirror (RH) C9TZ 17724-A (LH) C9TZ 17724-B
  73 F100/500 (81) - w/non- telescoping mirror D3TZ 17724-B
  73-79 F100/350 - w/passenger type mirror D1AZ 17724-A 2

17727 - BRACKET (REAR VIEW OUTSIDE MIRROR)
  73/ F100/350 - w/ Western Jr. mirror C7TZ 17727-C Stainless steel - "L" shaped - 4
  73-79 F100/350 (81) - w/Western Jr. mirror D3TZ 17727-A Painted - on "C" arm
  73-79 F100/350 (81) - w/Western Jr. mirror D3TZ 17727-F Painted - on straight arm
  73-79 F100/350 - w/Western Jr. mirror D3TZ 17727-D Camper type - stainless steel - on "C" arm
  73-79 F100/350 - w/Western Jr. mirror D3TZ 17727-E Camper type - stainless steel - on straight arm
  73-79 F100/500 (81) - w/non- telescoping mirror D3TZ 17727-C 5" x 8" - "gooseneck type"

17A732 - SUPPORT ASSY. (REAR VIEW OUTSIDE MIRROR UPPER)
  73-77 F500 - w/Western mirror
73-79 F100/350 - w/Western mirror
(RH) D3TZ 17A732-C (LH) D3TZ 17A732-D Stainless - 7" x 16"
  75-79 F100/350 - w/low mount camper mirror D5TZ 17A732-A R.H. & L.H. - stainless - 6" x 9" - "gooseneck type" - 2

17B732 - NUT (REAR VIEW OUTSIDE MIRROR REMOTE CONTROL)
  73-79 F100/350 (81) C9TZ 17B732-A

17C732 - MIRROR and GUARD ASSY. (REAR VIEW OUTSIDE) - Less arms - Also refer to group 17B717
Note: [1] Canada only
  73-79 F350/500 (81) - w/Western mirror [1] C8HZ 17C732-B L.H. - marker lamps

17733 - CLAMP (REAR VIEW OUTSIDE MIRROR ARM)
  73-79 E100/350, F100/350 - w/ Western Jr. mirror C7TZ 17733-A Stainless steel - 4
20328-S8 (B-76) - bolt- 3/8"-16 x 5/8" - 4
34808-S8 (X-67) - Lockwasher - 3/8" - 4

17A733-4 - BRACE ASSY. (REAR VIEW OUTSIDE MIRROR)
  73-74 F100/500 (81) - w/non- telescoping mirror C7TZ 17A733-A Upper - 5" x 8"
  73-74 F100/500 (81) - w/non- telescoping mirror C7TZ 17A733-B Lower - 5" x 8"
  73-79 F100/350 - w/Western mirror D3TZ 17A734-B Stainless - 7" x 16"

17B733 - PLATE (REAR VIEW OUTSIDE MIRROR REMOTE CONTROL)
  73-79 F100/350 (81) C8SZ 17B733-C

17A736 - SUPPORT ASSY. (REAR VIEW OUTSIDE MIRROR LOWER)
  73-79 F100/350 - w/Western mirror D3TZ 17A736-B R.H. and L.H. - stainless - 7" x 16"
  75-78 F100/350 - w/low mount camper mirror D5TZ 17A736-A R.H. & L.H . - stainless - 6" x 9" - "gooseneck type"

17742 - ARM (REAR VIEW OUTSIDE MIRROR)
  73-74 F100/500 (81) - w/non- telescoping mirror D3TZ 17742-A 5" x 8" - 2
  73-79 F100/350 (81) - w/Western Jr. mirror D3TZ 17742-B Painted - 7 1/2" x 10" - 2
  73-79 F100/350 (81) - w/Western Jr. mirror D3TZ 17742-C Camper type - stainless steel - 6" x 10" - 2
  73-79 F100/350 (81) - w/low profile - Western Jr. mirror D3TZ 17742-D Stainless steel - square hole mounting - 2
D3TZ 17742-E Stainless steel - round hole mounting - 2


A Note About Mirrors

Prior to 1967, all exterior rearview mirrors were an option. Then starting in 1967, new Federal safety standard laws required at least a driver's-side rearview mirror on all vehicles. However, Ford did not install mirrors at the factory. The standard mirrors were boxed (though in later years they were shrink-wrapped) and set on the vehicle's floorboard when they were shipped to the dealer.

Why? Well, the choice of mirrors was up to the buyer, and if Ford drilled the body panels to install mirrors that the buyer didn't want, then the dealer would have to remove the mirrors, weld up the holes and repaint.

The Type 5 mirror pictured above (commonly referred to as the 'Sport Mirror') was the standard mirror for light-duty trucks and were shipped to the dealer in every truck. However, since they were so small and difficult to use on a work truck, most buyers didn't want them installed, and since they came shrink-wrapped or in plastic bags and not in a factory box with the part number on it, they couldn't be returned, so ultimately many of these Type 5 mirrors were discarded by the dealer.

Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
  a. Part is superseded and replaced as indicated in the description column of text
b. Part can be improvised as indicated in the description column of text
c. Due to it's function there would be little or no demand
