Ford Truck Transmission Crossmember



NOTE: Items listed here specifically pertain to '73-'79 Ford F100/350 trucks, but may have other applications (other Ford car/van/truck models) that are not included.

All part numbers and specifications are as reported in the 1973-1979 Ford Truck Master Parts Catalog unless otherwise noted.

Group 6A023 Support, Rear or Support Assy., Engine Rear

There were 12 different transmission crossmembers used on '73-'79 pickups. The images here show the pages from the MPC with the part numbers, broken down by engine size.

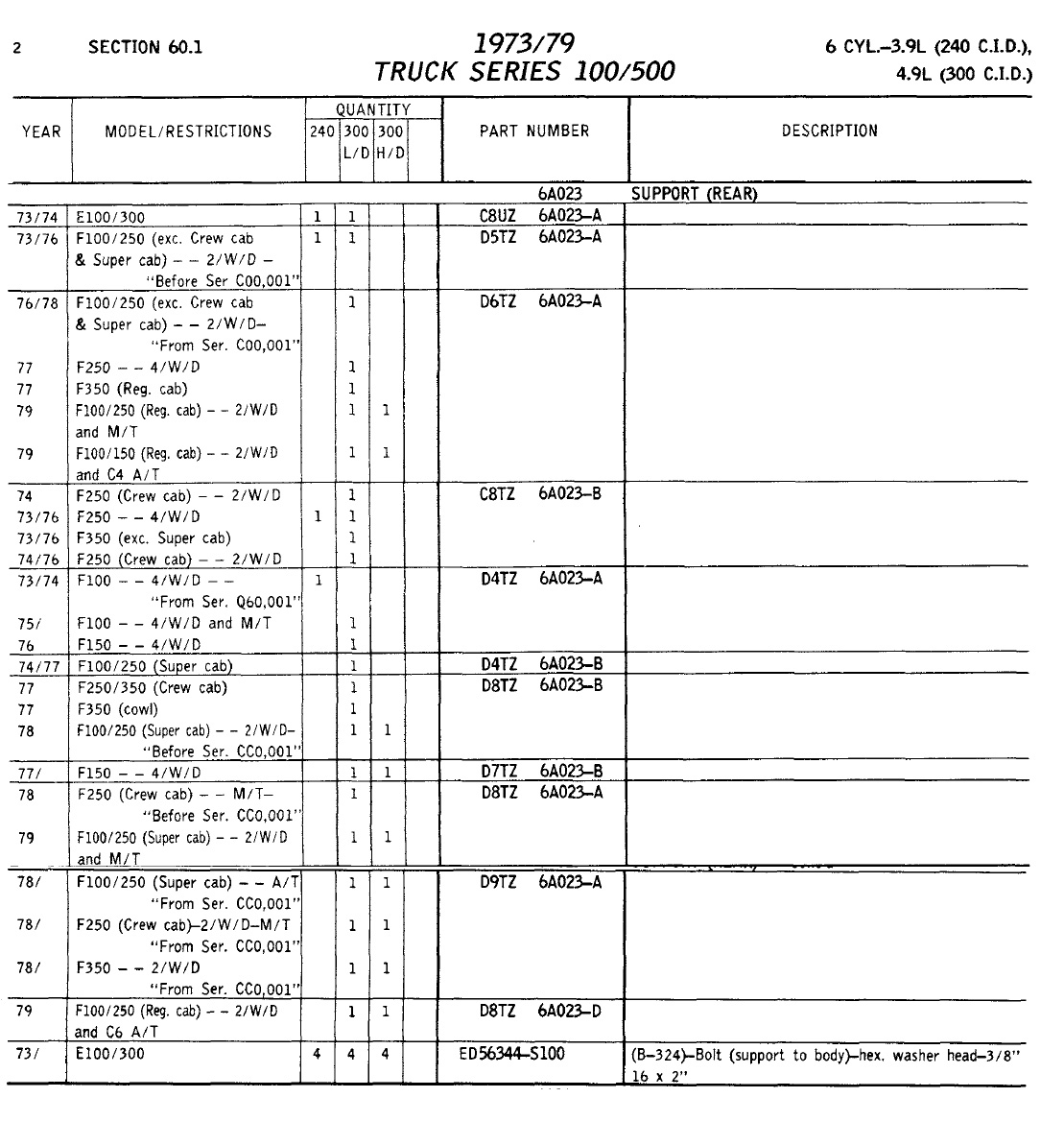

[240/300]

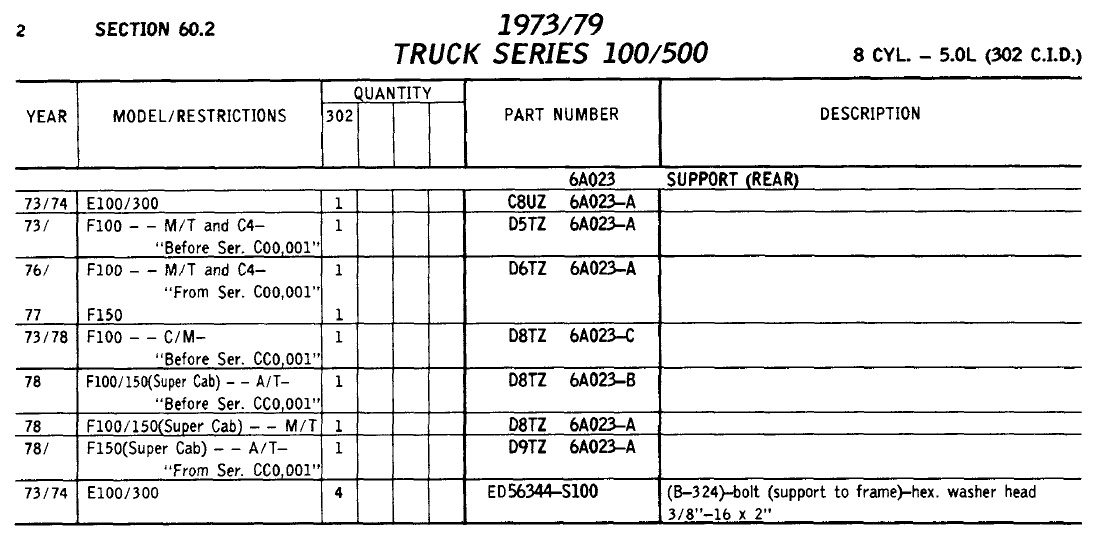

[302]

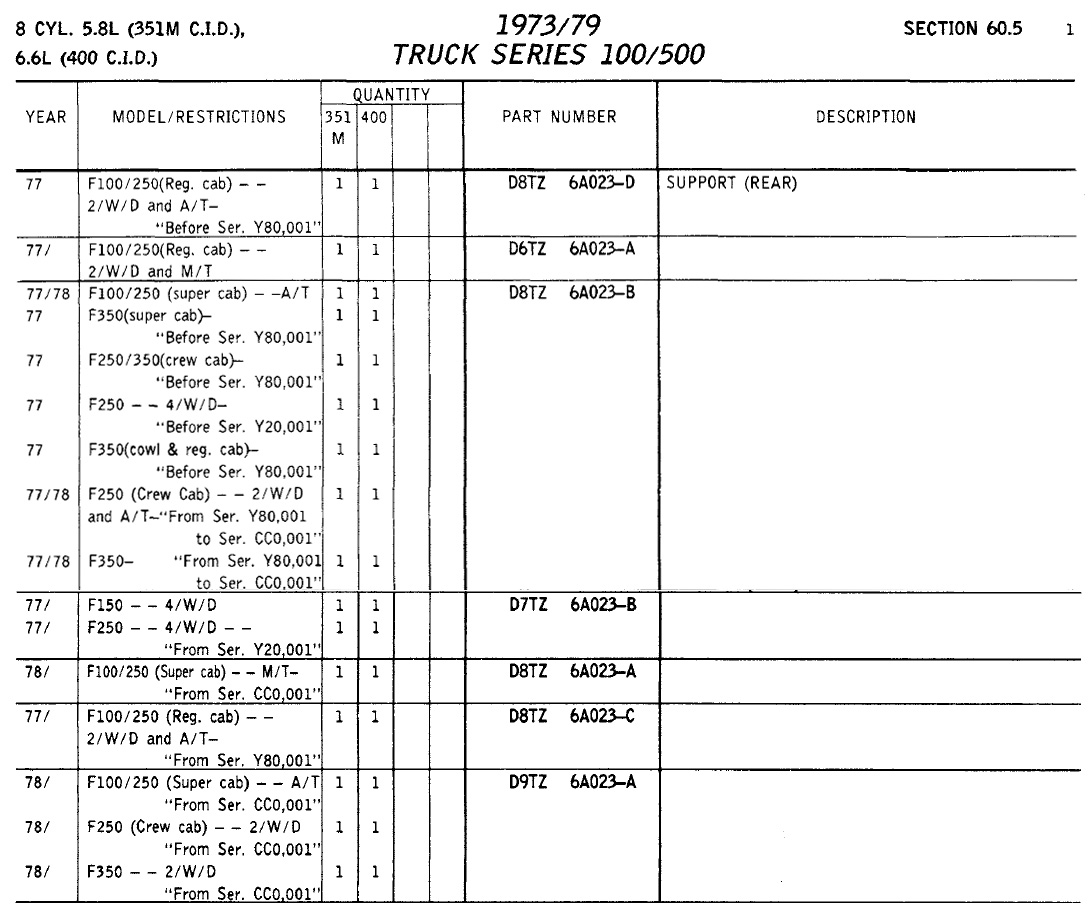

[351M/400]

[360/390]

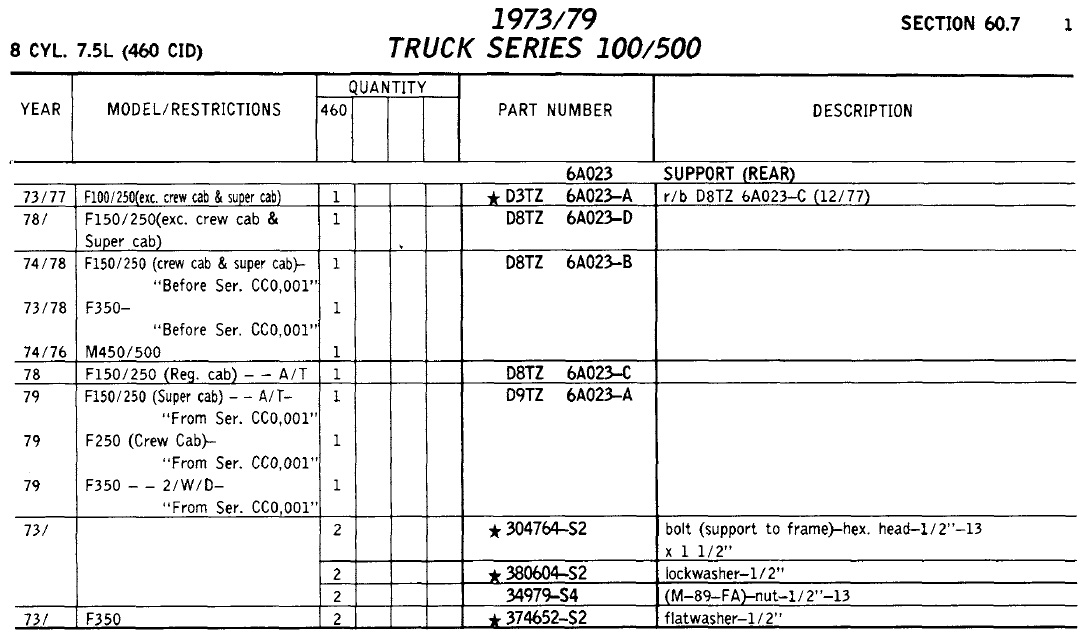

[460]

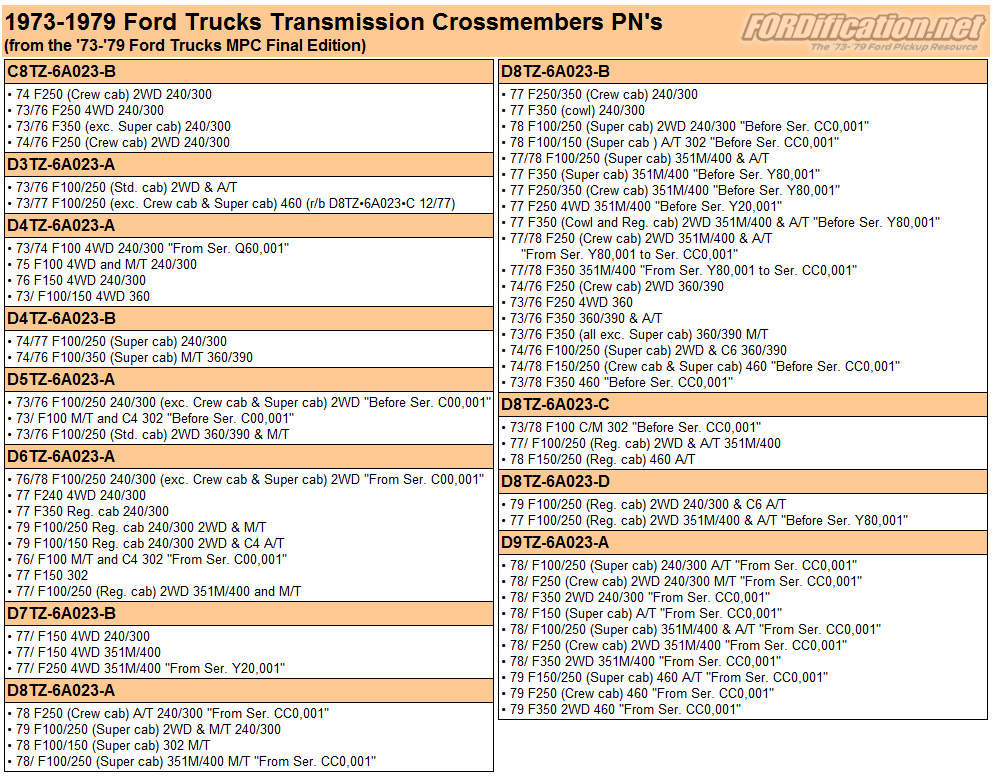

Here's a handy graphic you can post online, showing the breakdown (detailed below) of the different part numbers and applications.

...and broken down by part number:

C8TZ-6A023-B
74 F250 (Crew cab) 2WD 240/300
73/76 F250 4WD 240/300
73/76 F350 (exc. Super cab) 240/300
74/76 F250 (Crew cab) 2WD 240/300



D3TZ-6A023-A
73/76 F100/250 (Std. cab) 2WD & A/T
73/77 F100/250 (exc. Crew cab & Super cab) 460 (r/b D8TZ-6A023-C 12/77)



D4TZ-6A023-A
73/74 F100 4WD 240/300 "From Ser. Q60,001"
75 F100 4WD and M/T 240/300
76 F150 4WD 240/300
73/ F100/150 4WD 360



D4TZ-6A023-B
74/77 F100/250 (Super cab) 240/300
74/76 F100/350 (Super cab) M/T 360/39



D5TZ-6A023-A
73/76 F100/250 240/300 (exc. Crew cab & Super cab) 2WD "Before Ser. C00,001"
73/ F100 M/T and C4 302 "Before Ser. C00,001"
73/76 F100/250 (Std. cab) 2WD 360/390 & M/T



D6TZ-6A023-A
76/78 F100/250 240/300 (exc. Crew cab & Super cab) 2WD "From Ser. C00,001"
77 F240 4WD 240/300
77 F350 Reg. cab 240/300
79 F100/250 Reg. cab 240/300 2WD & M/T
79 F100/150 Reg. cab 240/300 2WD & C4 A/T
76/ F100 M/T and C4 302 "From Ser. C00,001"
77 F150 302
77/ F100/250 (Reg. cab) 2WD 351M/400 and M/T



D7TZ-6A023-B
77/ F150 4WD 240/300
77/ F150 4WD 351M/400
77/ F250 4WD 351M/400 "From Ser. Y20,001"



D8TZ-6A023-A
78 F250 (Crew cab) A/T 240/300 "From Ser. CC0,001"
79 F100/250 (Super cab) 2WD & M/T 240/300
78 F100/150 (Super cab) 302 M/T
78/ F100/250 (Super cab) 351M/400 M/T "From Ser. CC0,001"



D8TZ-6A023-B
77 F250/350 (Crew cab) 240/300
77 F350 (cowl) 240/300
78 F100/250 (Super cab) 2WD 240/300 "Before Ser. CC0,001"
78 F100/150 (Super cab ) A/T 302 "Before Ser. CC0,001"
77/78 F100/250 (Super cab) 351M/400 & A/T
77 F350 (Super cab) 351M/400 "Before Ser. Y80,001"
77 F250/350 (Crew cab) 351M/400 "Before Ser. Y80,001"
77 F250 4WD 351M/400 "Before Ser. Y20,001"
77 F350 (Cowl and Reg. cab) 2WD 351M/400 & A/T "Before Ser. Y80,001"
77/78 F250 (Crew cab) 2WD 351M/400 & A/T "From Ser. Y80,001 to Ser. CC0,001"
77/78 F350 351M/400 "From Ser. Y80,001 to Ser. CC0,001"
74/76 F250 (Crew cab) 2WD 360/390
73/76 F250 4WD 360
73/76 F350 360/390 & A/T
73/76 F350 (all exc. Super cab) 360/390 M/T
74/76 F100/250 (Super cab) 2WD & C6 360/390
74/78 F150/250 (Crew cab & Super cab) 460 "Before Ser. CC0,001"
73/78 F350 460 "Before Ser. CC0,001"



D8TZ-6A023-C
73/78 F100 C/M 302 "Before Ser. CC0,001"
77/ F100/250 (Reg. cab) 2WD & A/T 351M/400
78 F150/250 (Reg. cab) 460 A/T



D8TZ-6A023-D
79 F100/250 (Reg. cab) 2WD 240/300 & C6 A/T
77 F100/250 (Reg. cab) 2WD 351M/400 & A/T "Before Ser. Y80,001"



D9TZ-6A023-A
78/ F100/250 (Super cab) 240/300 A/T "From Ser. CC0,001"
78/ F250 (Crew cab) 2WD 240/300 M/T "From Ser. CC0,001"
78/ F350 2WD 240/300 "From Ser. CC0,001"
78/ F150 (Super cab) A/T "From Ser. CC0,001"
78/ F100/250 (Super cab) 351M/400 & A/T "From Ser. CC0,001"
78/ F250 (Crew cab) 2WD 351M/400 "From Ser. CC0,001"
78/ F350 2WD 351M/400 "From Ser. CC0,001"
79 F150/250 (Super cab) 460 A/T "From Ser. CC0,001"
79 F250 (Crew cab) 460 "From Ser. CC0,001"
79 F350 2WD 460 "From Ser. CC0,001"
