NOTE: This page is currently under construction. The pages scanned from this book have to be scanned in four pieces and then stitched together into a single graphic, so it's fairly time-consuming. Please check back later to see the latest additions.

Last update: 4/8/10

     Click the links below to view high-resolution images from the 1976 Body Builder's Layout Book:

Body and Cab Dimensions

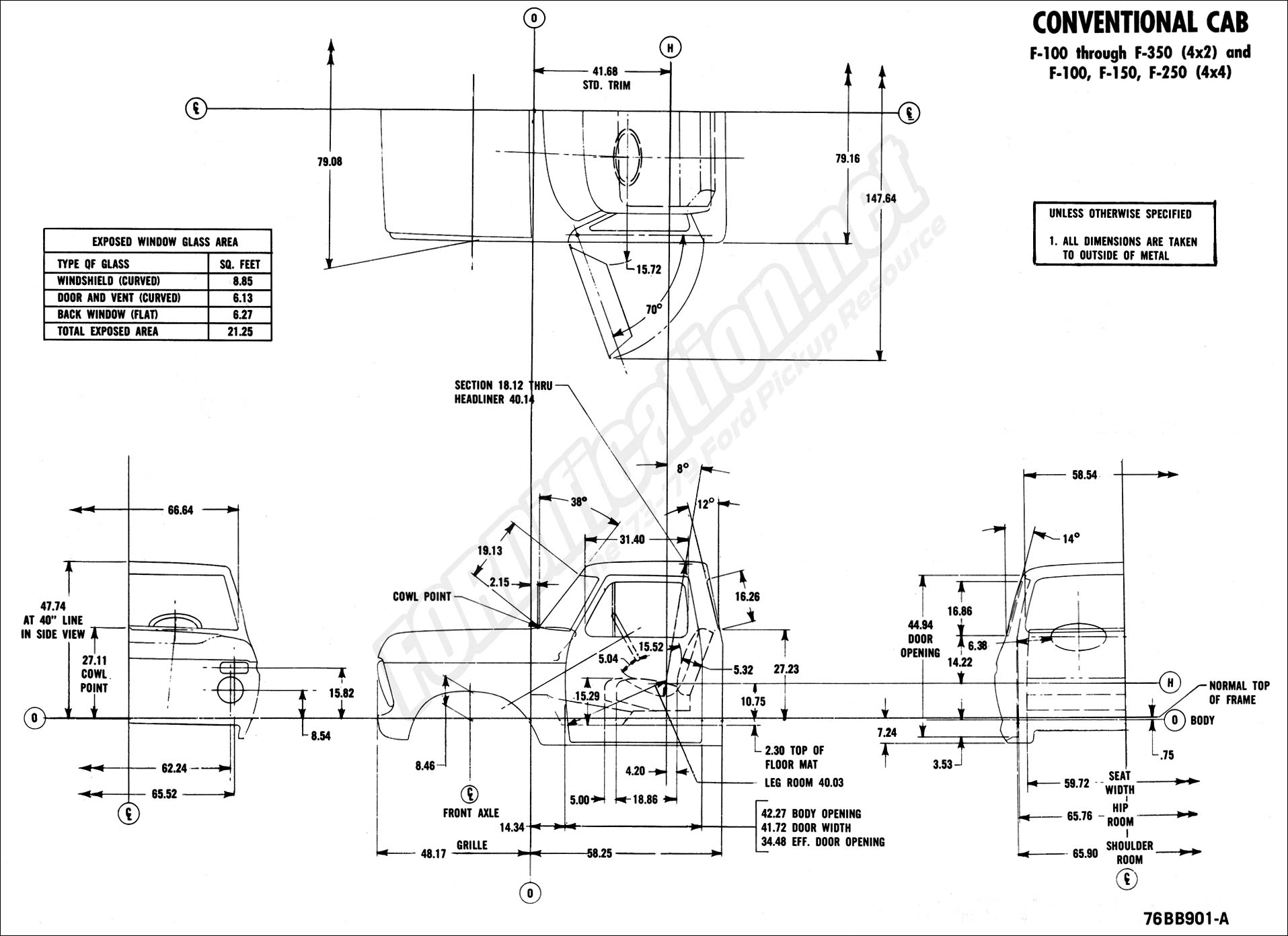

Conventional Cab F100 thru F350 (4x2) and F250 (4x4)

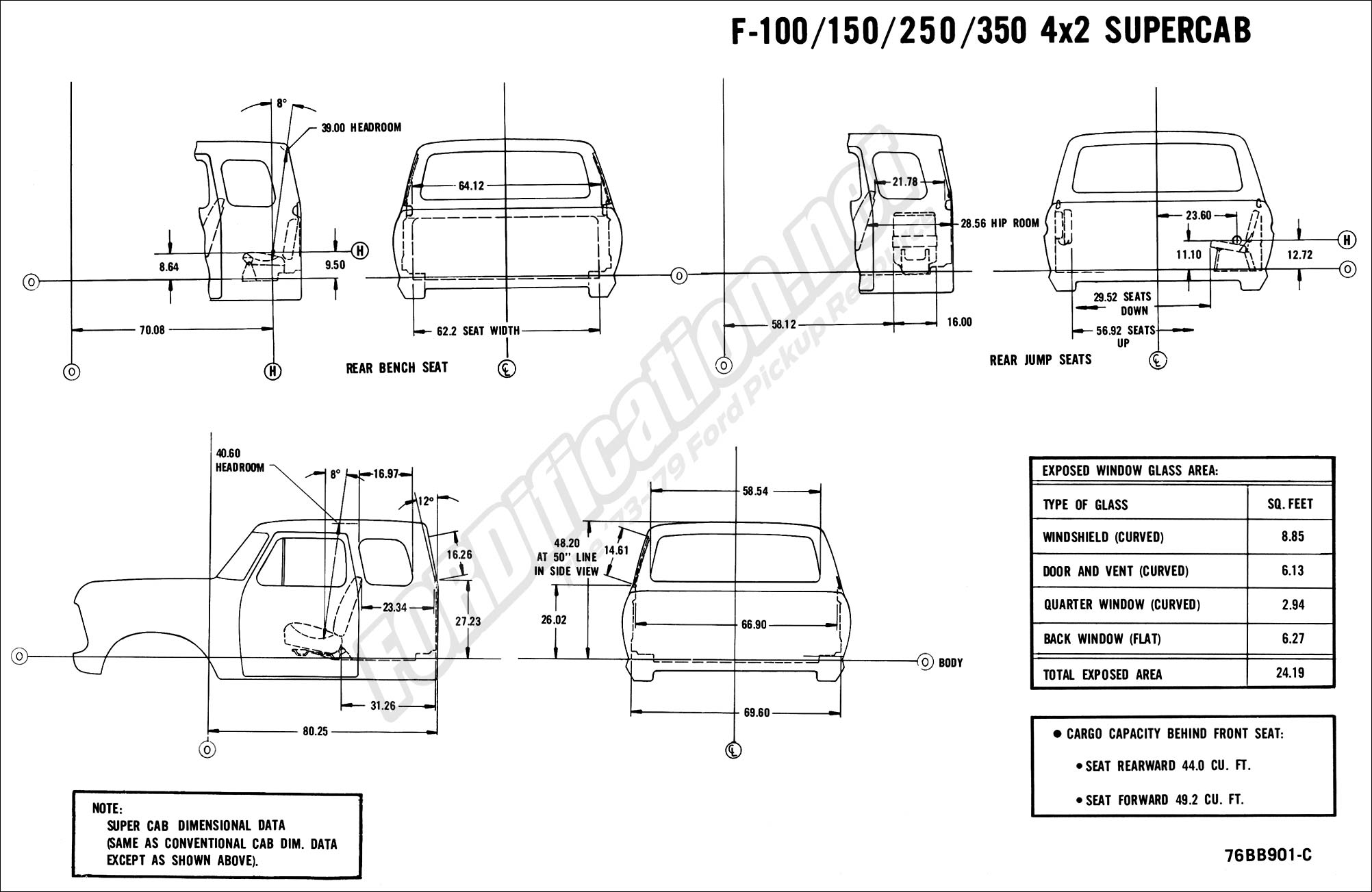

SuperCab F100-F350 (4x2)

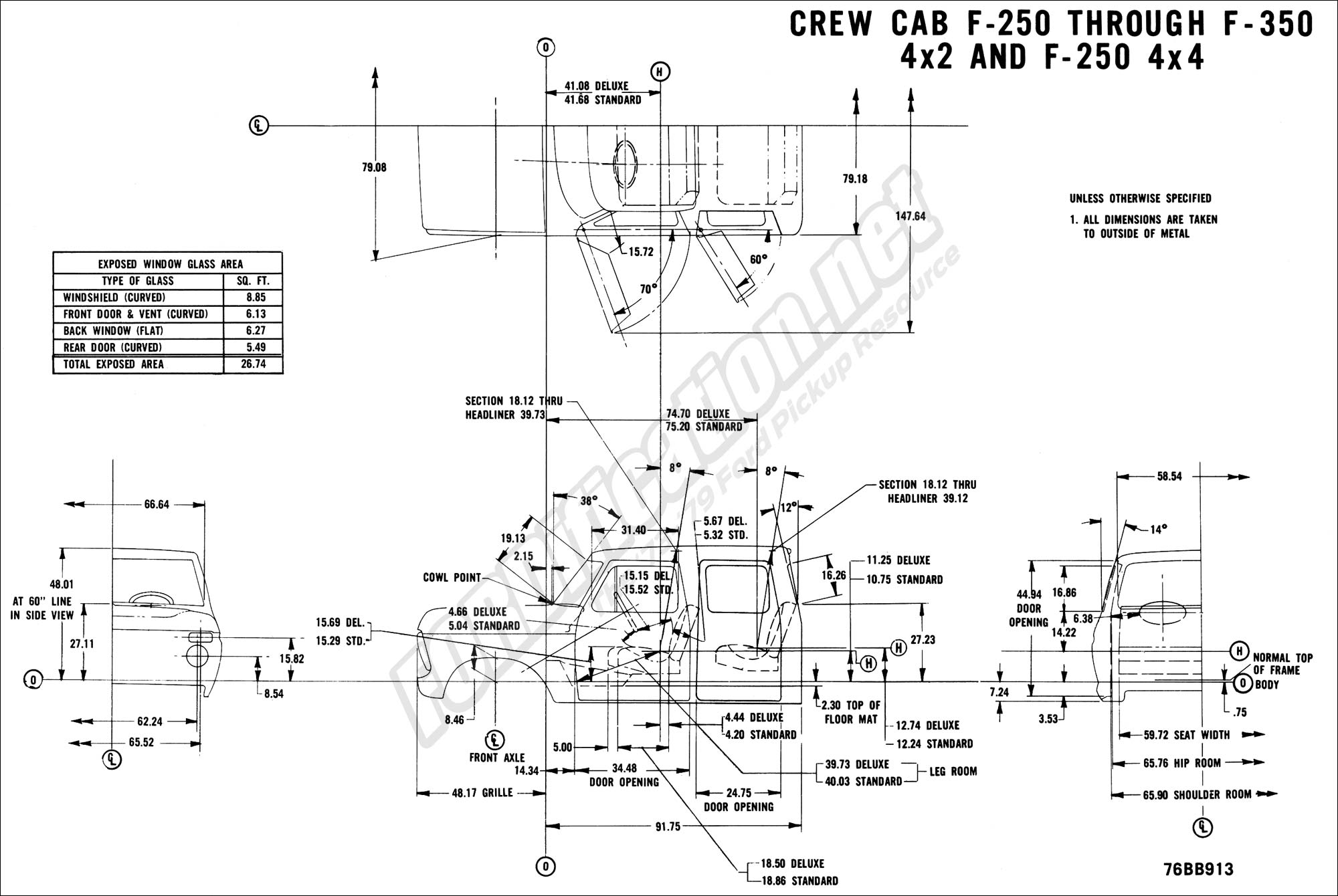

Crew Cab F250 thru F350 (4x2) and F250 (4x4)

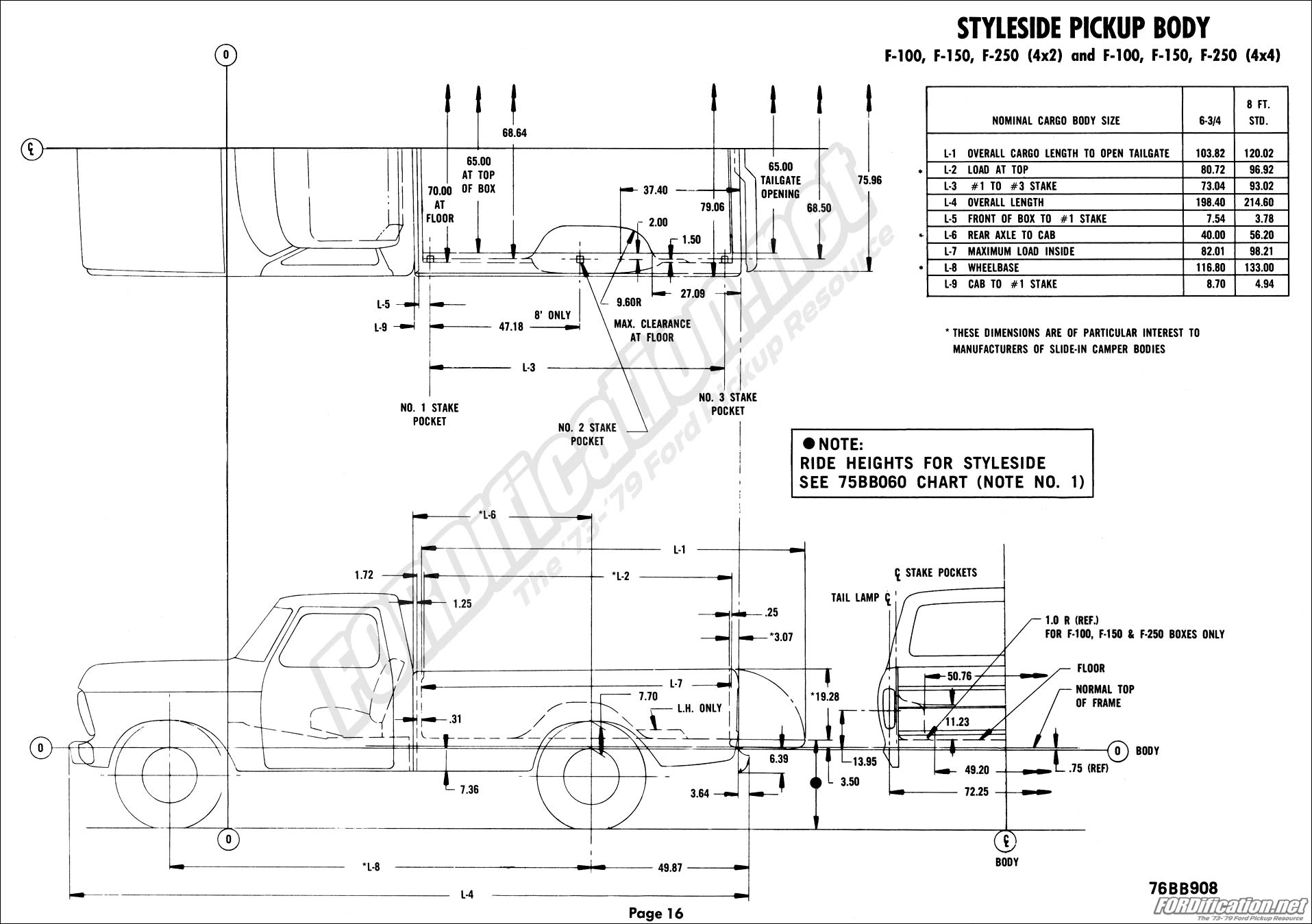

Styleside Pickup Body

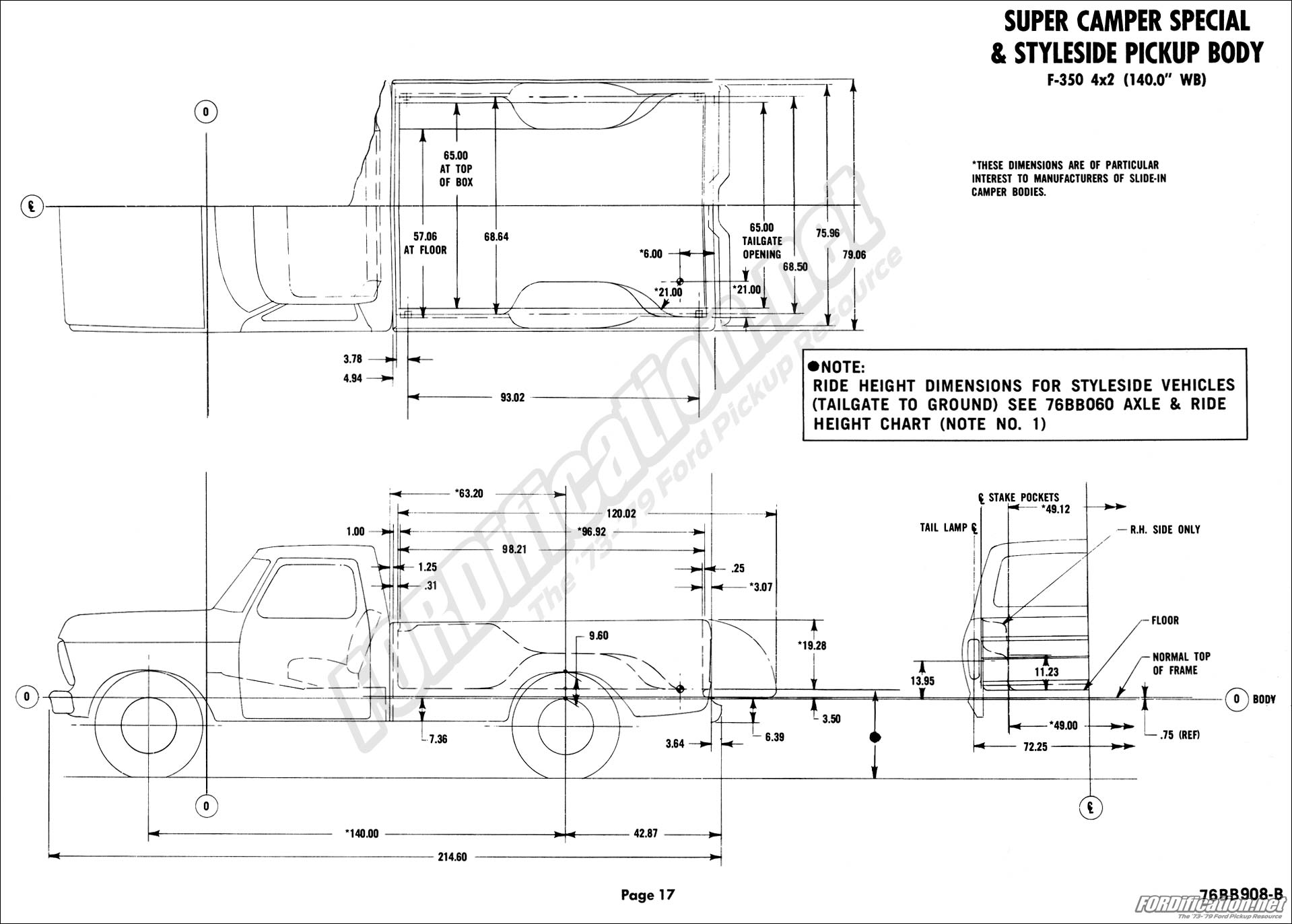

Super Camper Special Styleside F350

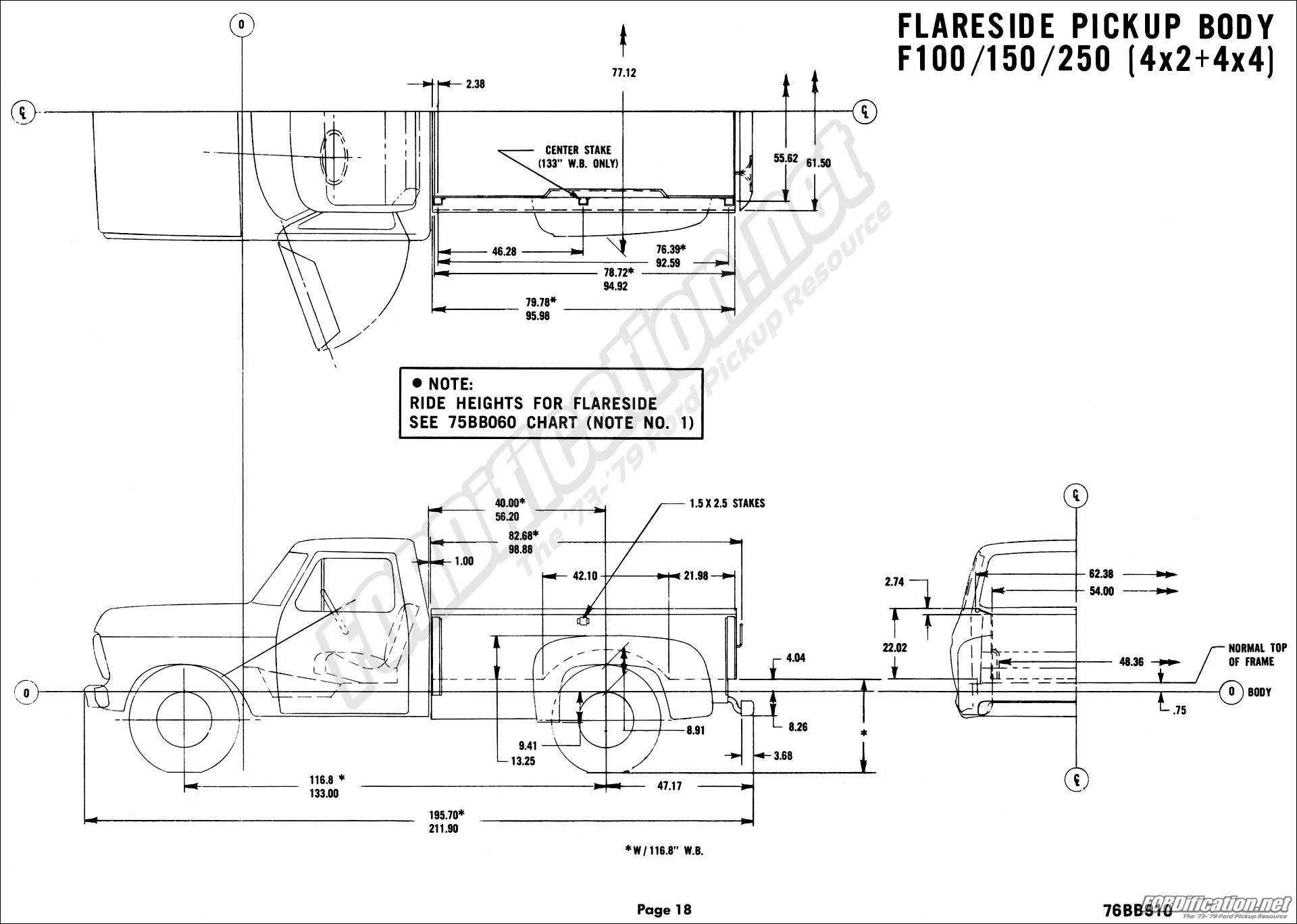

Flareside Pickup Body (F100/150/250 4x2 and 4x4)

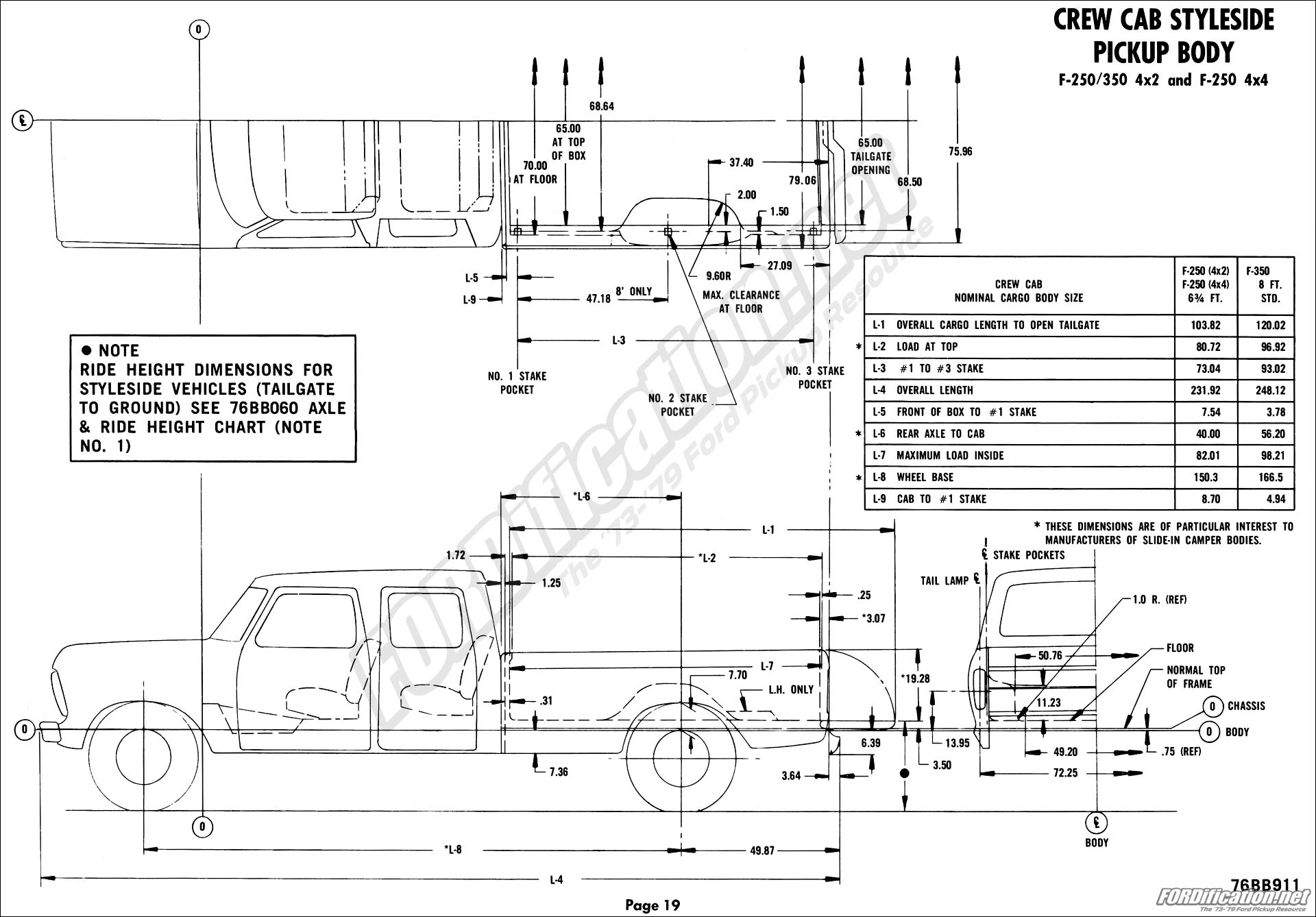

F250/350 Crew Cab - Pickup Body

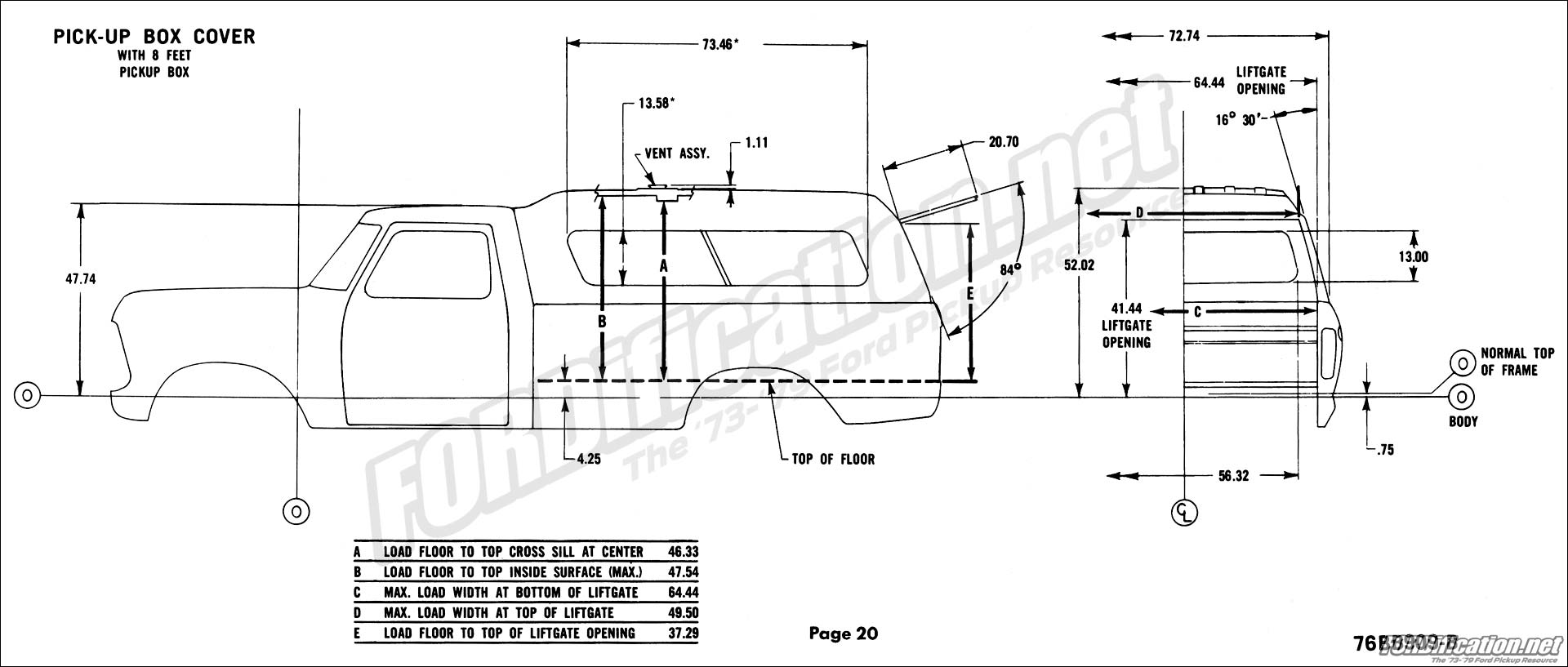

F-series Pickup Box Cover

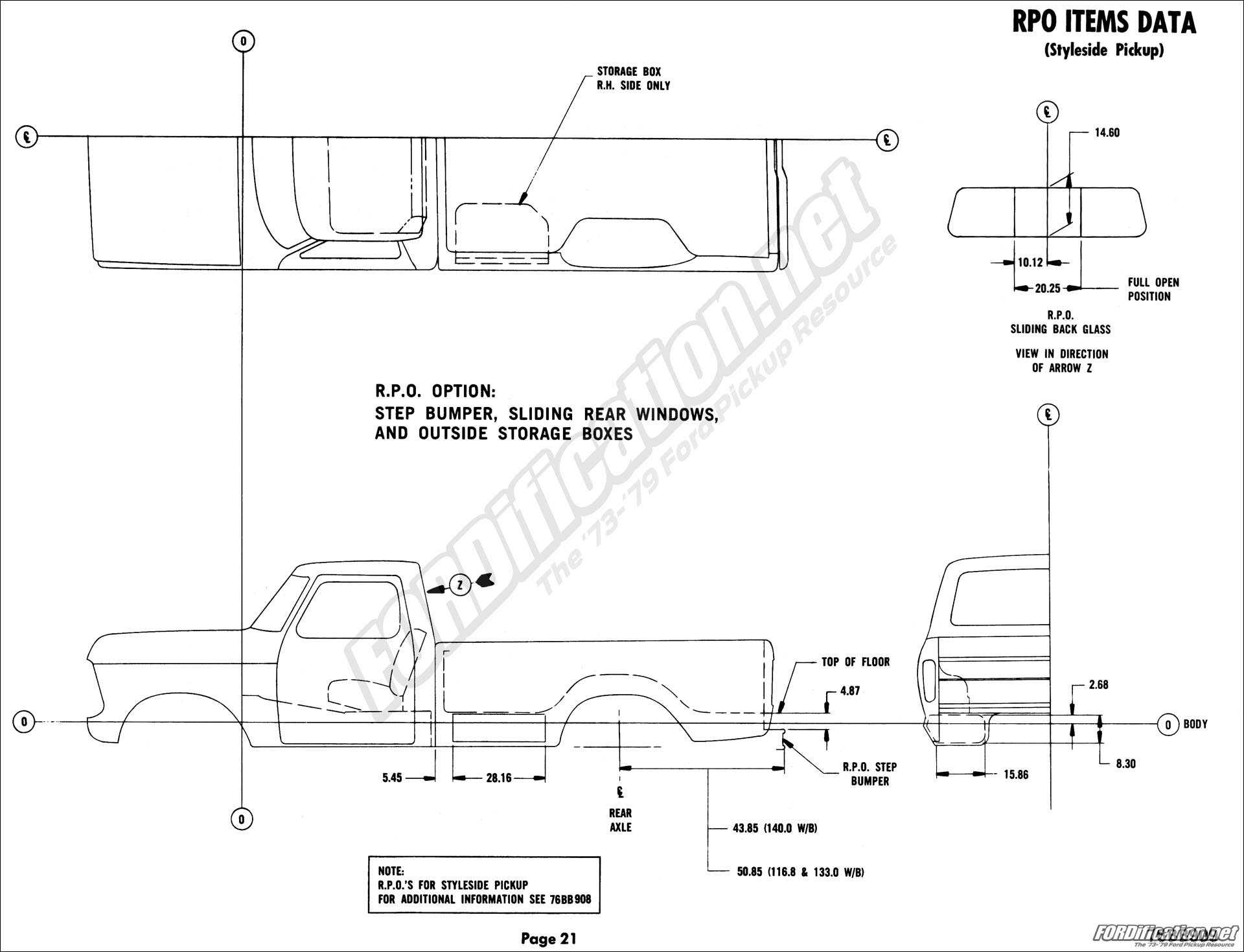

RPO Items Data (Styleside Pickup)

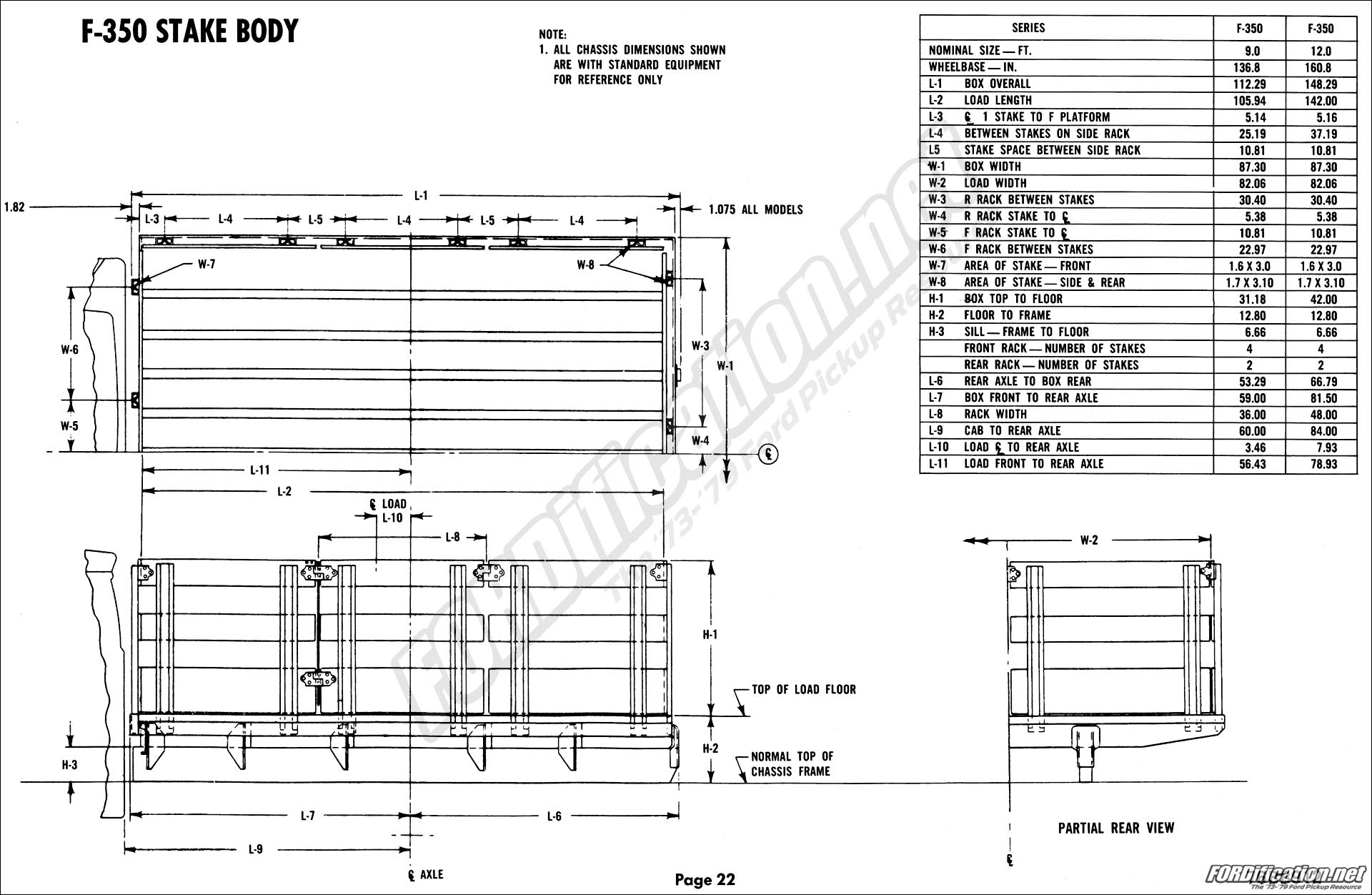

F350 Stake Body

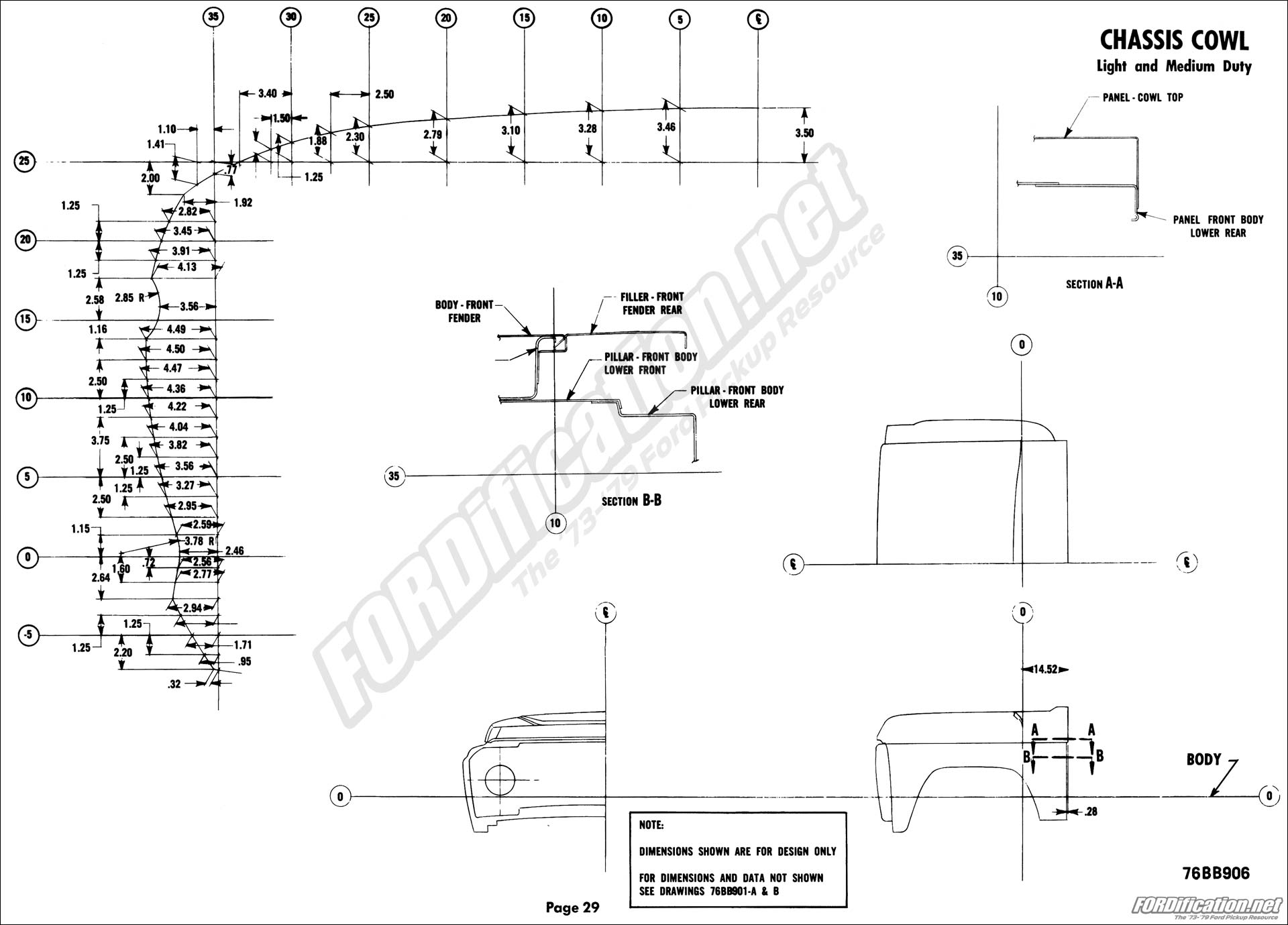

Chassis Cowl (Light and Medium Only)

Chassis Drawings

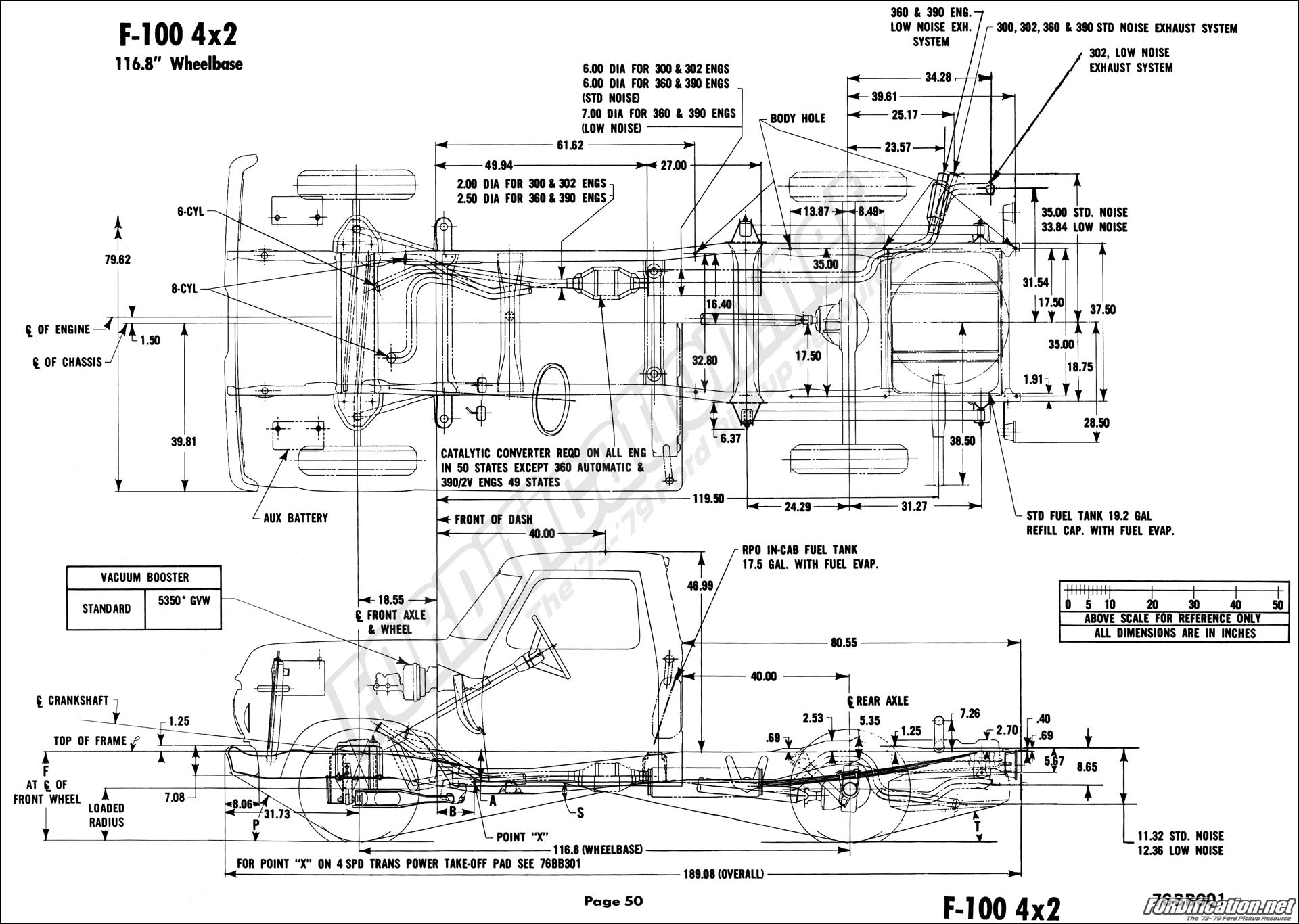

F100 4x2 (116.8" W.B.)  -  PAGE 01 - PAGE 02

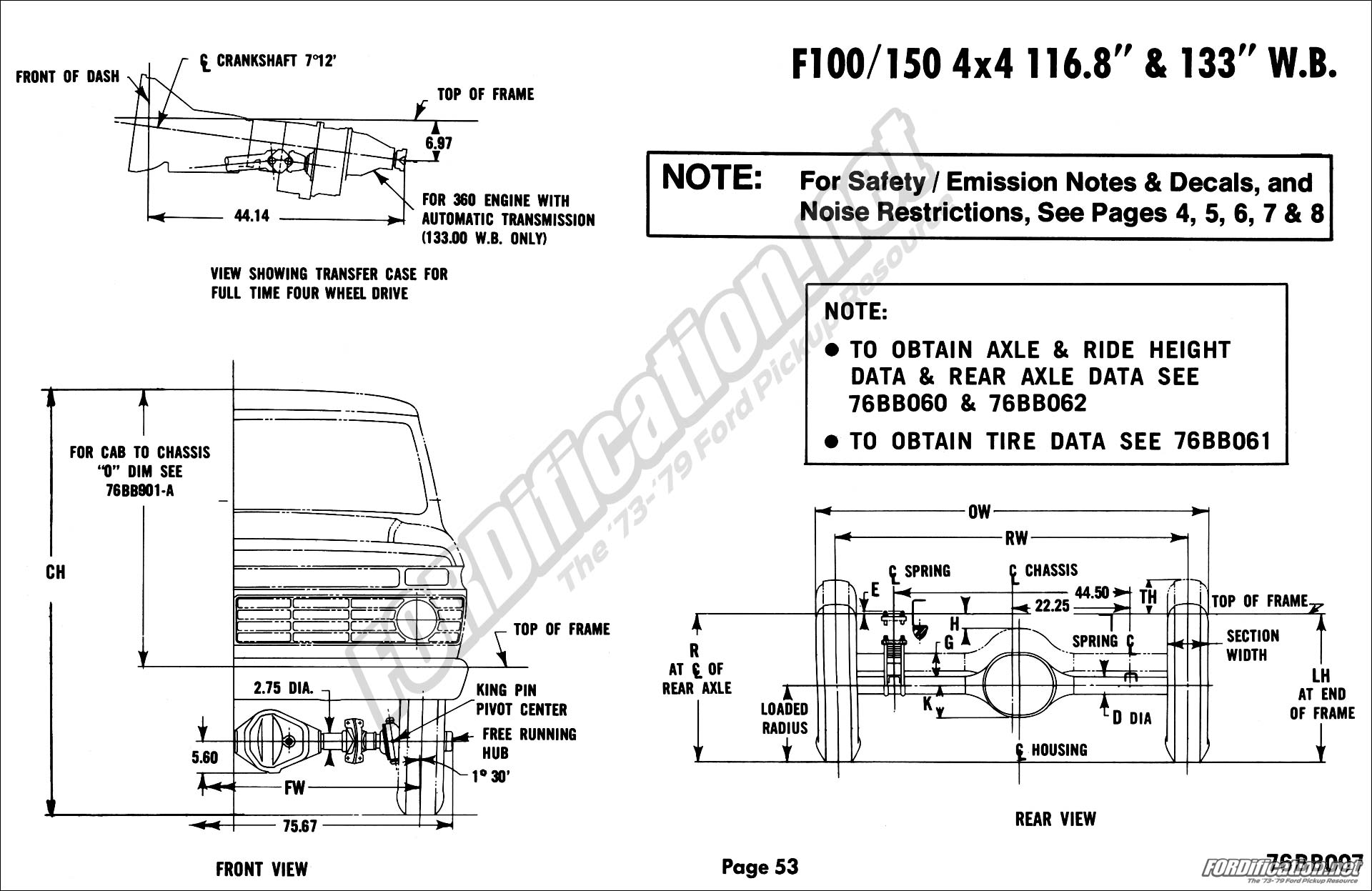

F100/F150 4x4 (116.8" & 133.0" W.B.)  -  PAGE 01 - PAGE 02

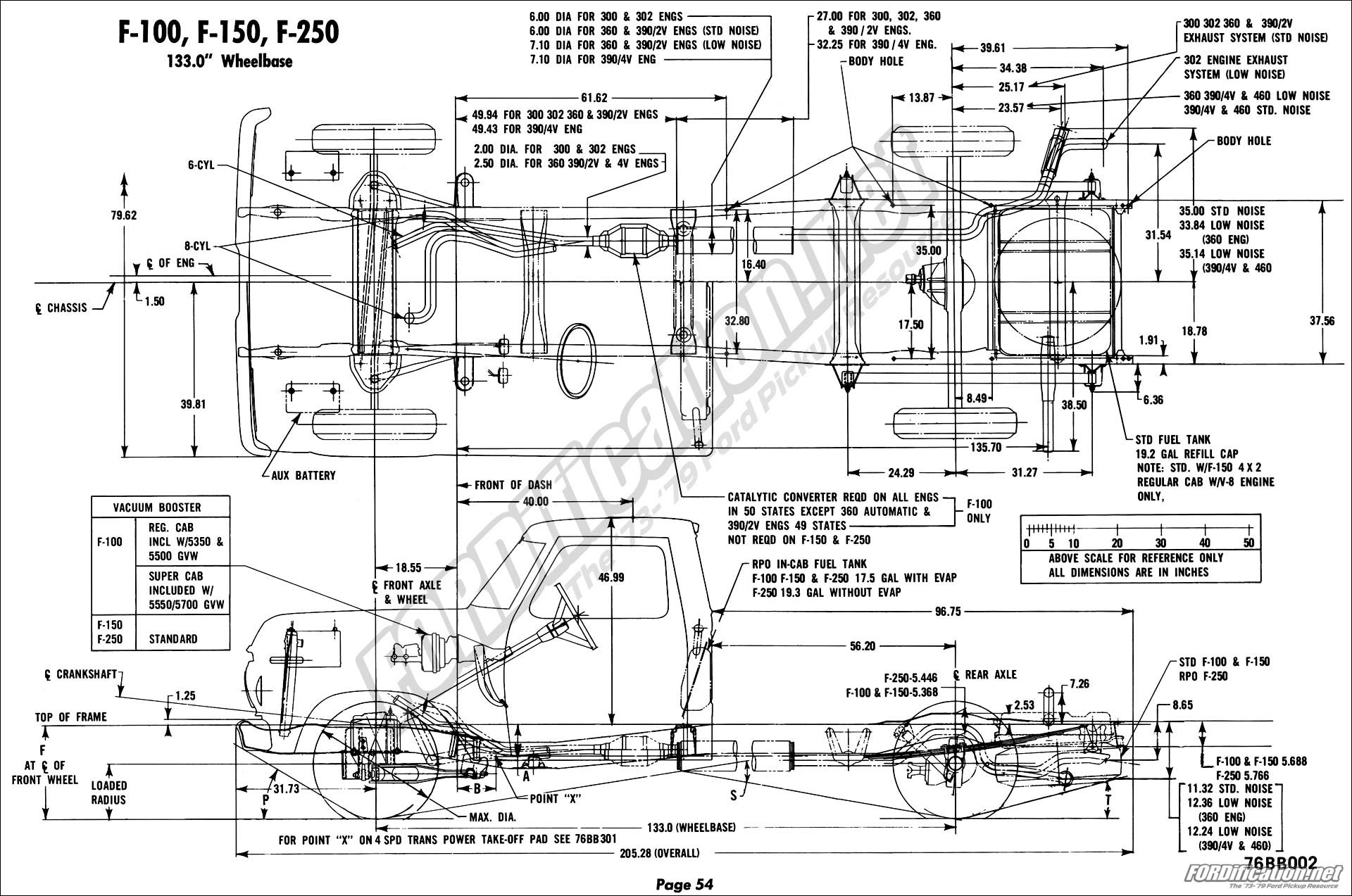

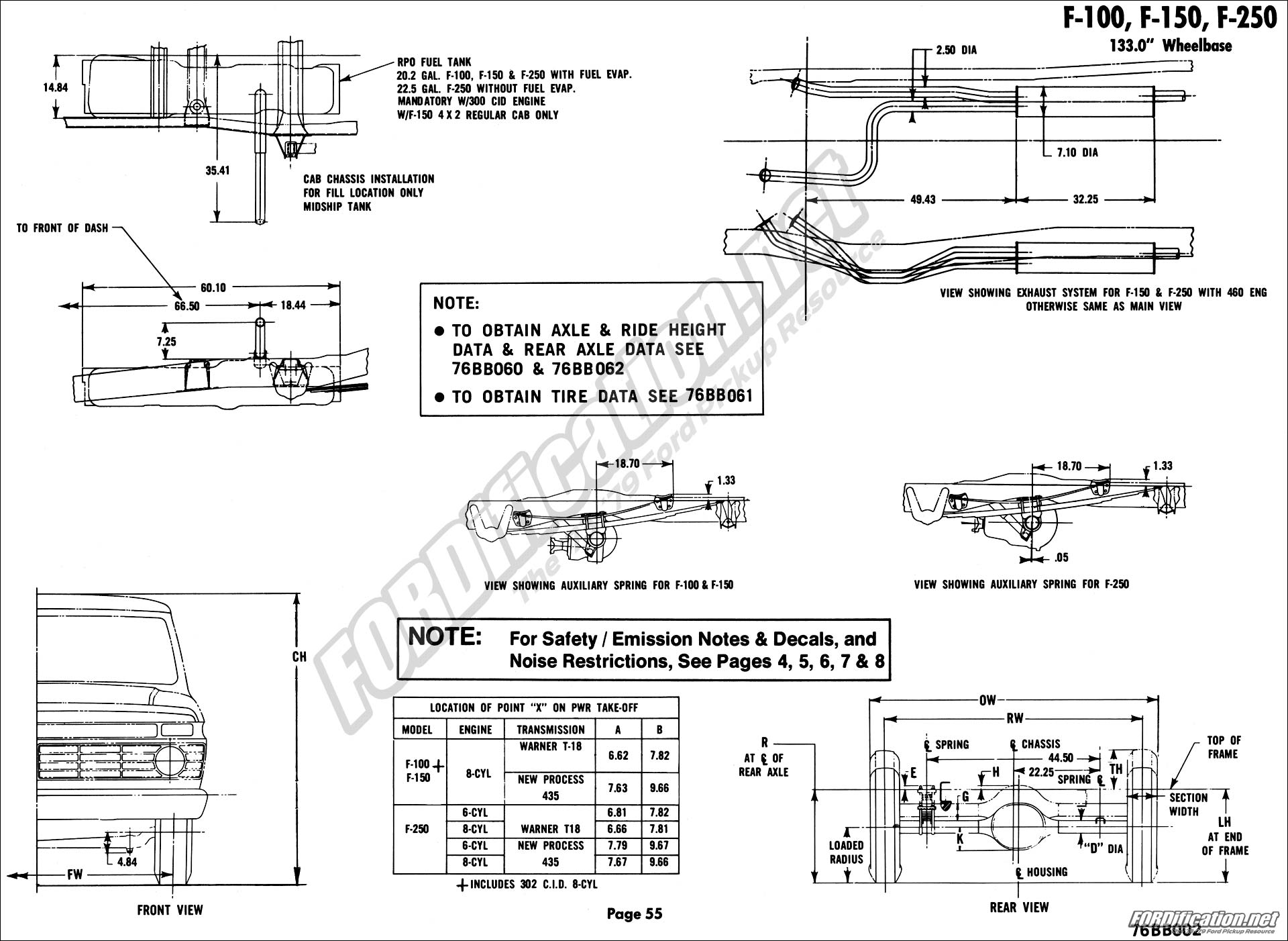

F100, F150, F250 (133.0" W.B.)  -  PAGE 01 - PAGE 02

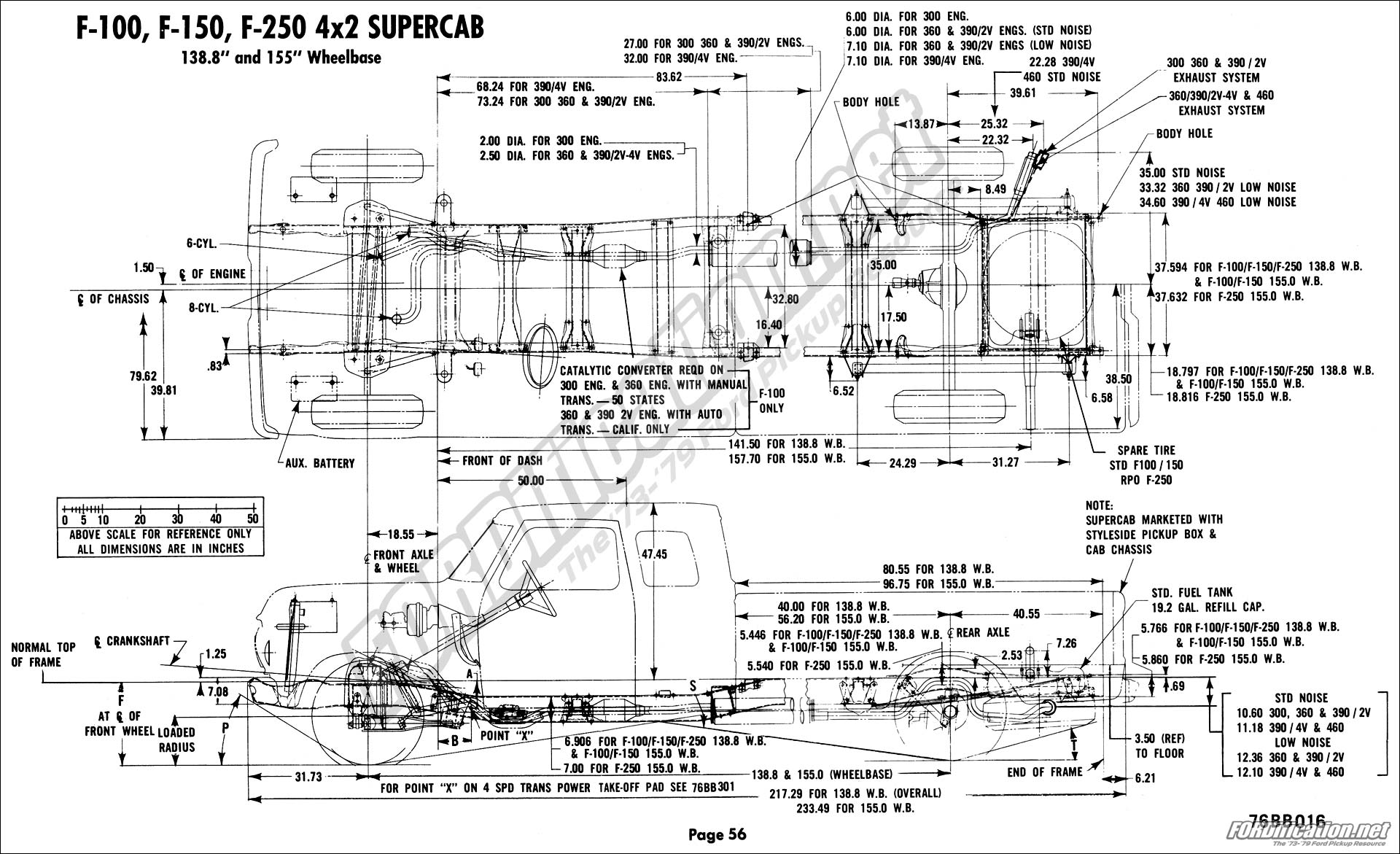

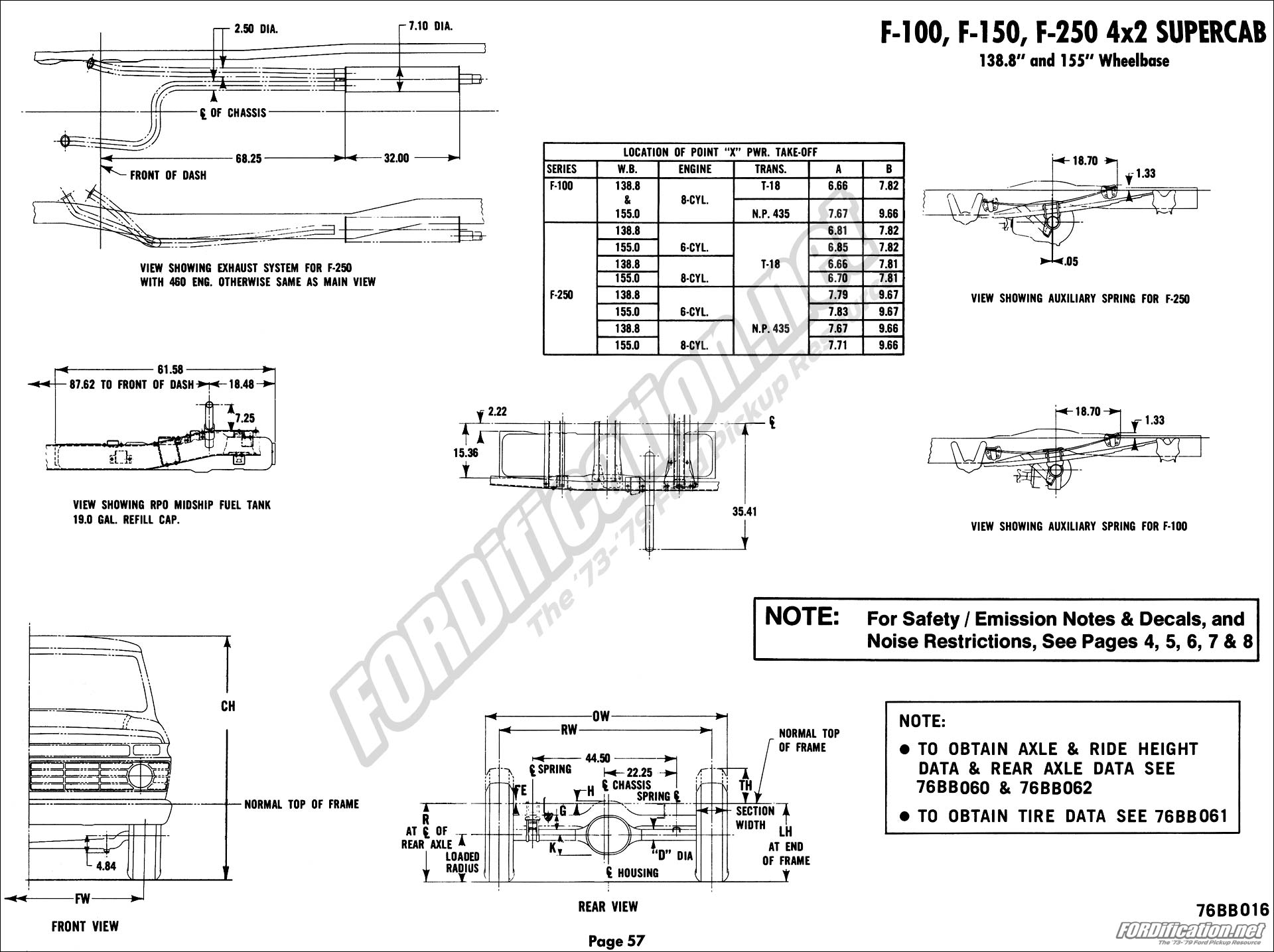

SuperCab - F100/150/250  -  PAGE 01 - PAGE 02

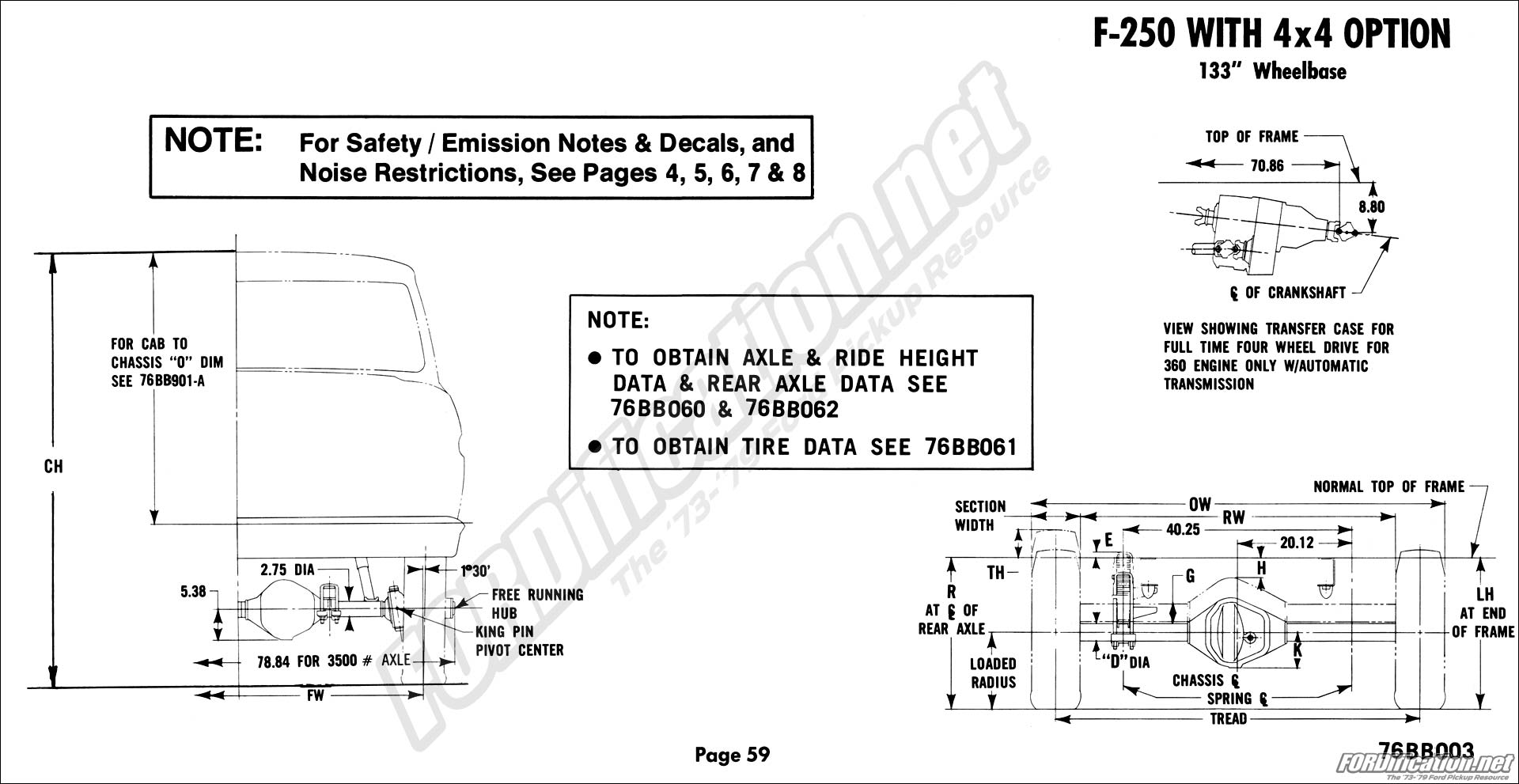

F250 4x4 (133.0" W.B.)  -  PAGE 01 - PAGE 02

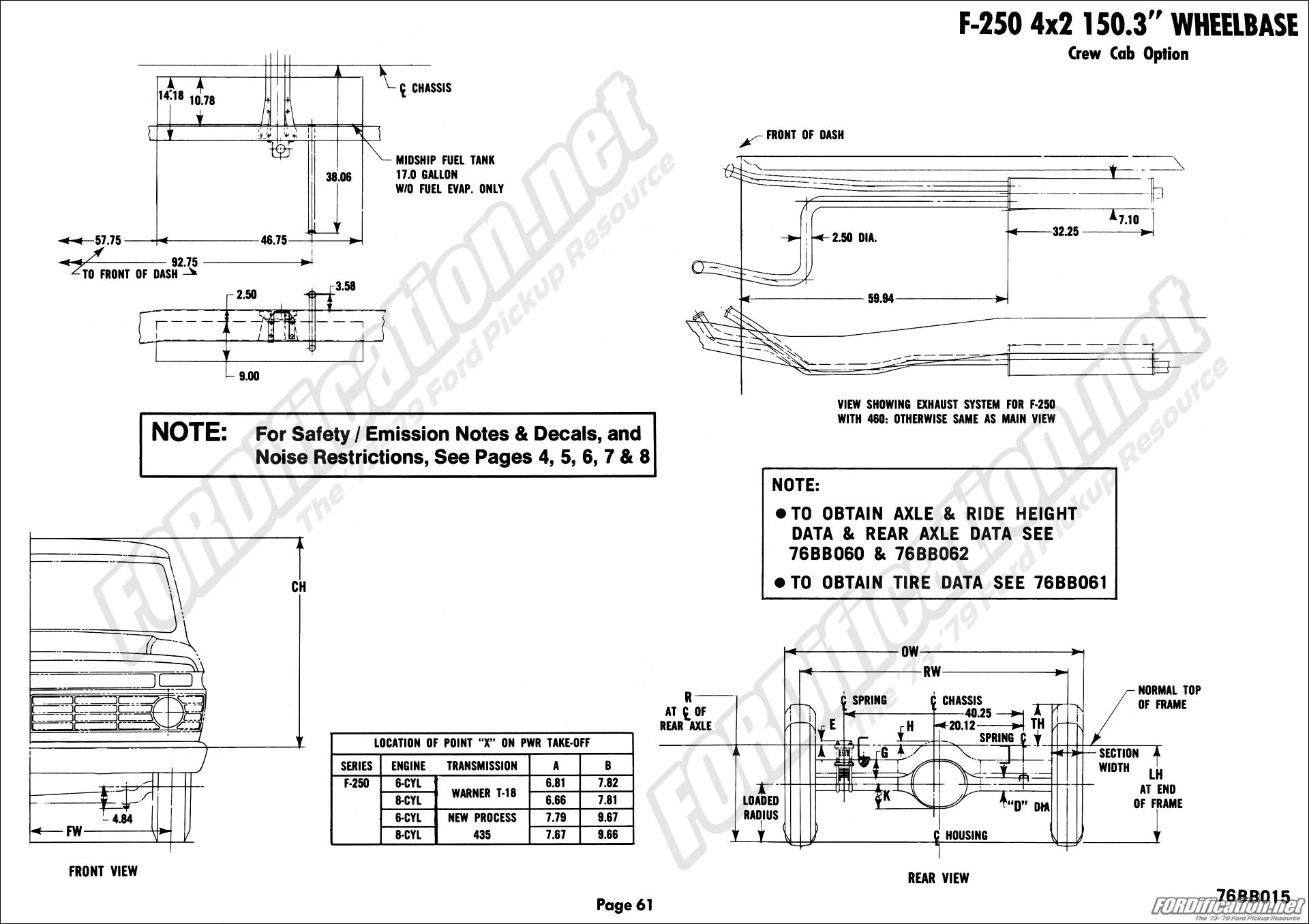

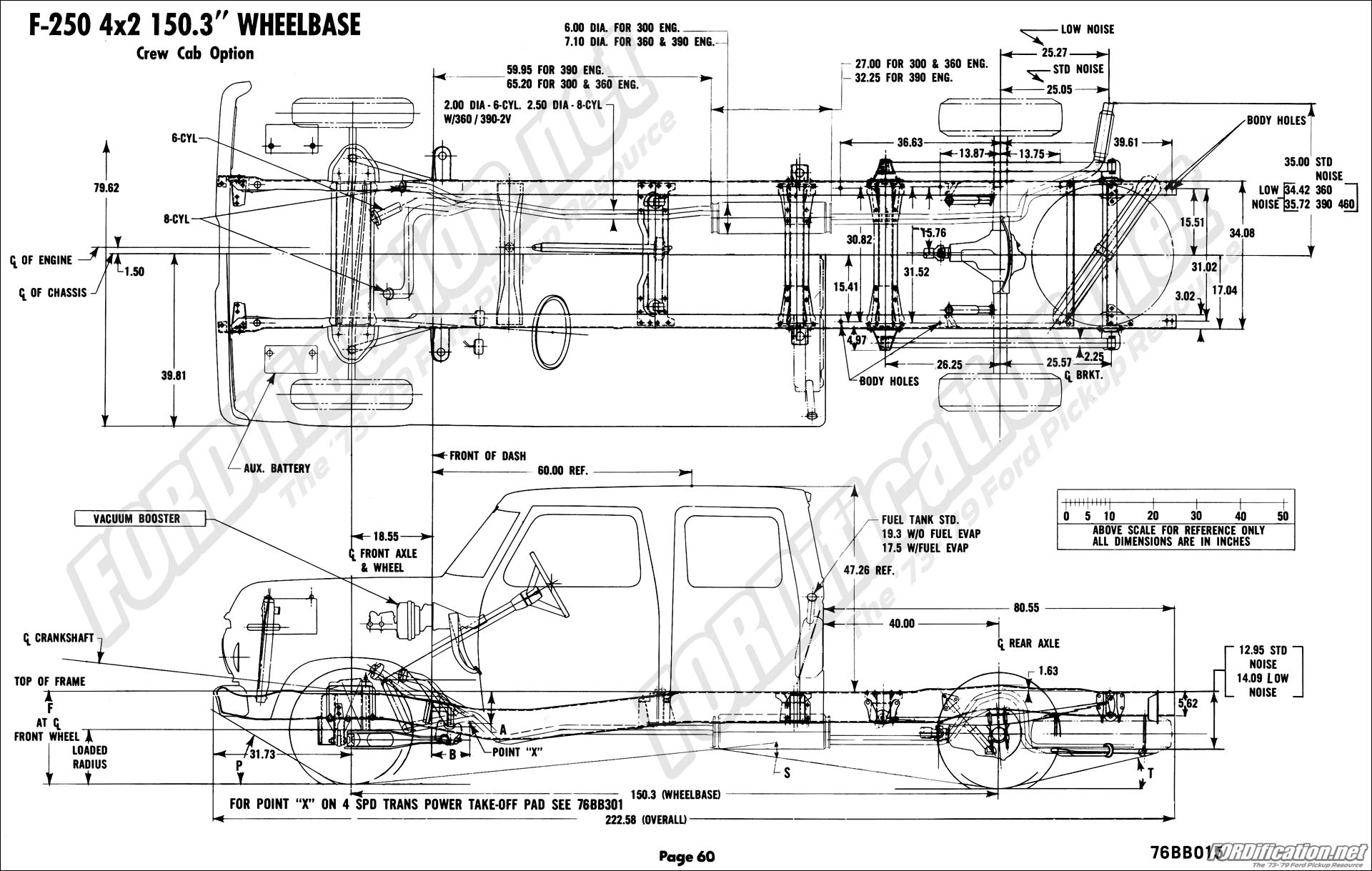

F250 4x2 (150.3" W.B.) Crew Cab Option  -  PAGE 01 - PAGE 02

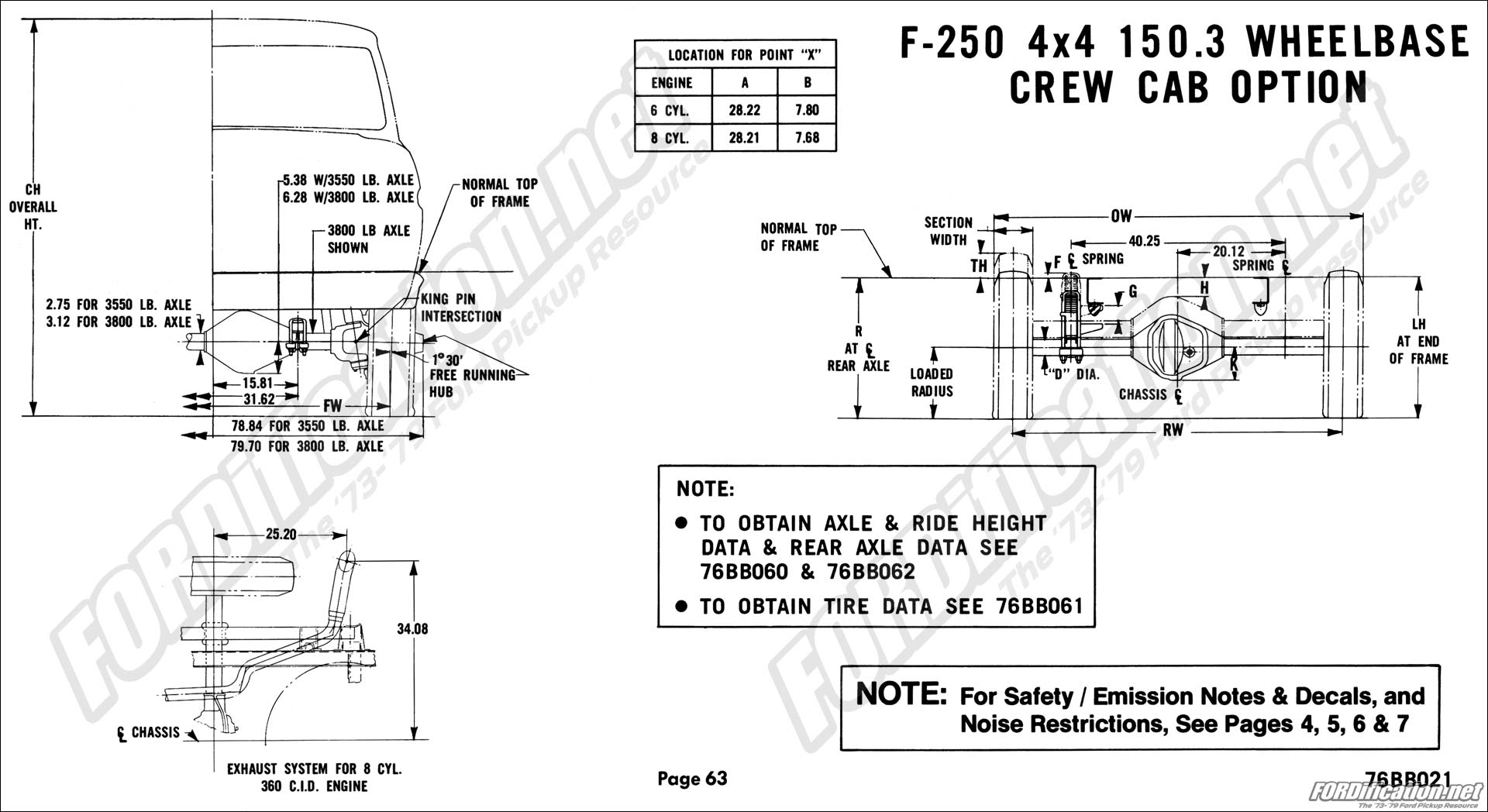

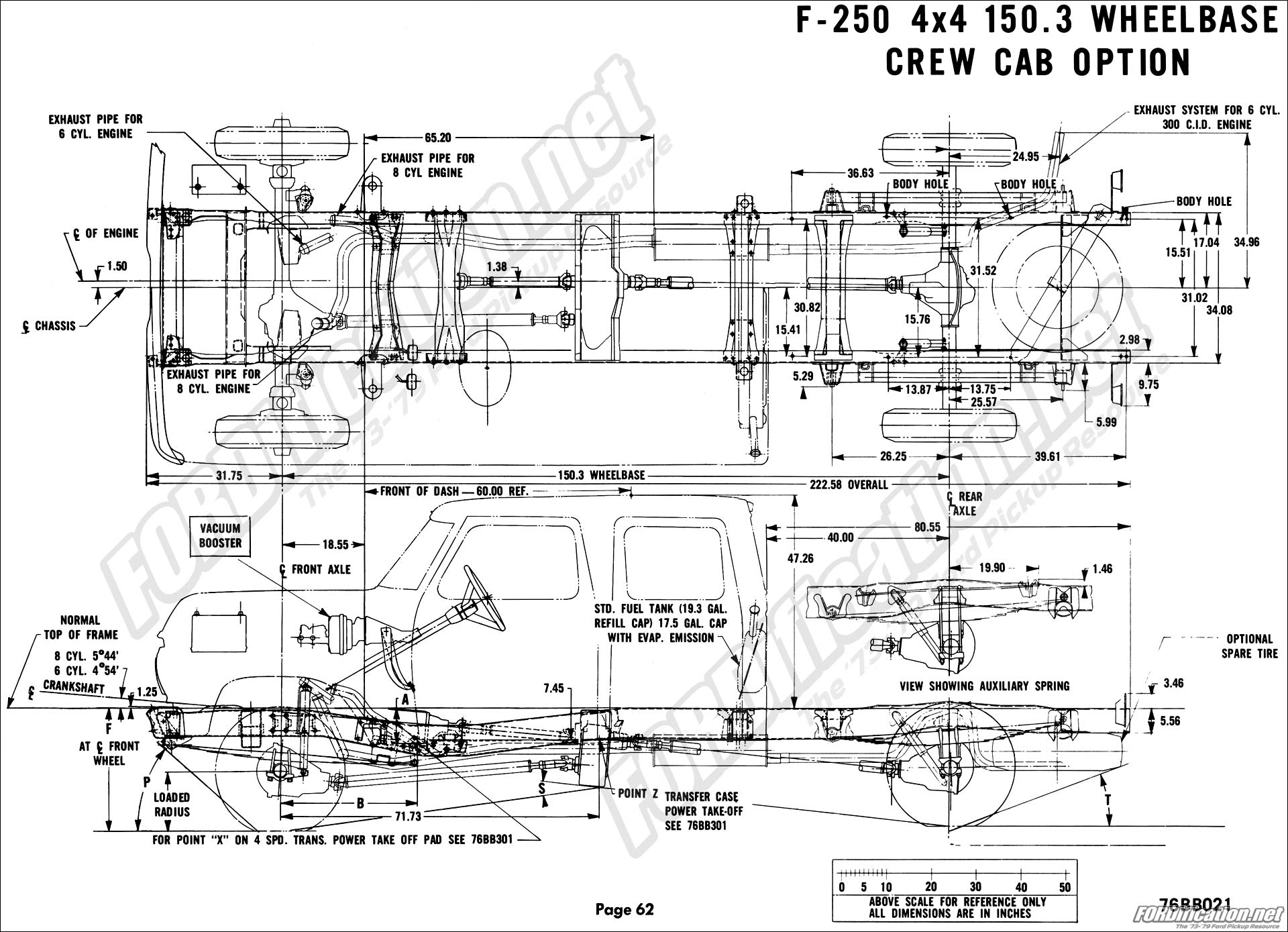

F250 4x4 (150.3" W.B.) Crew Cab Option  -  PAGE 01 - PAGE 02
F350 (136.8" & 160.8" W.B.)

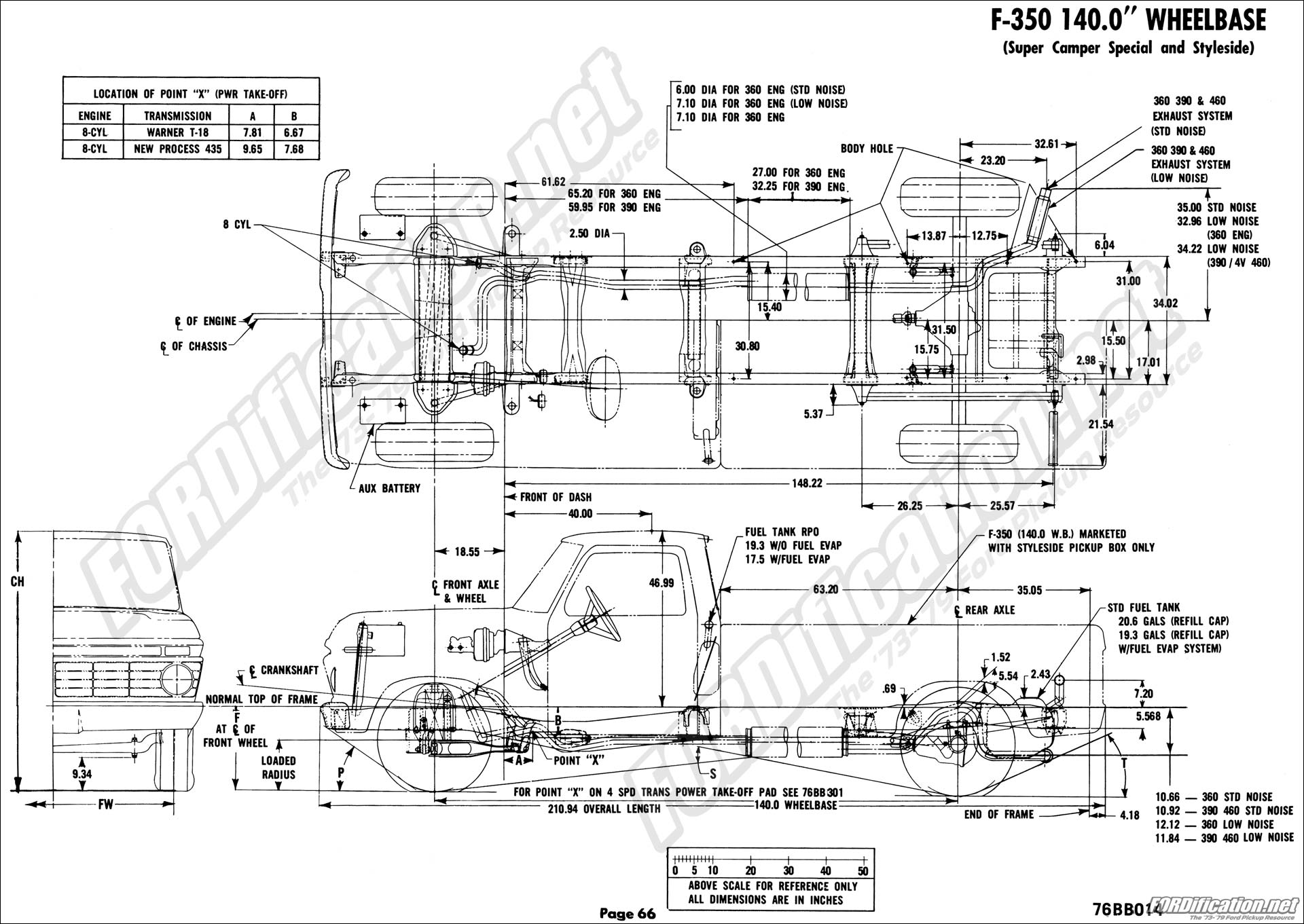

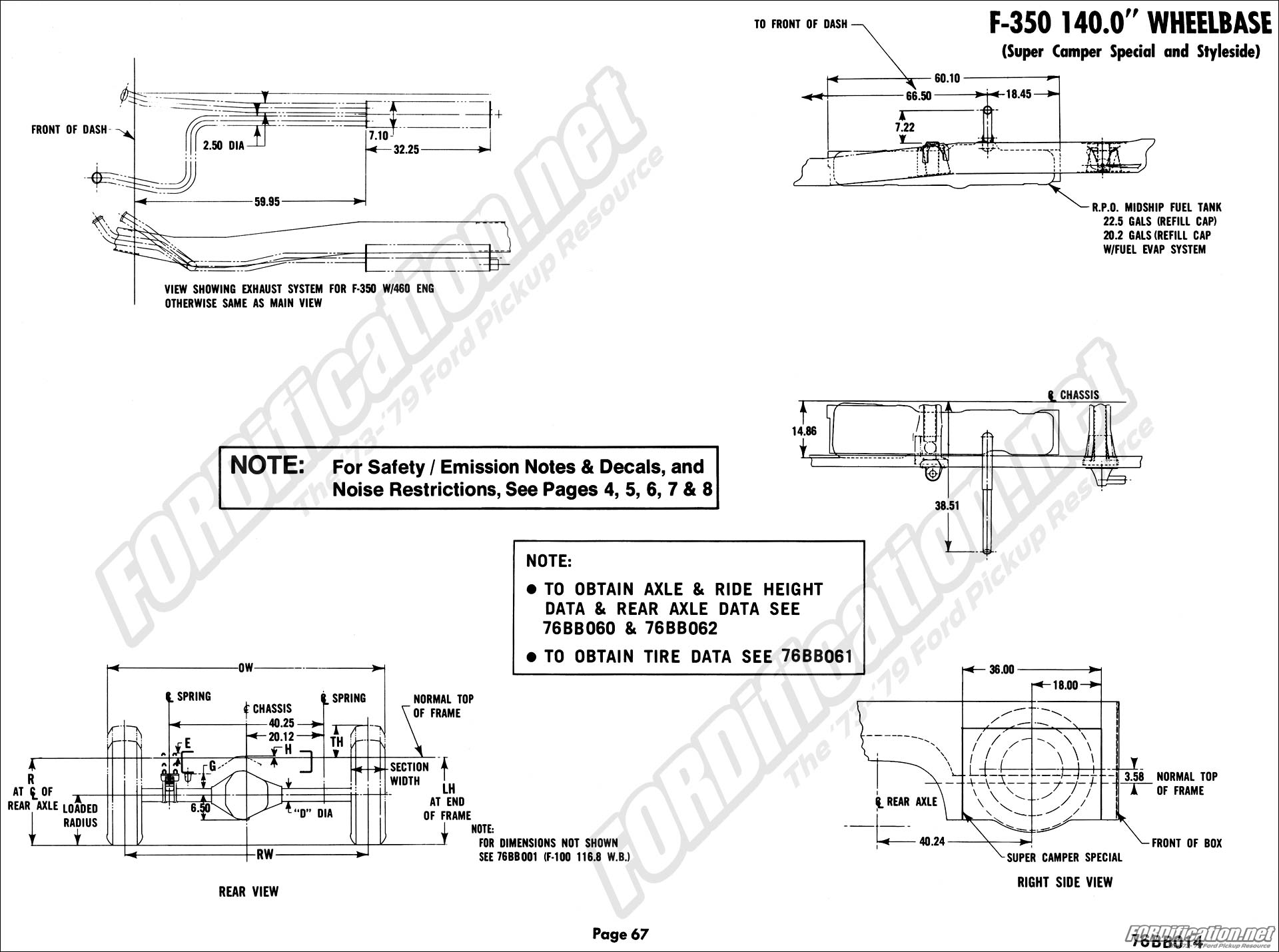

F350 (140.0" W.B. - Super Camper Special & Styleside)  -  PAGE 01 - PAGE 02
SuperCab - F350
F350 4x2 Crew Cab
F-Series Ride Height
F-Series Tire
F-Series Rear Axle
