Body Mount Bushings and Hardware



NOTE: Items listed here specifically pertain to '73-'79 Ford F100/350 trucks, but may have other applications (other Ford car/van/truck models) that are not included.

All part numbers and specifications are as reported in the 1973-1979 Ford Truck Master Parts Catalog unless otherwise noted.

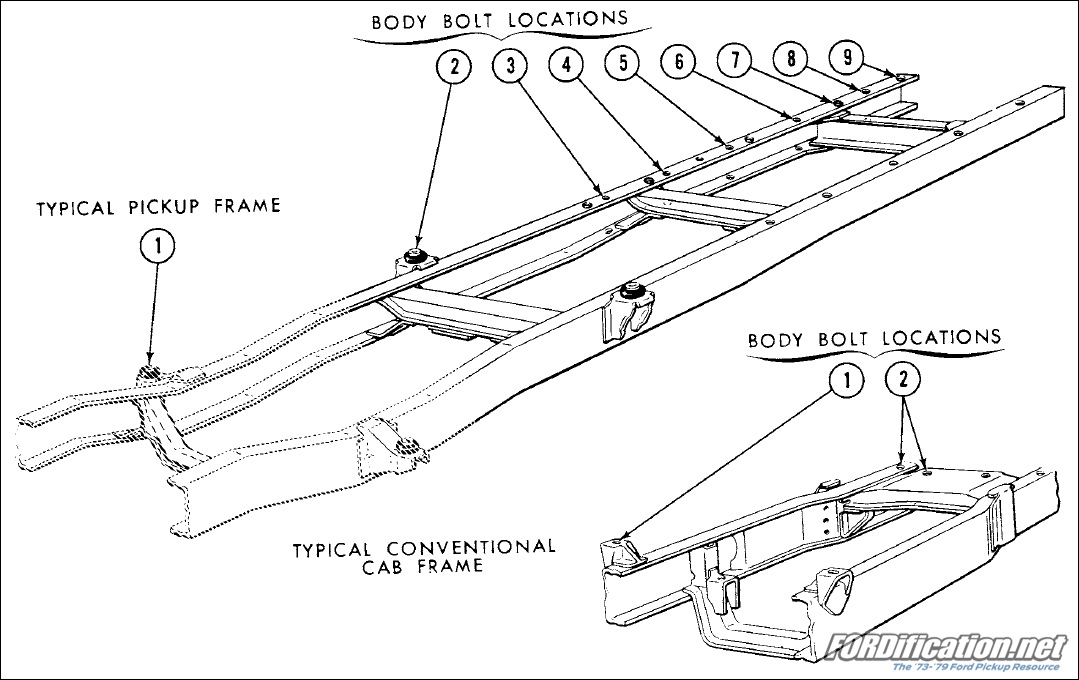

Body mount locations

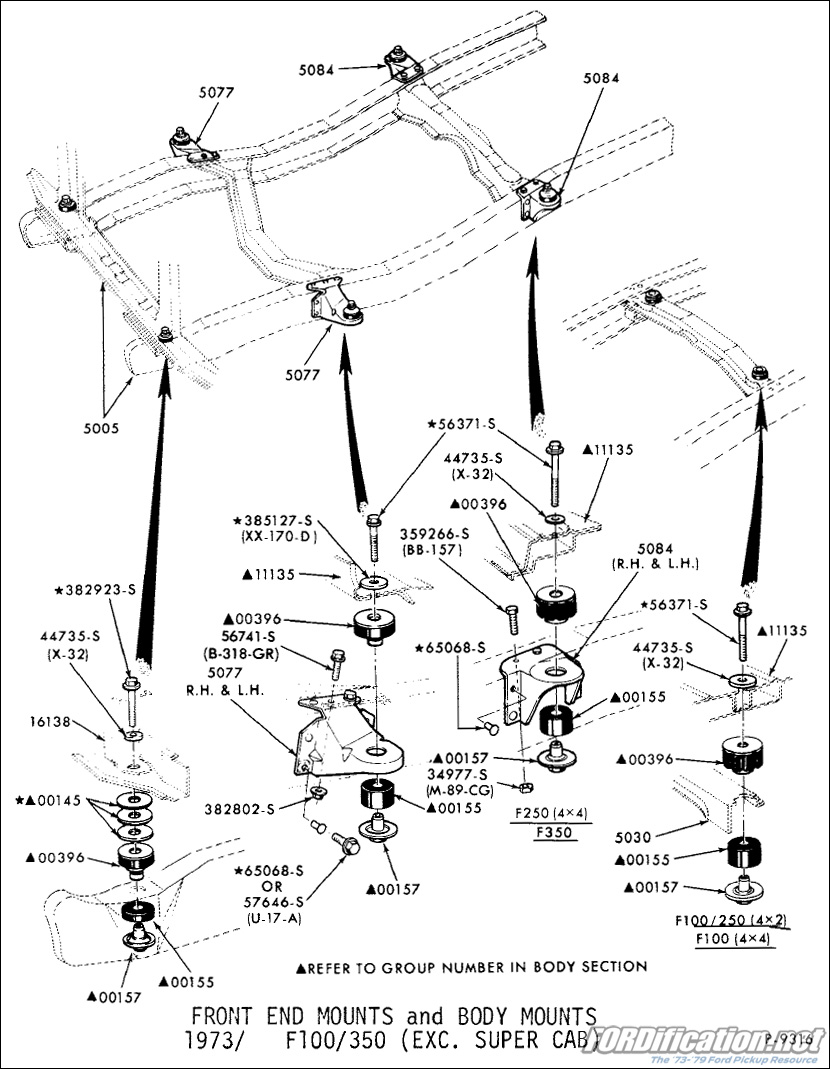

Front End Mounts and Body Mounts
1973-1979 F100/350 (exc. Super Cab)

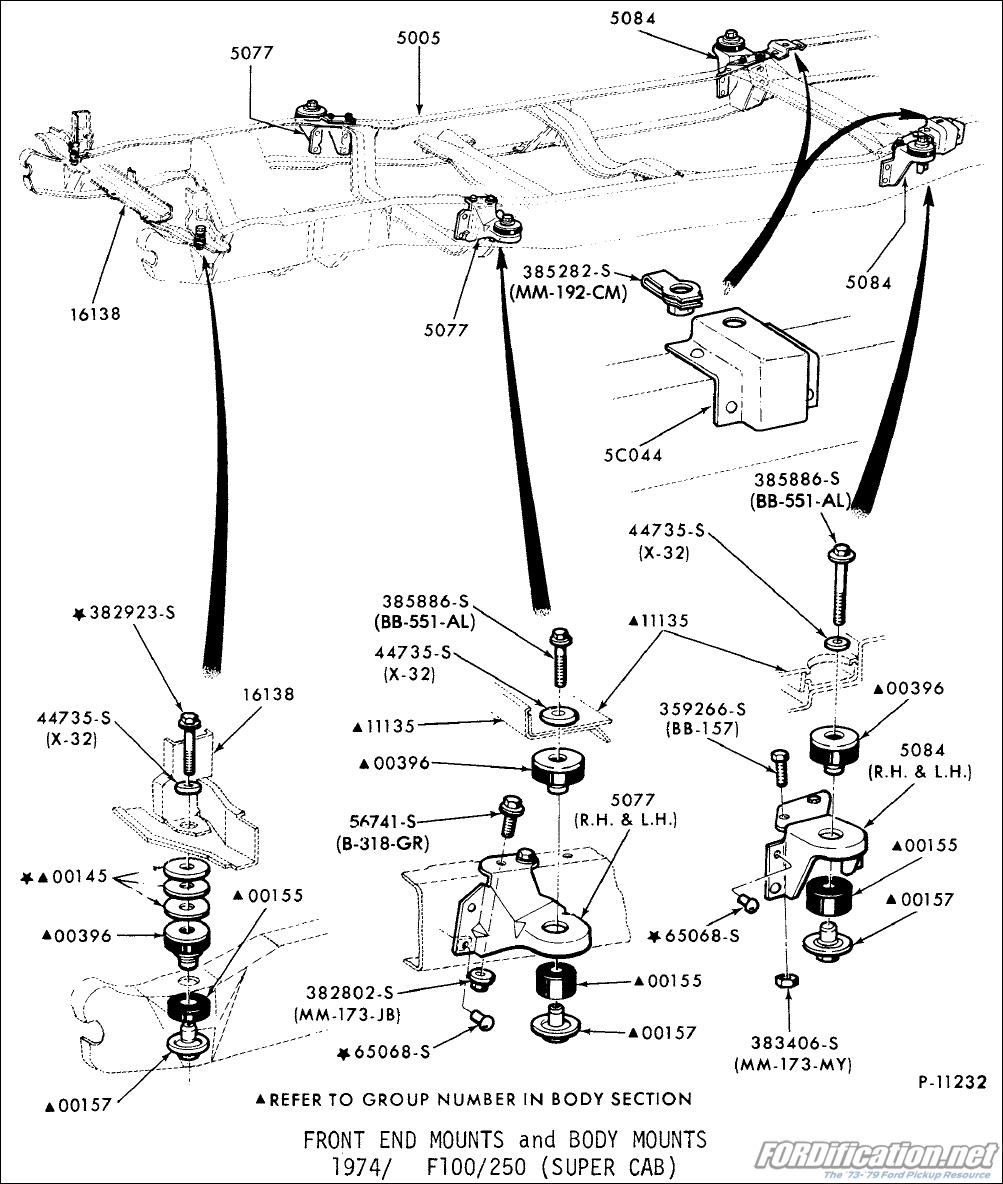

Front End Mounts and Body Mounts
1974-1979 F100/250 (Super Cab)


1973-1979 F100/350 Body Mount Bushings
Year Description Part Number
73/79 F100/350 31/32" I.D. x 2 9/32" O.D, x 7/8" thick - lower D3TZ-1000155-B
73/79 F100/350 15/16" I.D. x 2 5/8" O.D. x 1 3/8" thick - lower D3TZ-1000155-A
73/78 F100/350
"Before Ser. AG0,001"		 15/16" I.D. x 2 5/8" O.D. x 1 5/16" thick - lower C7TZ-8100155-A
78/79 F100/350
"From Ser. AG0,001"		 7/8" I.D. x 2 5/8" O.D. x 1 5/16" thick - lower D8TZ-1000155-A
73/79 F100/350 2 1/2" high - # FRONT D3TZ-1000396-B
73/79 F100/350 1 3/4" high - # REAR D8TZ-1000396-A
73/79 F100/350 2 5/32" high - # FESM D3TZ-1000396-C
73/74 F100/350 Shim, body mount C9AZ-6200145-A
# Identification

BODY BOLT CHART
YEAR MODEL PART NAME

PART NUMBER OR REMARKS
BODY BOLT LOCATION NO. 1
73/74 F100/350 Absorber - retainer assy. - upper D3TZ-1000396-C
Absorber - lower - 31/32" I.D. x 2 9/32" O.D. x 7/8" thick D3TZ-1000155-B
Bolt - hex. hd. - 7/16"-l4 x 3 1/4" 382923-S2
Retainer - lower D3TZ-1000157-A
Shim C3AA-6200145-C
Washer - flat - 1/2" 44735-S8
75/ F100/350
(Regular and Crew Cab)		 Absorber - retainer assy. - upper D3TZ-1000396-C
Absorber - lower - 31/32" I.D. x 2 9/32" O.D. x 7/8" thick D3TZ-1000155-B
Bolt - hex. hd. - 7/16"-14 x 3 1/4" 382923-S2
Retainer - lower D4TZ-1000157-B
Shim C3AA-6200145-C
Washer - flat - 1/2" 44735-S8
BODY BOLT LOCATION NO. 2
73/74 F100/350 (81) Absorber - retainer assy. - upper D3TZ-1000396-B
Absorber - lower - 15/16" I.D. x 2 5/8" O.D. x 1 3/8" thick D3TZ-1000155-A
Bolt - hex. hd. 7/16"-14 x 3 1/4" 382923-S2
Retainer - lower C9TZ-8100157-A
Washer - flat - 7/16" 385127-S2
75/ F100/350
(Regular and Crew Cab)		 Absorber - retainer assy. - upper D3TZ-1000396-B
Absorber - lower - 15/16" I.D. x 2 5/8" O.D. x 1 3/8" thick D3TZ-1000155-A
Bolt - hex. hd. - 7/16"-14 x 5 1/4" 384630-S2
Retainer - lower D4TZ-1000157-A
Washer - flat - 7/16" 385127-S2
BODY BOLT LOCATION NO. 3
73/74 F100/350 (81) Absorber - retainer assy. - upper D3TZ-1000396-A
Absorber - lower - 15/16" I.D. x 2 5/8" O.D. x 1 15/16" thick C7TZ-8100155-A
Bolt - hex. hd. - 7/16"-14 x 3 3/4" 56371-S2
Retainer - lower C9TZ-8100157-A
Washer - flat - 1/2" 44735-S8 (X-32)
75/ F100/350
(Regular and Crew Cab)		 Absorber - retainer assy. - upper D3TZ-1000396-A
Absorber - lower - 15/16" I.D. x 2 5/8" O.D. x 1 15/16" thick C7TZ-8100155-A
Bolt - hex. hd. - 7/16"-14 x 5 1/4" 384630-S2
Retainer - lower D4TZ-1000157-A
Washer - flat - 7/16" 44735-S8(X-32)
BODY BOLT LOCATION NO. 4
73/ F100/250 (83) Nut - lock - 1/2"-13 33773-S2
Nut & retainer assy.-1/2"-13 382282-S2
Screw - rd. washer head tapping -  No. 8-18 x 1/2" 56902-S2
Screw - Phillips hd. - 1/2"-13 384913-540
Spacer D3TB 83107A36-C
Washer - 1/2" 351460-S8
73/ F100/350 (99) Bolt - step -   1/2"-13 x 3 3/4" 384865-S40
Nut - lock - 1/2"-13 33773-S2
Nut and retainer assy.-1/2"-13 385282-S2
Bolt - 1/2"-13 x 4 3/4" truss head 385283-S40
BODY BOLT LOCATION NO. 5
73/ F100/250 (83) Nut - lock - 1/2"-13 33773-S2
Screw - rd. washer head tapping -  No. 8-18 x 1/2" 56902-S2
Screw - Phillips hd. - 1/2"-13 384913-S40
Spacer D3TZ-83107A36-B
Spacer D3TB-83107A36-A
Washer - 1/2" 351460-S8
73/ F100/350 (99) Bolt - step - 1/2"-13 x 3 3/4" 384865-S40
Nut - lock - 1/2"-13 33773-S2
BODY BOLT LOCATION NO. 6
73/ F100/250 (83) Nut - lock - 1/2"-13 33773-S2
Screw - rd. washer head tapping -  No. 8-18 x 1/2" 56902-S2
Screw - Phillips hd. - 1/2"-13 384913-540
Spacer D3TB 83107A36-B
Spacer D3TB 83107A36-A
Washer - 1/2" 351460-S8
73/ F100/350 (99) Bolt - step -   1/2"-13 x 3 3/4" 384865-540
Nut - lock - 1/2"-13 33773-S2
BODY BOLT LOCATION NO. 7
73/ F100/250 (83) Nut - lock - 1/2"-13 33773-S2
Screw - rd. washer head tapping -  No. 8-18 x 1/2" 56902-S2
Screw - Phillips hd. - 1/2"-13 384913-S40
Spacer D3TB-83107A36-B
Spacer D3TB-83107A36-A
Washer - 1/2" 351460-S8
Spacer D3TZ-83107A36-B
73/ F100/350 (99)
exc. 140" W/B		 Bolt step -   1/2"-13 x 3 3/4" 384865-S40
Nut - lock - 1/2"-13 33773-S2
73/ F350 (99)
140" W/B		 Bolt - step -   1/2"-13 x 4 1/2" 384866-S40
Nut - lock - 1/2"-13 33773-S2
BODY BOLT LOCATION NO. 8 and 9
73/ F100/250 (83) Nut - lock - 1/2"-13 33773-S2
Screw - rd. washer head tapping -  No. 8-18 x 1/2" 56902-S2
Screw - Phillips hd. - 1/2"-13 384913-S40
Spacer - R.H. D3TZ-8300131-A
Spacer - L.H. D3TZ-8300131-B
Washer - 1/2" 351460-S8

Parts identified by a black star are not available for service and must be improvised or procured locally.
