NOTE: Items listed here specifically pertain to '73-'79 Ford F100/350 trucks, but may have other applications (other Ford car/van/truck models) that are not included.

All part numbers and specifications are as reported in the 1973-1979 Ford Truck Master Parts Catalog (dated 10/79 with 4/80 updates) unless otherwise noted.

SPARE WHEEL CARRIER KIT
  73/77 F100/350 D4TZ 1440-A Front mounted
Consists of:

1 - D4TJ 1K016-AA Plate
1 - D4TJ 1A373-AB Bracket
1 - D4TJ 1A383-AB Carrier assy.
1 - D4TJ 1434-AB Bracket
1 - D4TJ 1435-AB Bracket
1 - D4TJ 1474-AA Retainer
1 - D4TJ 17A385-AA Bracket
1 - D4TJ 17N386-AB Bracket
2 - D4TJ 17K807-AB Spacer

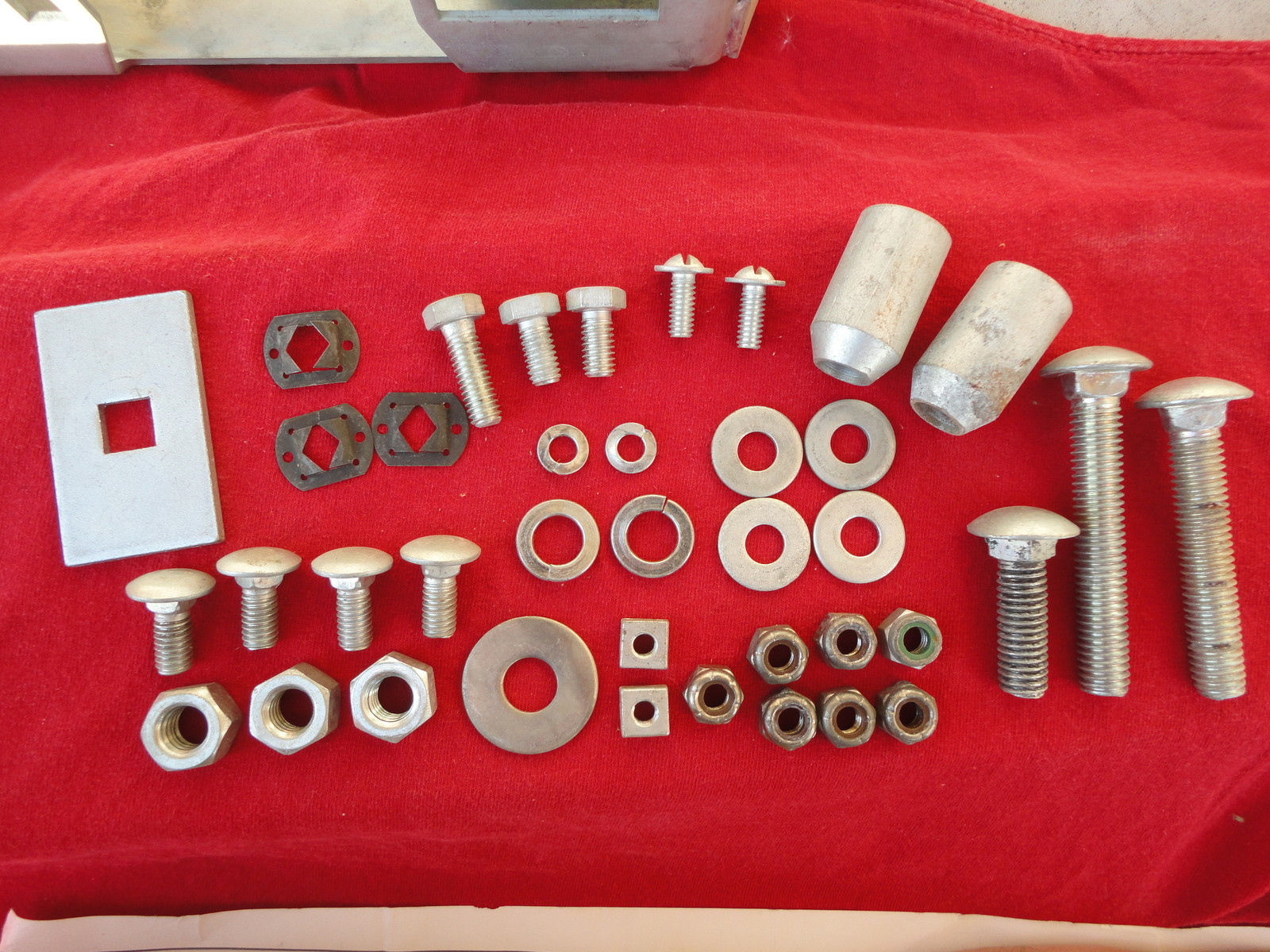

4 - Bolt - 5/16"-18
2 - Bolt-7/16"-14

 1 - Bolt - 7/16"-14
2 - Nut 14"-20
7 - Nut 5/16"-18
5 - Nut 7/16"-14
2 - Screw 14"-20
2 - Screw 5/16"-18
1 - Screw 5/16"-18
2 - Washer - lock 1/4"
4 - Washer-flat 5/16"
1 - Washer-flat 7/16"
1 - Washer-flat 7/16"

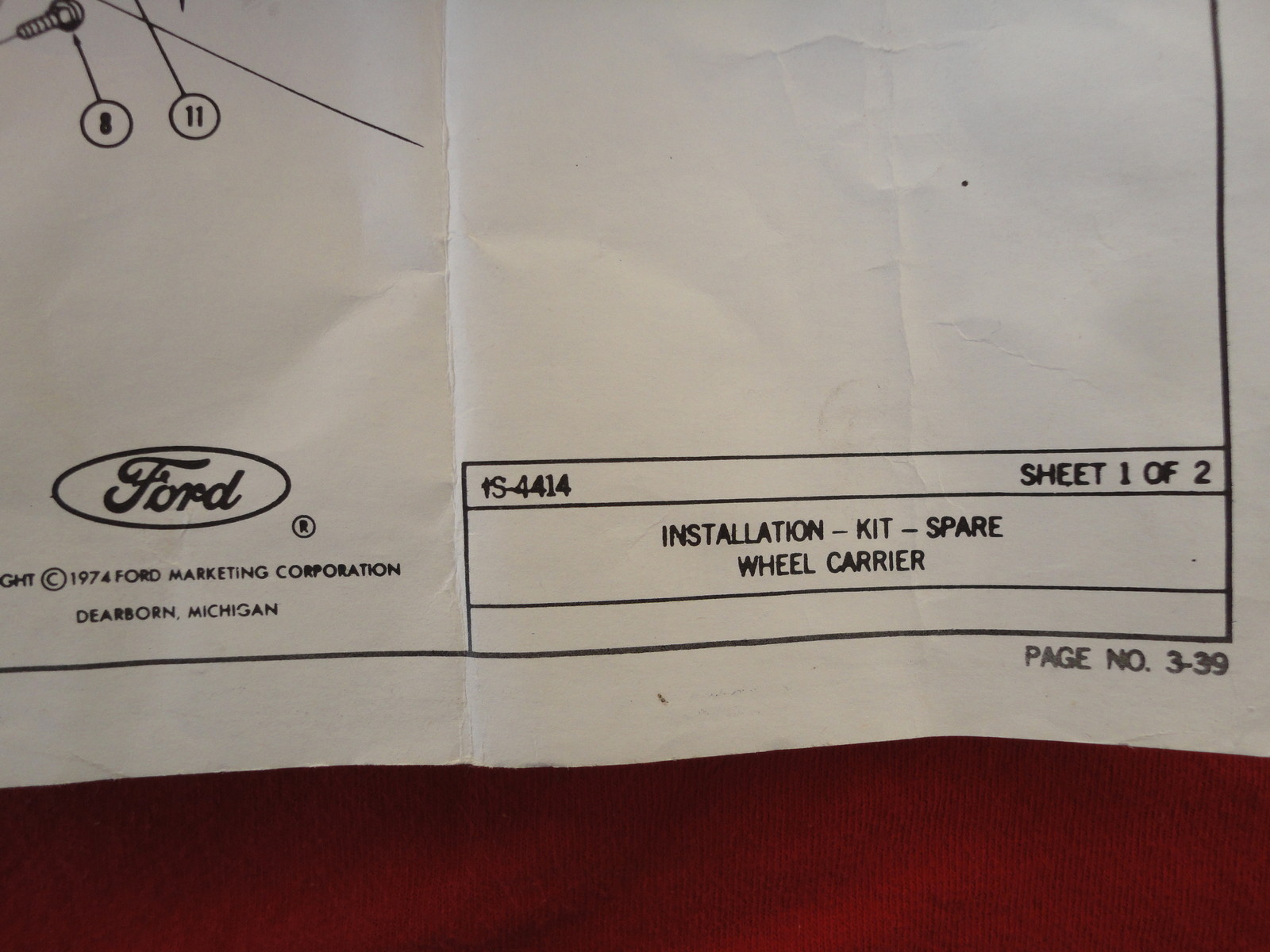

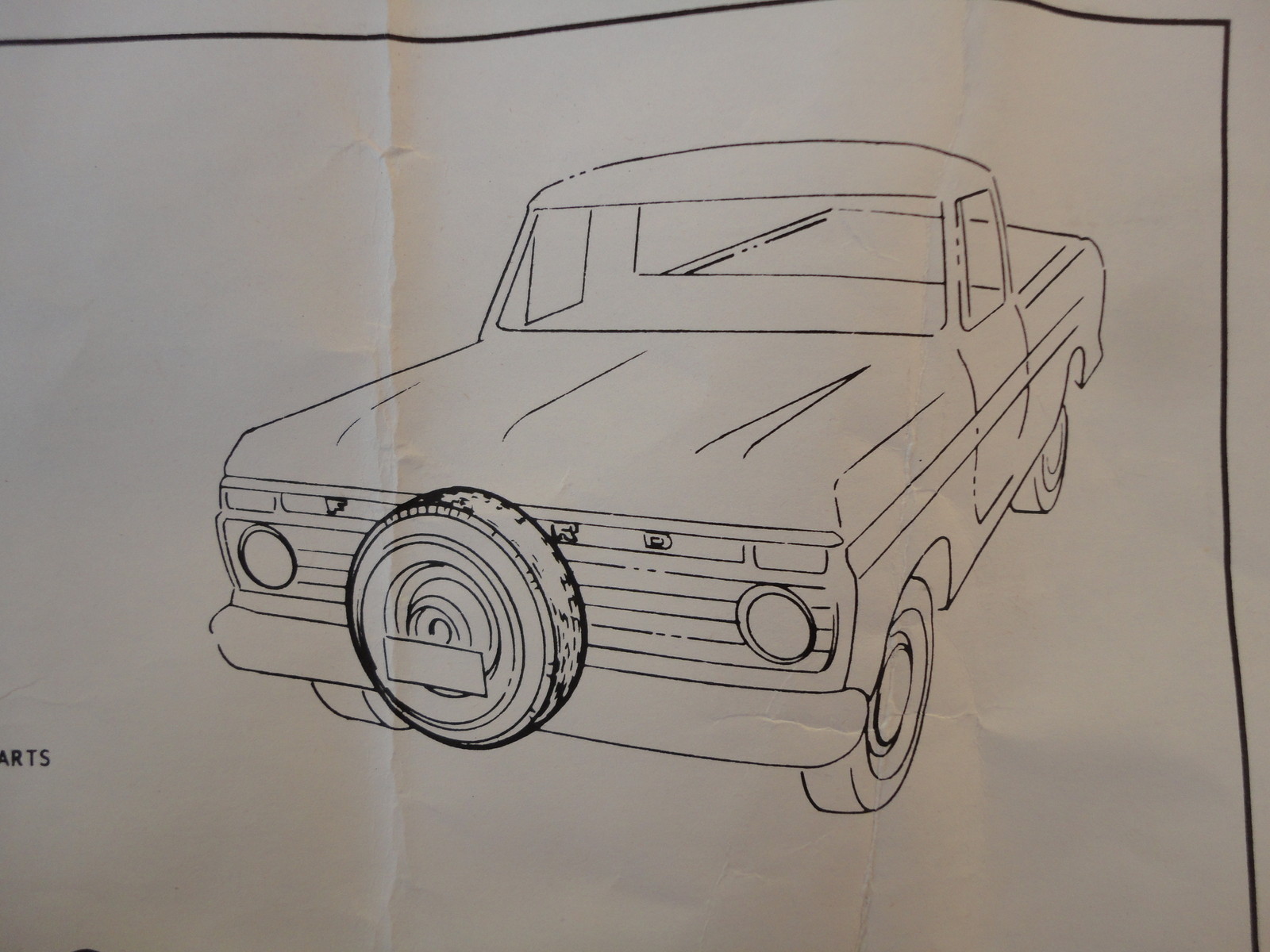

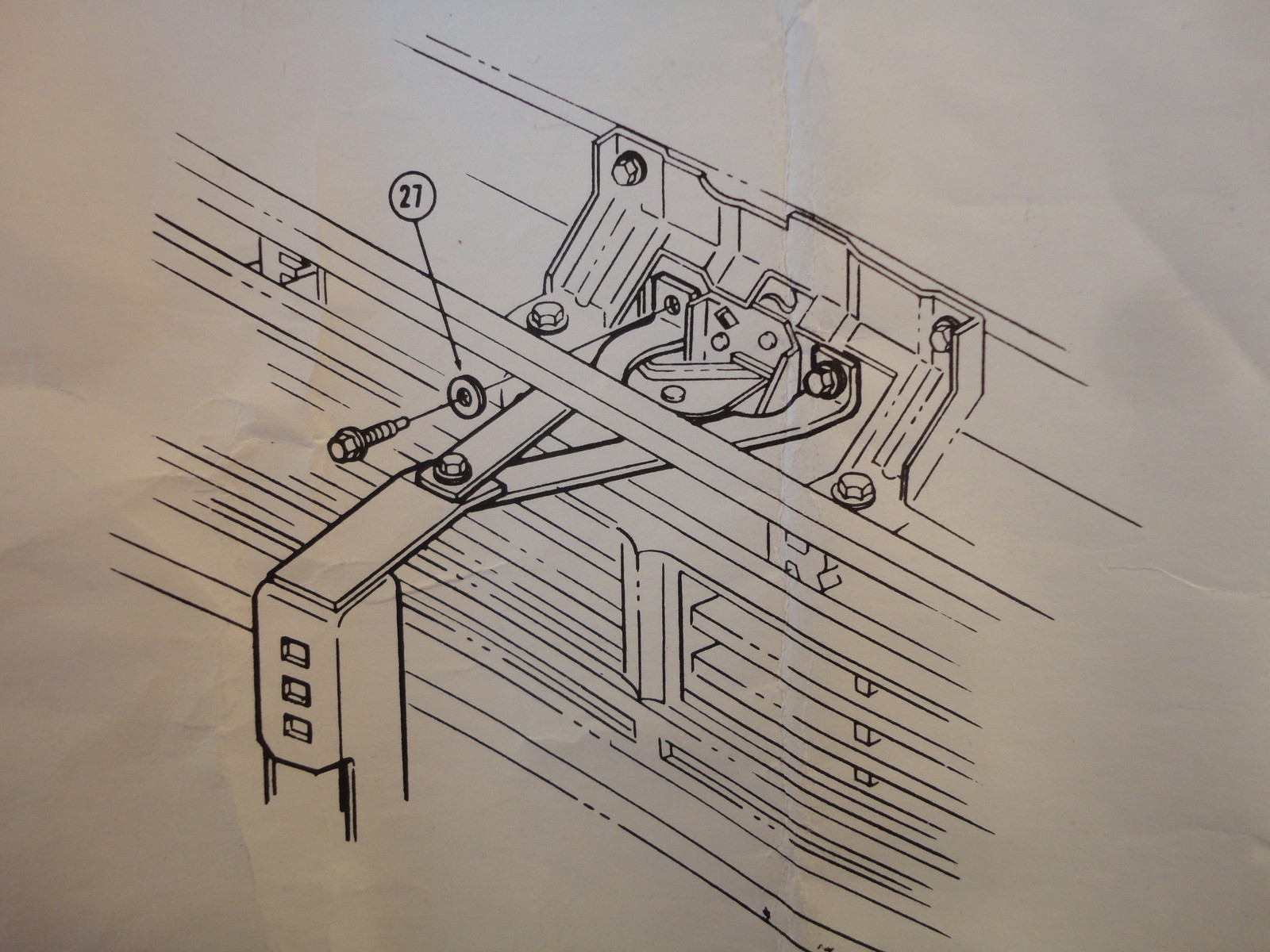

1 - Installation sketch

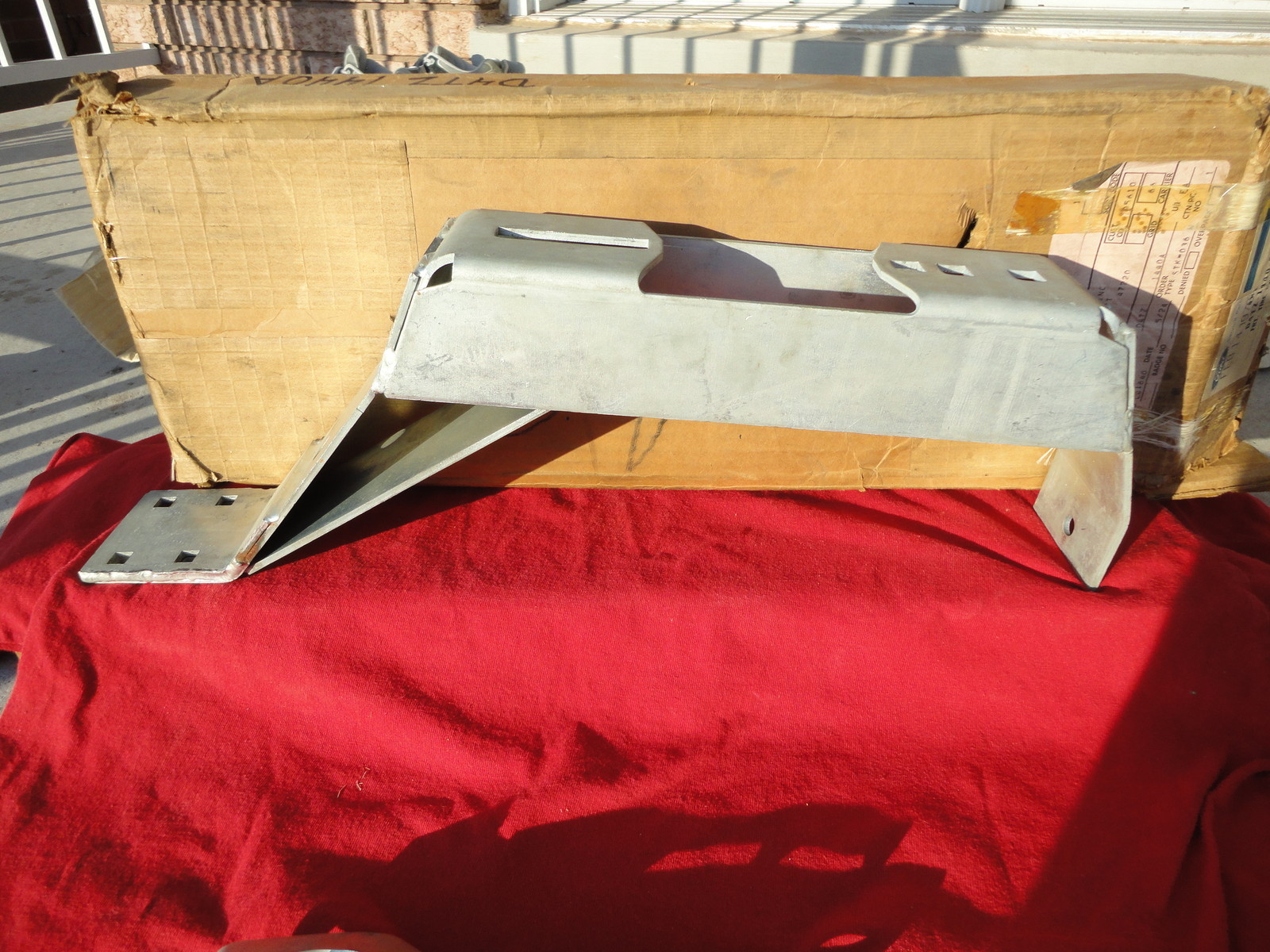

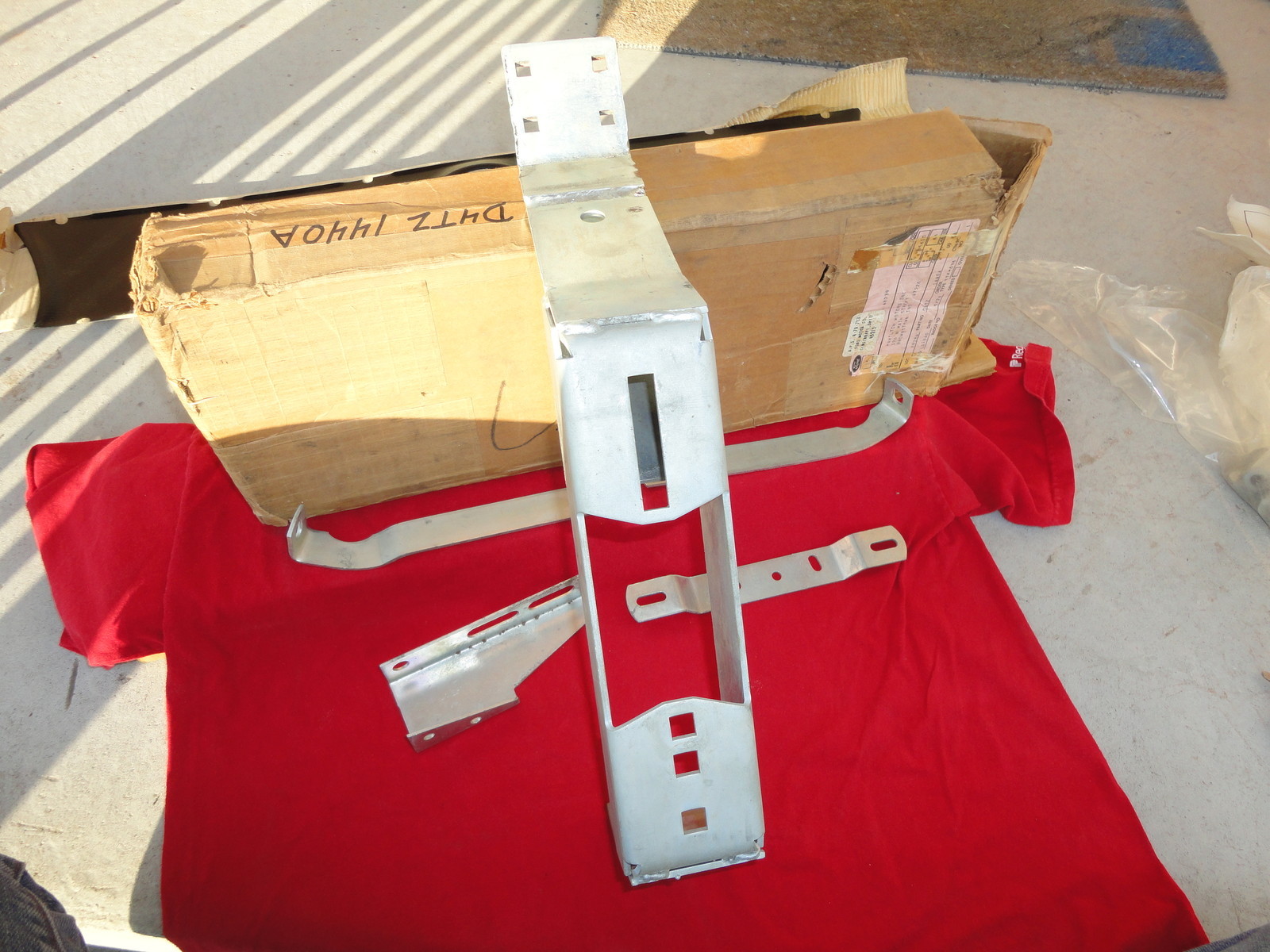

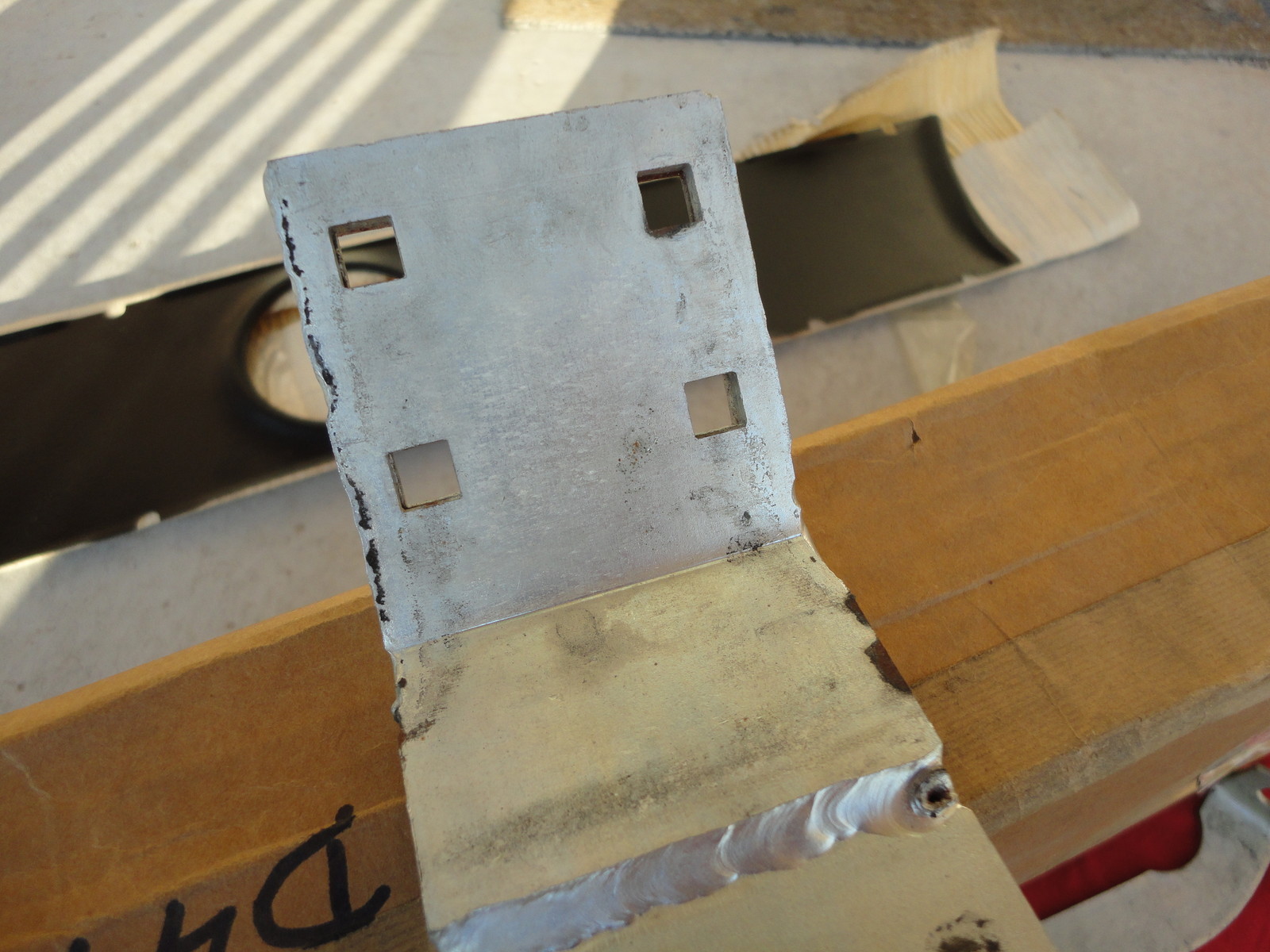

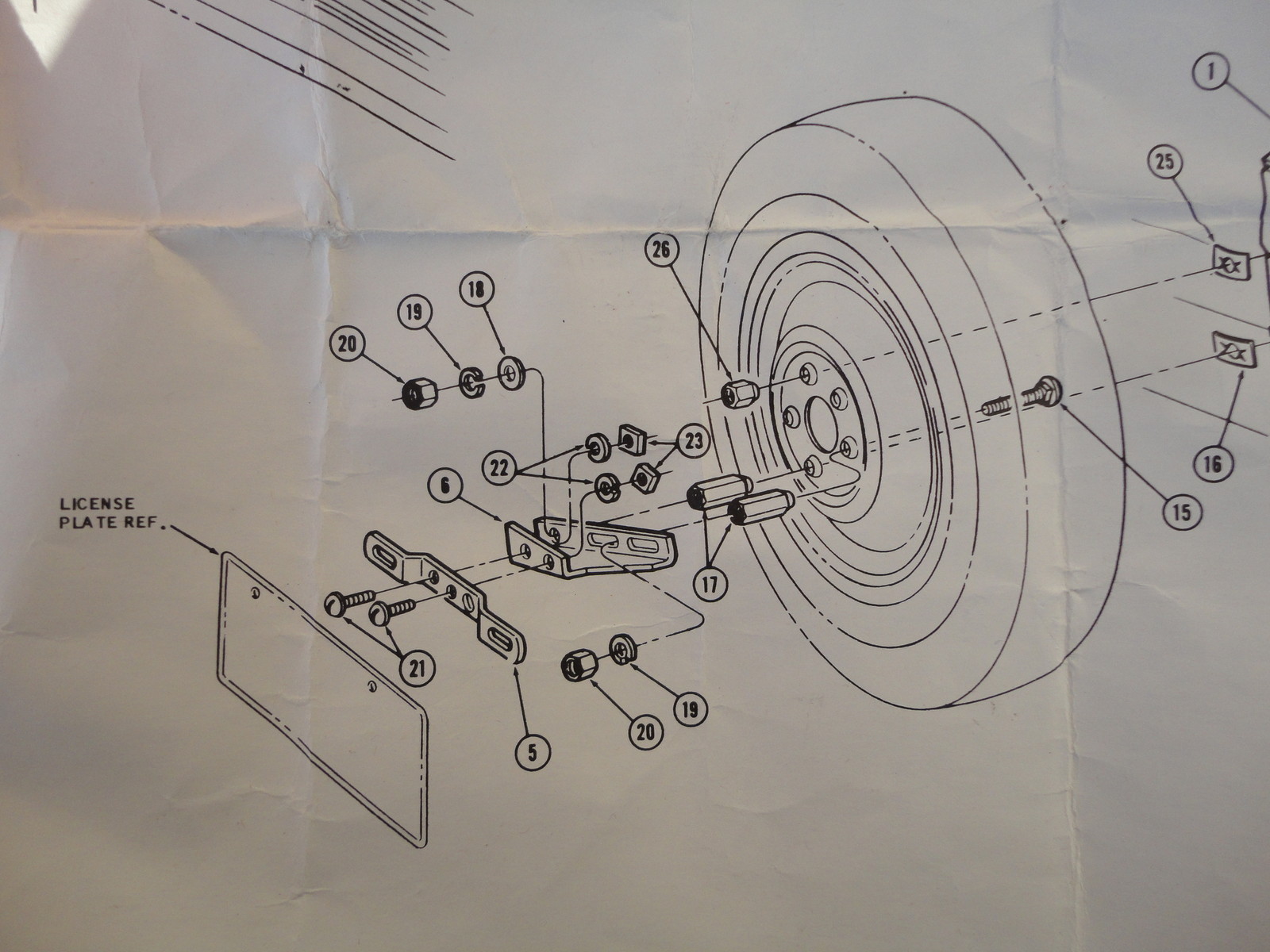

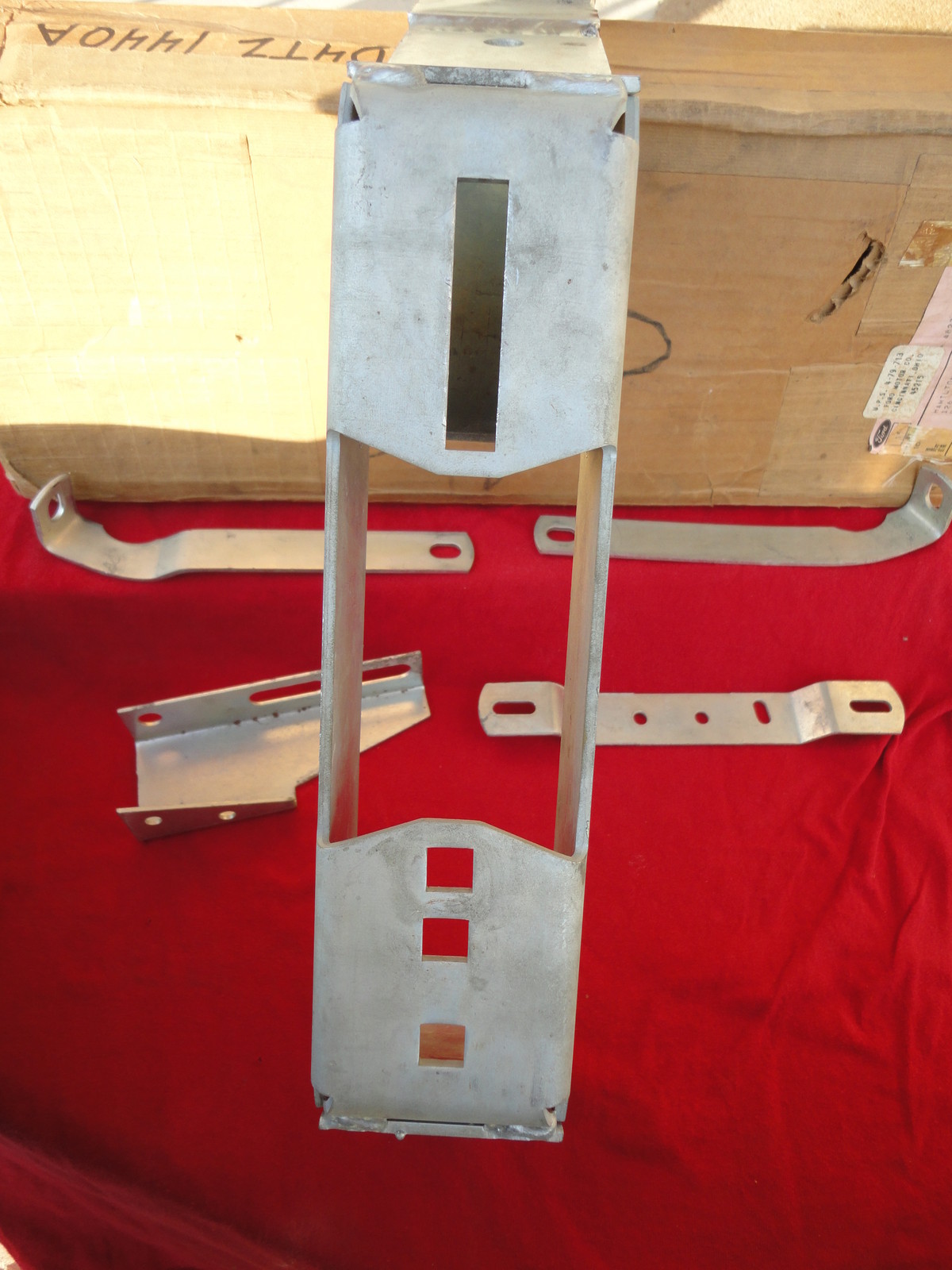

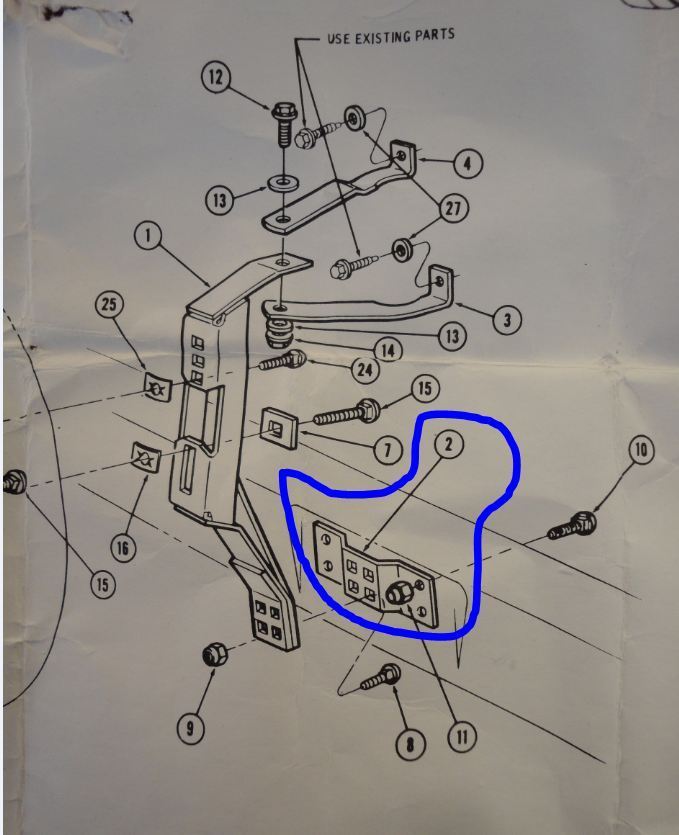

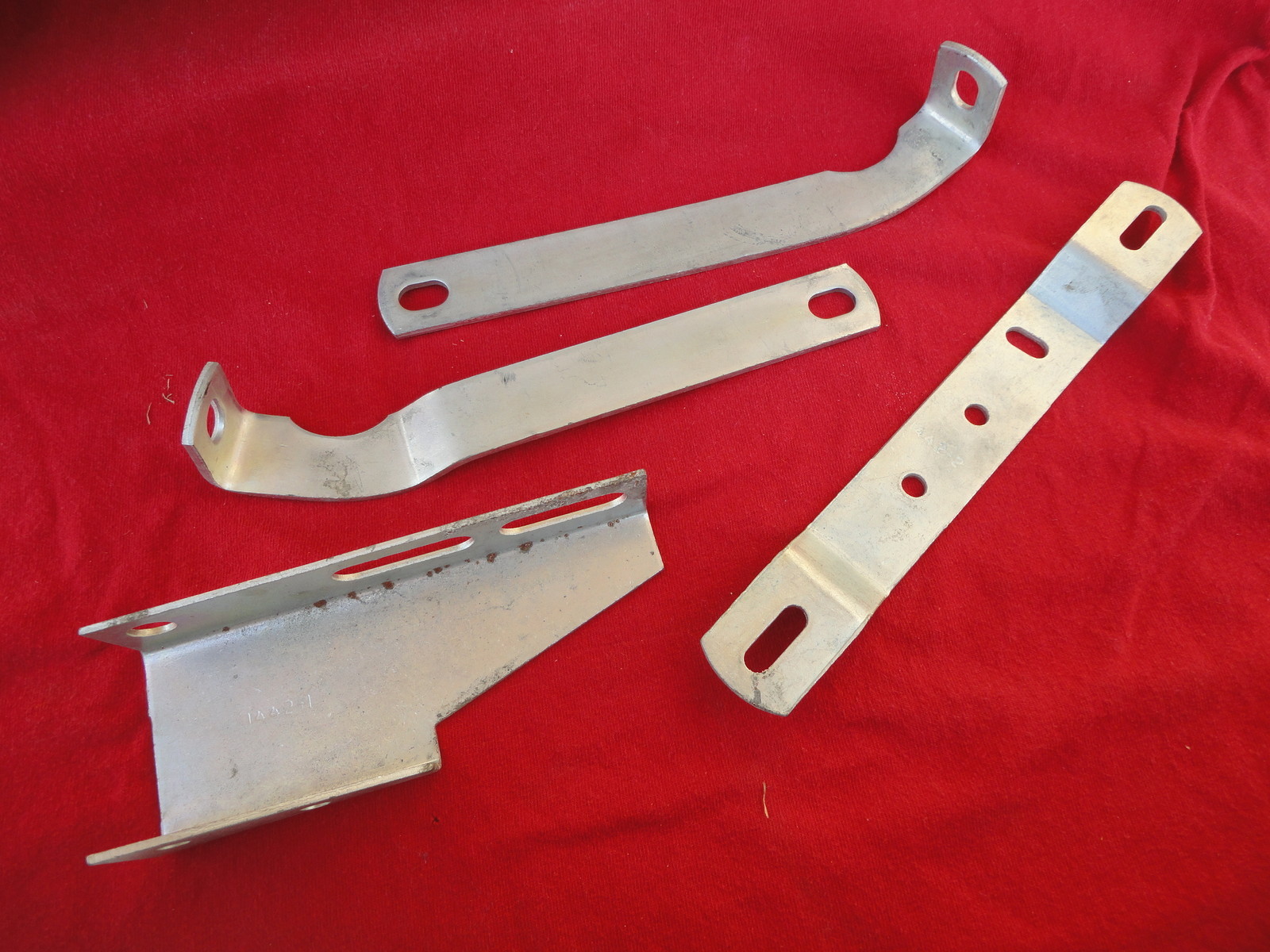

These pictures were saved from an E-bay auction listing. The seller reported that the kit was missing several pieces, and you can see in one of the following pics of the schematics where he circled the missing pieces.



Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
  a. Part is superseded and replaced as indicated in the description column of text
b. Part can be improvised as indicated in the description column of text
c. Due to it's function there would be little or no demand
