1973-1979 Ford F100/350 Stripe Options



All applications and part numbers are shown as printed in the
1973-1979 Ford Truck Master Parts Catalog (MPC) 1979 Final Edition.

Type 1 - Regular Cab

DESCRIPTION

 COLOR YEAR PART NUMBER
Complete vehicle - dual stripe black 1973 D3TZ-1020000-K
Complete vehicle - dual stripe white 1973 D3TZ-1020000-G
Complete vehicle - triple stripe black 1974 D4TZ-1020000-A
Complete vehicle - triple stripe white 1974 D4TZ-1020000-B

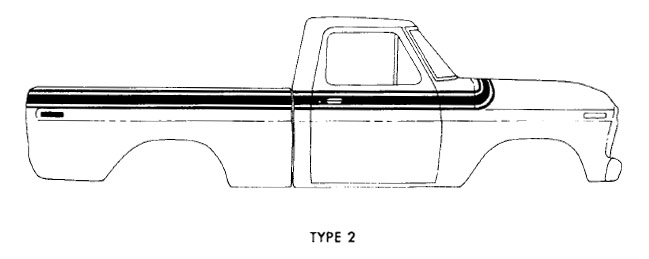

Type 2 - "Explorer" Regular Cab and Super Cab

DESCRIPTION

 COLOR YEAR PART NUMBER
Complete vehicle - cut to fit black 1975 D5TZ-1320000-E
orange 1975 D5TZ-1320000-D
white 1975 D5TZ-1320000-B
yellow 1975 D5TZ-1320000-C

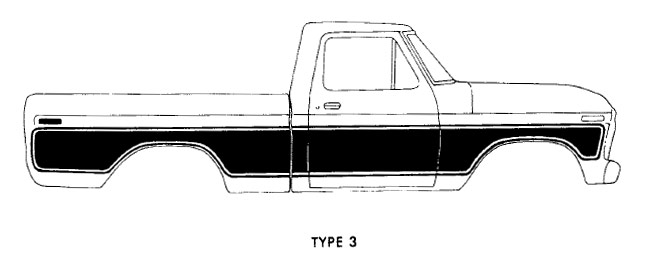

Type 3 - Crew Cab

DESCRIPTION

 COLOR YEAR PART NUMBER
Complete cab - exc. center body pillar and rear door white 1975/76 D5TZ-1320000-A
Center body pillar and rear door only white 1975/76 D6TZ-2520000-A
6-3/4' box - complete white 1975/76 D5TZ-9920000-D
8' box - w/tool storage compartment - complete white 1975/76 D5TZ-9920000-B
8' box - w/o tool storage compartment - complete white 1975/76 D5TZ-9920000-C

Type 3 - Regular Cab
Complete cab white 1974/76 D5TZ-1020000-E
6-3/4' box - complete white 1974/76 D5TZ-9920000-D
8' box - 140" W/B - w/ tool storage compartment - complete white 1975/76 D5TZ-9920000-B
8' box - 133" W/B - w/o tool storage compartment - complete white 1975/76 D5TZ-9920000-C

Type 3 - Super Cab
Complete cab white 1975/76 D5TZ-1320000-A
6-3/4' box - complete white 1975/76 D5TZ-9920000-D
8' box - 140" W/B - w/ tool storage compartment - complete white 1975/76 D5TZ-9920000-B
8' box - 133" W/B - w/o tool storage compartment - complete white 1975/76 D5TZ-9920000-C

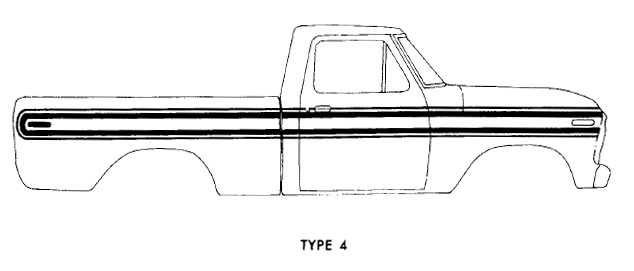

Type 4 - Crew Cab

DESCRIPTION

 COLOR YEAR PART NUMBER
Complete vehicle exc. center body pillar and rear door black 1973/79 D5TZ-1020000-K
green 1973/79 D3TZ-1020000-P
orange 1975 D5TZ-1020000-J
red 1979 D9TZ-1020000-AD
white 1973/79 D5TZ-1020000-H
yellow 1973/74 D3TZ-1020000-N
yellow 1979 D9TZ-1020000-AV

Center body pillar and rear door only

 black 1973/79 D3TZ-2520000-A
green 1973/74 D3TZ-2520000-E
orange 1973/79 D3TZ-2520000-D
red 1979 D9TZ-1020000-AD
white 1973/79 D3TZ-2520000-B
yellow 1973/74 D3TZ-2520000-C
yellow 1979 D9TZ-1020000-AV

Type 4 - Regular Cab
F100/350 - complete vehicle black 1973/79 D5TZ-1020000-K
blue 1973/79 D5TZ-1020000-G
green 1973/74 D5TZ-1020000-P
jade 1977/79 D7TZ-1020000-A
lime 1975 D5TZ-1020000-C
lime 1975/79 D5TZ-1020000-F
orange 1975/79 D5TZ-1020000-J
red 1979  D9TZ-1020000-AD
white 1973/79 D5TZ-1020000-H
yellow 1973/74  D3TZ-1020000-N
yellow 1979 D9TZ-1020000-AV

Type 4 - Super Cab
Complete vehicle black 1974 D4TZ-1320000-E
black 1975/79 D5TZ-1020000-K
green 1974 D4TZ-1320000-A
orange 1975/79 D5TZ-1020000-J
white 1974/79 D5TZ-1320000-H
yellow 1974 D4TZ-1320000-D
(PN obsolete - not replaced)
yellow 1979 D9TZ-1020000-AV
blue 1975/79 D5TZ-1020000-G
jade 1977/79 D7TZ-1020000-A
lime 1975/78 D5TZ-1020000-F
red 1979 D9TZ-1020000-AD

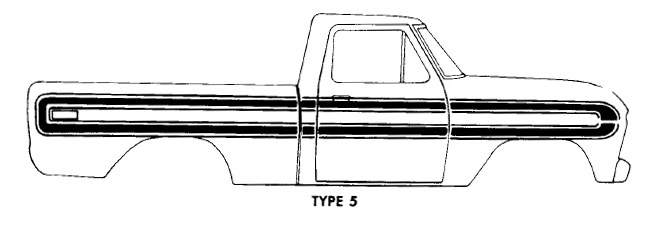

Type 5 - Regular Cab (exc. "Explorer")

DESCRIPTION

 COLOR YEAR PART NUMBER
Complete cab blue/orange 1979 D9TZ-1020000-CB
red/orange 1979 D9TZ-1020000-CD
sand/orange 1979 D9TZ-1020000-CL
white/orange 1979 D9TZ-1020000-CW

Complete box- w/aux. fuel tank -
"Before Ser. DJ0000"		 blue/orange 1979 D9TZ-9920000-LB
red/orange 1979 D9TZ-9920000-LD
sand/orange 1979 D9TZ-9920000-LL
white/orange 1979 D9TZ-9920000-LW
"From Ser DJ00000" blue/orange 1979 D9TZ-9920000-NB
red/orange 1979 D9TZ-99S0000-ND
sand/orange 1979 D9TZ-9920000-NL
white/orange 1979 D9TZ-9920000-NW

Complete box - w/o aux. fuel tank -
"Before Ser. DJ0000		 blue/orange 1979 D9TZ-9920000-MB
red/orange 1979 D9TZ-9920000-MD
sand/orange 1979 D9TZ-9920000-ML
white/orange 1979 D9TZ-9920000-MW
"From Ser DJ0000" blue/orange 1979 D9TZ-9920000-PB
red/orange 1979 D9TZ-9920000-PD
sand/orange 1979 D9TZ-9920000-PL
white/orange 1979 D9TZ-9920000-PW

Type 5 - "EXPLORER" REGULAR CAB - 116" and 133" W/B
Consists of die cut sections for fender, hood,
door upper, quarter panel rear, and back panel		 black 1976 ♦D6TZ-1020000-N
tan 1976 ♦D6TZ-1020000-T
white 1976 ♦D6TZ-1020000-U
Upper - 2" wide x 25' roll black 1976 ♦D6TZ-1020000-A
tan 1976 ♦D6TZ-1020000-E
white 1976 ♦D6TZ-1020000-F
Lower - 3" wide x 25' roll black 1976 ♦D6TZ-1020000-G
tan 1976 ♦D6TZ-1020000-L
white 1976 ♦D6TZ-1020000-M

Type 5 - "EXPLORER" REGULAR CAB - 140" W/B
Consists of complete cab and die cut sections and box
except upper box stripe		 black 1976 ♦D6TZ-1020000-AB
tan 1976 ♦D6TZ-1020000-AF
white 1976 ♦D6TZ-1020000-AG
Upper - 2" wide x 25' roll black 1976 ♦D6TZ-1020000-A
tan 1976 ♦D6TZ-1020000-E
white 1976 ♦D6TZ-1020000-F

Type 5 - "EXPLORER" SUPER CAB - 136" and 155" W/B
Consists of die cut sections for fender, hood,
door upper, quarter panel rear, and back panel		 black 1976 ♦D6TZ-1020000-V
tan 1976 ♦D6TZ-1020000-Z
white 1976 ♦D6TZ-1020000-AA
Upper - 2" wide x 25' roll black 1976 ♦D6TZ-1020000-A
tan 1976 ♦D6TZ-1020000-E
white 1976 ♦D6TZ-1020000-F
Lower - 3" wide x 25’ roll black 1976 ♦D6TZ-1020000-G
tan 1976 ♦D6TZ-1020000-L
white 1976 ♦D6TZ-1020000-M
♦ Includes attaching parts

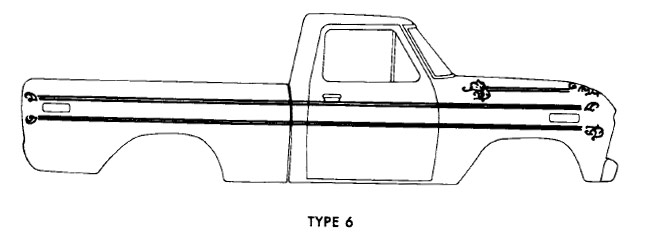

TYPE 6 - Regular Cab

DESCRIPTION

 COLOR YEAR PART NUMBER
Consists of scroll ends, hood, fender and quarter panel rear brown 1976/77 ♦D6TZ 1020000-AH
Bulk tape - 3/4" x 25’ roll brown 1976/77

♦D6TZ 1020000-AJ
♦ Includes attaching parts

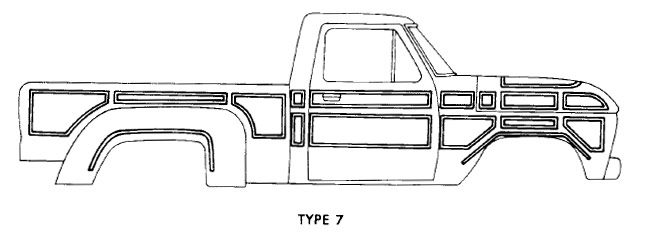

TYPE 7 - Regular Cab w/Flareside 6-3/4' box

DESCRIPTION

 COLOR YEAR PART NUMBER
Consists of hood, tailgate and body side - complete black 1976/78 D6TZ 8320000-AA
gold 1976/78 D6TZ 8320000-AY
white   D6TZ 8320000-AW

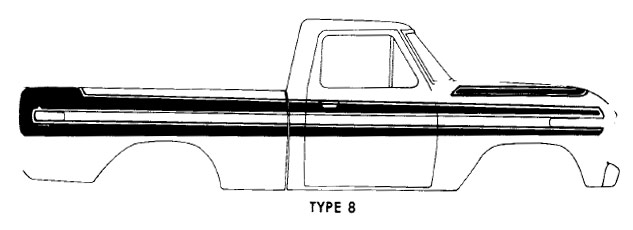

Type 8 - "Explorer" Regular and Super Cab

DESCRIPTION

 COLOR YEAR PART NUMBER
Consists of hood, fender and door - upper and lower blue 1977 D7TZ 1020000-AB
red 1977 D7TZ 1020000-AD
tan 1977 D7TZ 1020000-AU
white 1977

D7TZ 1020000-AW
Consists of back panel upper and lower blue 1977 D7TZ 1320000-AB
red 1977 D7TZ 1320000-AD
tan 1977 D7TZ 1320000-AU
white 1977

D7TZ 1320000-AW

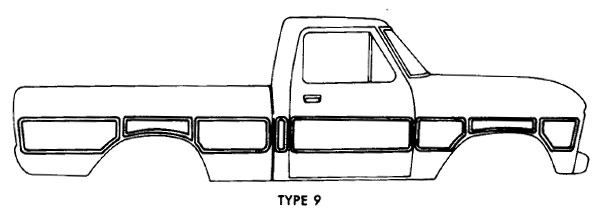

Type 9 - Regular Cab

DESCRIPTION

 COLOR YEAR PART NUMBER
Cab - complete yellow/orange/plum/light/dark red 1977/79 D7TZ 1020000-CV
6 ft. box - complete yellow/orange/plum/light/dark red 1977/79 D7TT 9920000-CV
8 ft. box - complete yellow/orange/plum/light/dark red 1977/79 D7TZ 9920000-EV

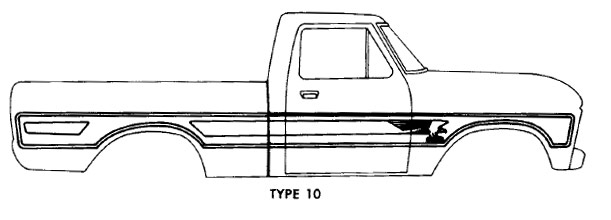

Type 10 - Regular Cab and Super Cab

DESCRIPTION

 COLOR YEAR PART NUMBER
Complete cab black/blue/gold/red/white 1976 D6TZ 1320000-A
6 3/4’ box - complete black/blue/gold/red/white 1976 D6TZ 9920000-C
8' box - w/tool storage compt. - complete black/blue/gold/red/white 1976 D6TZ 9920000-A
8' box - w/o tool storage compt. - complete black/blue/gold/red/white 1976 D6TZ 9920000-B

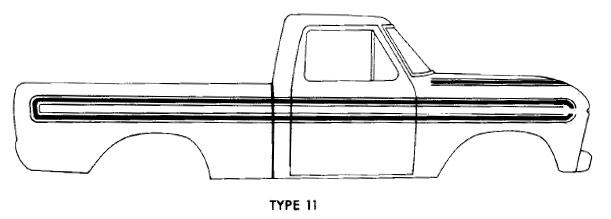

Type 11 - "Explorer" Regular and Super Cab

DESCRIPTION

 COLOR YEAR PART NUMBER
Consists of hood, fender, door and back panel chamois/orange 1978 D8TZ 1320000-AT
chartruse/green 1978 D8TZ 1320000-AG
silver/black 1978 D8TZ 1320000-AP
6 ft. box - complete chamois/orange 1978 D8TZ 9920000-AT
chartruse/green 1978 D8TZ 9920000-AG
silver/black 1978 D8TZ 9920000-AP
8 ft. box-complete Regular Cab - 133" W/B Super Cab - 155 "W/B chamois/orange 1978 D8TZ 9920000-BT
chartruse/green 1978 D8TZ 9920000-BG
silver/black 1978 D8TZ 9920000-BP
Box - complete Camper Special - 140" W/B chamois/orange 1978 D8TZ 9920000-ET
chartruse/green 1978 D8TZ 9920000-EG
silver/black 1978 D8TZ 9920000-EP

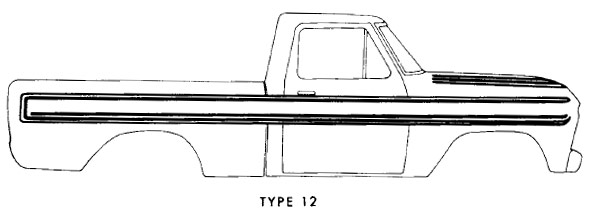

Type 12 - "Explorer"

DESCRIPTION

 COLOR YEAR PART NUMBER
For units built at other than Michigan Truck Plant
Regular cab - Consists of hood, upper and
lower fender doors and back panel		 tangerine/gold 1979 D9TZ 1020000-DE
white/gold 1979 D9TZ 1020000-DW
Super cab - Consists of hood, upper and
lower fender door and back panel		 tangerine/gold 1979 D9TZ 1320000-AE
white/gold 1979 D9TZ 1320000-AW
6 ft. box w/o aux. fuel tank tangerine/gold 1979 D9TZ 9920000-KE
white/gold 1979 D9TZ 9920000-KW
6 ft. box w/aux. fuel tank tangerine/gold 1979 D9TZ 9920000-FE
white/gold 1979 D9TZ 9920000-FW
8 ft. box w/o aux. fuel tank and spare wheel cover panel tangerine/gold 1979 D9TZ 9920000-GA
white/gold 1979 D9TZ 9920000-GW
8 ft. box w/aux. fuel tank w/o spare wheel cover panel tangerine/gold 1979 D9TZ 9920000-HE
white/gold 1979 D9TZ 9920000-HW
For units built at Detroit Truck Plant
Regular cab - Consists of hood, upper and
lower fender doors and back panel 		tangerine/gold   D9TZ 1020000-ADE
white/gold   D9TZ 1020000-ADW
6 ft. box w/o aux. fuel tank tangerine/gold   D9TZ 9920000-AKE
white/gold   D9TZ 9920000-AKW
6 ft. box w/aux. fuel tank tangerine/gold   D9TZ 9920000-AFE
white/gold   D9TZ 9920000-AFW
8 ft. box w/o aux. fuel tank and spare wheel cover panel tangerine/gold   D9TZ 9920000-AGE
white/gold   D9TZ 9920000-AGW
8 ft. box w/aux. fuel tank w/o spare wheel cover panel tangerine/gold   D9TZ 9920000-AHE
white/gold   D9TZ 9920000-AHW

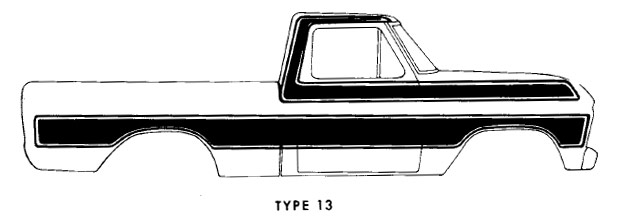

Type 13 - Regular Cab

DESCRIPTION

 COLOR YEAR PART NUMBER
Partial cab - Consists of hood, cowl,
door and corner panel upper		 yellow, black and orange-red 1979 D9TZ 1020000-EV
Partial cab - Consists of fender, door
and corner panel lower		 yellow, black and orange-red 1979 D9TZ 1020000-FV
6 ft. box w/o aux. fuel tank yellow, black and orange-red 1979 D9TZ 9920000-CV
6 ft. box w/aux. fuel tank yellow, black and orange-red 1979 D9TZ 9920000-DV
8 ft. box w/o aux. fuel tank yellow, black and orange-red 1979 D9TZ 9920000-AV
8 ft. box w/aux. fuel tank yellow, black and orange-red 1979 D9TZ 9920000-BV

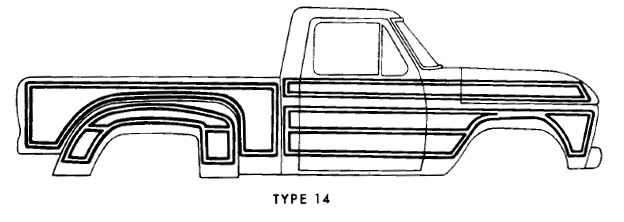

Type 14 - Regular Cab w/Flareside bed

DESCRIPTION

 COLOR YEAR PART NUMBER
Consists of complete box and and cab black 1979 D9TZ 1020000-AA
orange 1979 D9TZ 1020000-AC
white 1979 D9TZ 1020000-AW

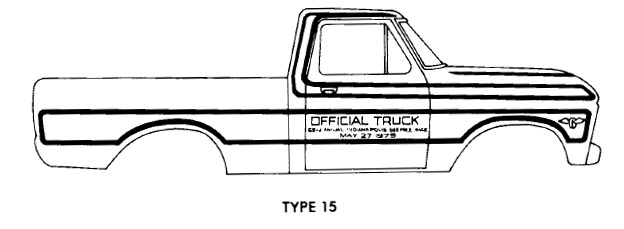

Type 15 - Regular Cab

DESCRIPTION

 COLOR YEAR PART NUMBER
Emblem (frt. fender) and Indy 500 I.D. on door orange/black 1979 D9TZ 1020000-RA
Less fender emblem and Indy 500 I.D.
Cab and 6 ft. box		 orange/red/black 1979 D9TZ 9920000-NA
Cab and 8 ft. box orange/red/black 1979 D9TZ 9920000-PA
