D4TZ-17696-A



NOTE: Items listed here generally pertain to '73-'79 Ford F100/350 trucks, but may have other applications (other Ford car/van/truck models) that are not included.

All part numbers and specifications are as reported in the 1973-1979 Ford Truck Master Parts Catalog (dated 10/79 with 4/80 updates) unless otherwise noted.

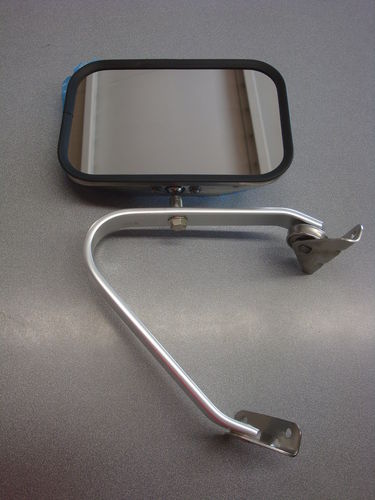

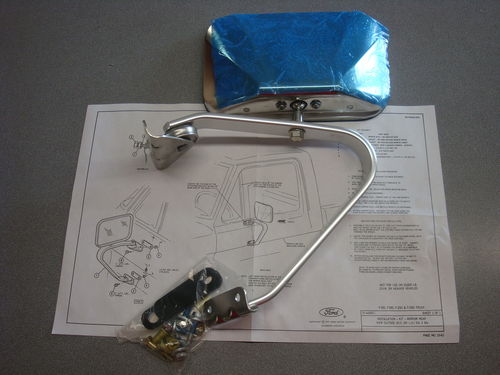

MIRROR (REAR VIEW OUTSIDE)
  73-79 F100/350


 		 D4TZ-17696-A Not for use on vehicles w/10,000 G.V.W lbs. or more

R.H. and L.H. - 5" 1/4" x 8 1/4" - stainless includes flat upper and lower mounting brackets

- upper brkt. has (2) mtg. holes on 2-3/4" bolt center
- lower brkt. has (2) mtg. holes on 2" bolt center
- 17713 arm has 7 19/32" span

RELATED LINKS:
Outside Rear View Mirrors & Related Parts
Outside Mirror Kit Components




Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
  a. Part is superseded and replaced as indicated in the description column of text
b. Part can be improvised as indicated in the description column of text
c. Due to it's function there would be little or no demand
